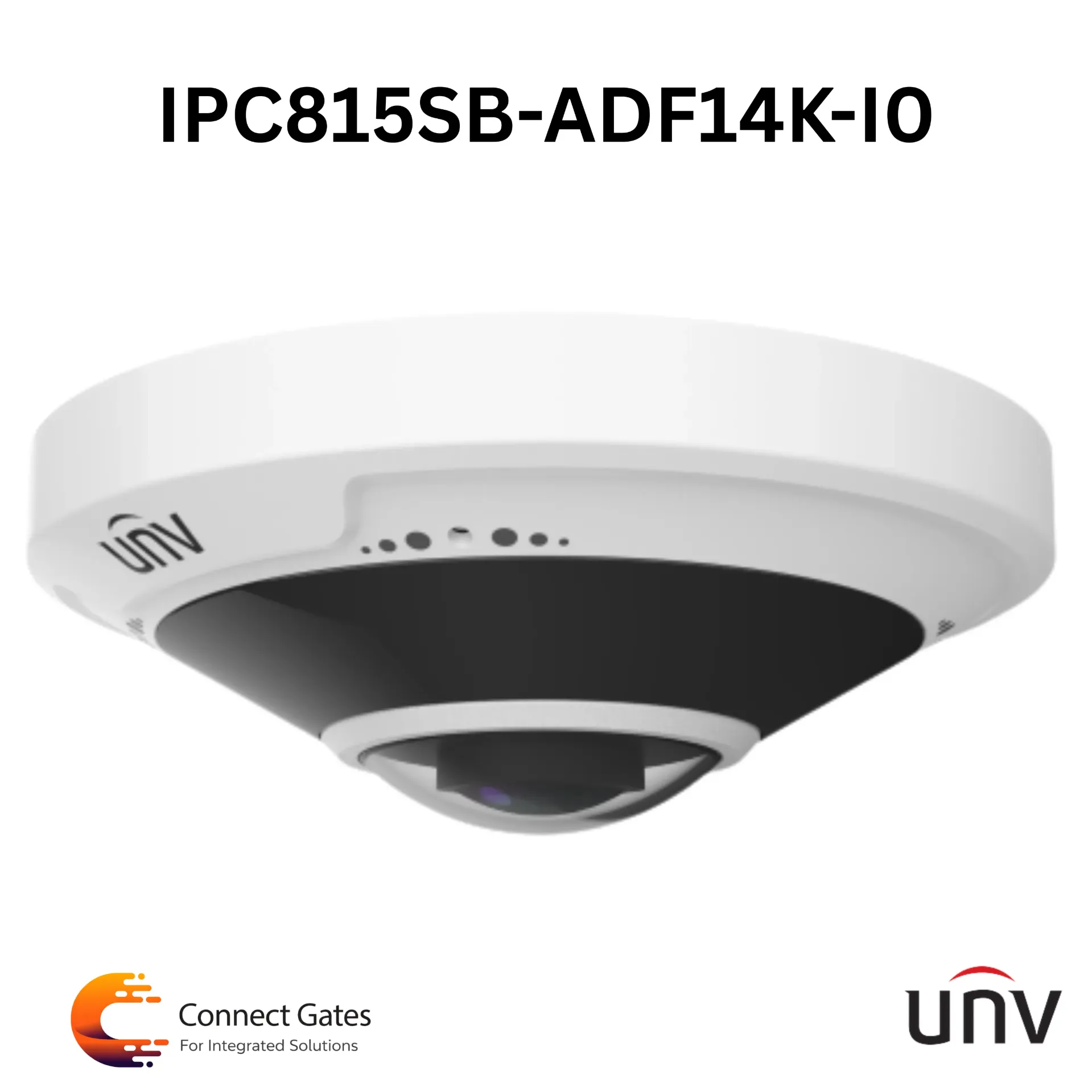

Uniview UV-IPC815SB-ADF14K-I0 – 5MP Fisheye IP Camera
Overview:
The Uniview UV-IPC815SB-ADF14K-I0 is a 5MP Fisheye IP Camera from the Uniview Prime range, designed to provide wide 360° panoramic surveillance using a 1.4mm fisheye lens. It features a 1/2.8" Progressive Scan CMOS sensor, 120 dB WDR, IR range up to 10m, dual integrated microphones, alarm interface, MicroSD card recording up to 256GB, PoE support, and strong IP66 / IK10 protection for weatherproof and vandal-resistant installations.
Key Features:
5MP fisheye IP camera
1/2.8" Progressive Scan CMOS sensor
2592 × 1944 maximum resolution
1.4mm fisheye lens
360° panoramic view
Main stream up to 30fps
Ultra265, H.265 and H.264 compression
IR range up to 10m
120 dB WDR
BLC, HLC, AGC and 2D/3D noise reduction
Motion detection, ROI and Privacy Mask
Smart IR support
Mechanical IR-cut filter
2 integrated microphones
Alarm 1 input / 1 relay output
MicroSD card recording up to 256GB
ONVIF compatible
PoE IEEE 802.3af / DC12V
IP66 weatherproof protection
IK10 vandal-resistant protection
Technical Specifications:
Brand: Uniview
Model: UV-IPC815SB-ADF14K-I0
Camera Type: Fisheye IP Camera
Range: Prime
Image Sensor: 1/2.8" Progressive Scan CMOS
Resolution: 5MP
Maximum Resolution: 2592 × 1944
Lens: 1.4mm Fisheye
Viewing Angle: 360°
Minimum Illumination: 0.01 Lux Color, 0 Lux with IR
IR Distance: Up to 10m
Day/Night: Mechanical ICR Filter
WDR: 120 dB
Image Enhancement: BLC, HLC, AGC, 2D/3D-NR, Smart IR
Video Compression: Ultra265, H.265, H.264
Main Stream: 5MP, 1–30fps
Extra Stream: 1080p, 1–30fps
Third Stream: D1, 1–30fps
Detection: Motion Detection
Video Functions: ROI, Privacy Mask
Audio: 2 × Integrated Microphone
Alarm: 1 Input / 1 Relay
Storage: MicroSD card up to 256GB
Network Interface: RJ45 10/100 Base-T Ethernet
Remote Access: Web Browser, EZStation, EZView, EZLive
Integration: ONVIF Compatible
Power Supply: DC12V / PoE IEEE 802.3af
Power Consumption: 8.5W
Protection: IP66, IK10
Operating Temperature: -40°C to 60°C
Dimensions: 44mm depth × Ø125mm
Weight: 360g
Applications:
Reception areas
Retail stores
Offices
Small halls
Meeting rooms
Warehouses
Indoor open areas
360° monitoring points
Sites requiring panoramic coverage with fewer cameras
Connect Gates Recommendation:
Recommended for projects that require wide-area panoramic monitoring from a single camera point. The 5MP fisheye lens, 360° view, dual microphones, WDR, MicroSD recording, and IP66 / IK10 protection make this model suitable for reception areas, stores, offices, halls, and open spaces where reducing blind spots is important.
