D-Link DV-700 – D-View 7 Network Management System with SNMP Monitoring, Auto-Discovery, Dashboard, Topology View & Multi-Device Configuration

• The D-Link DV-700 is the D-View 7 Network Management System, a comprehensive standards-based software tool designed to centrally manage and monitor network infrastructure.

• It helps administrators manage critical network characteristics such as availability, reliability, resilience, and security from one centralized platform.

• D-View 7 uses web-based technology, allowing access to the management toolbox without installing software on each client device.

• The system is built on a server-probe architecture, making it suitable for complex networks, remote sites, devices behind NAT, and locations where direct SNMP access may not be available.

• It supports SNMP v1, v2c, and v3, device auto-discovery, scheduled tasks, event notifications, syslog collection, SNMP trap collection, and batch configuration.

• The platform also supports third-party device management by identifying devices based on SOID and managing them using CLI scripts.

• Centralized network management system.

• Web-based management interface.

• Server and probe architecture for flexible deployment.

• Supports management of remote sites, NAT environments, and devices behind firewalls without VPN.

• Supports SNMP v1, v2c, and v3.

• Device auto-discovery and smart scan by neighborhood.

• Supports IPv4 address range scan.

• Supports LLDP and FDB-based link discovery.

• Auto-generated network topology.

• Real-time device status on topology view.

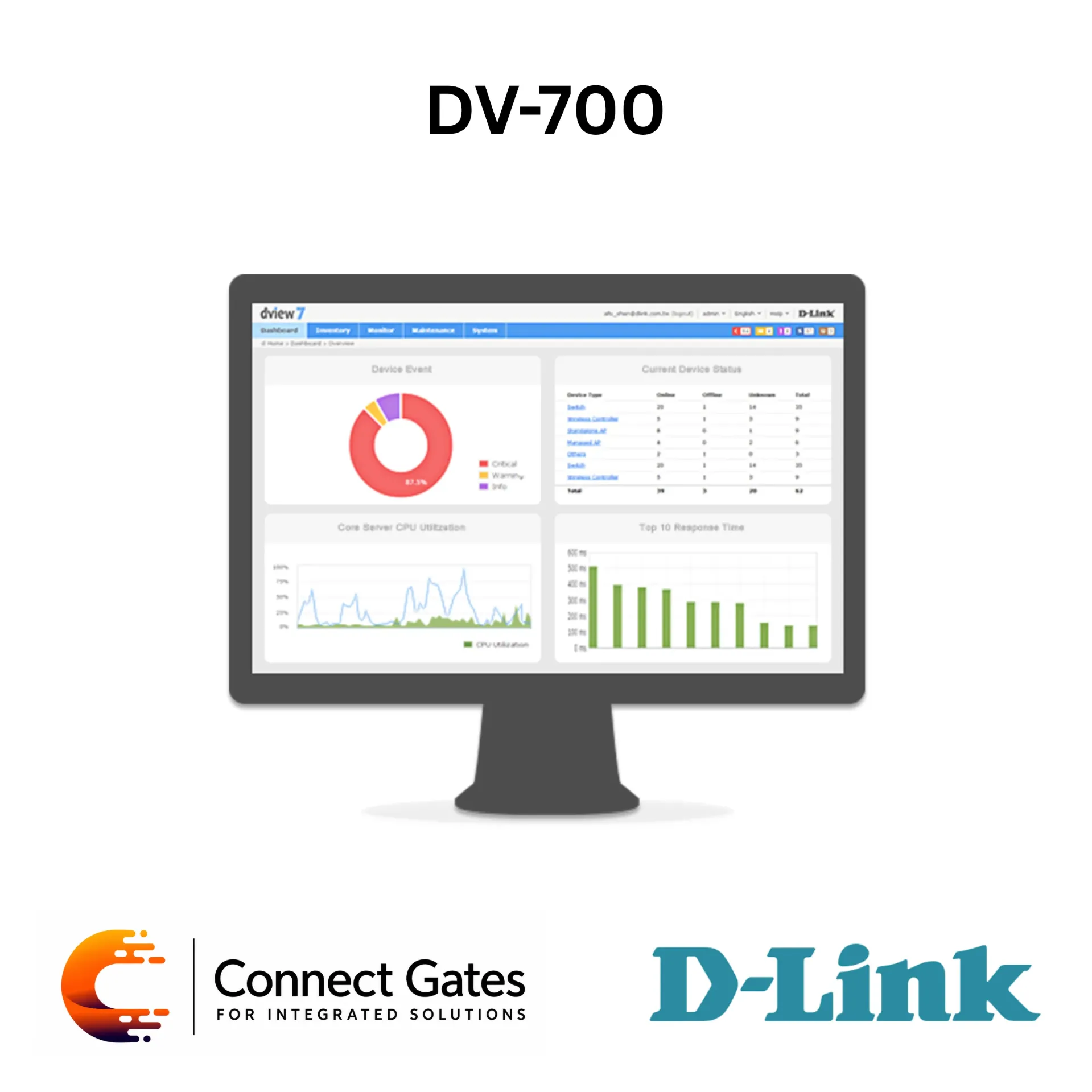

• Dashboard for wired and wireless device summaries.

• Customizable dashboard and chart system.

• Supports SNMP trap and syslog collection.

• Event notification and escalation support.

• Supports batch configuration for multiple devices.

• Supports CLI script dispatch across multiple devices.

• Supports firmware upgrades for single or multiple devices.

• Supports scheduled and periodic configuration backup and restore.

• Supports third-party device management.

• Supports Smart and Managed Switches, Unified Switches, Unified Access Points, Wireless Controllers, and Wireless Access Points.

• Product Type: Network Management System

• Brand: D-Link

• Model: DV-700

• Software Name: D-View 7 Network Management System

• Architecture: Standard server-client web architecture

• Deployment Architecture: Server and probe architecture

• Multi-Tenant Architecture: Supported

• Remote Site Management: Supported through probe design without VPN or behind NAT

• User Management: Read-write and read-only privileges by modules

• Supported Languages: English, Simplified Chinese, Traditional Chinese

• SNMP Support: SNMP v1, v2c, v3

• Device Discovery: SNMP scan, IPv4 address range scan, smart scan by neighborhood, LAN discovery by probe

• Link Discovery: LLDP and FDB-based link discovery

• Auto Discovery: Periodic discovery with specific time period

• Inventory Management: Inventory and device export, device grouping by labels

• Monitoring Methods: SNMP and Ping

• Topology View: Auto-topology generation, customized topology generation, device status display, link status display, tree and star topology structures

• Panel View: Switch panel and LED status, stacking switch panel view

• Status Polling: Ping and SNMP with customizable polling time

• Events & Notifications: Rule-based threshold events, value match, keyword match, keyword combination match, escalation rules, email notifications

• Device Configuration: Pre-defined templates and script dispatch with variables

• Firmware Upgrade: Supported for single or multiple devices

• Config Backup / Restore: One-time and periodic scheduled backup, restore from server file or uploaded file

• Task Management: One-time scheduled tasks and periodic scheduled tasks

• CPU: Dual Core 3.0 GHz or above

• DRAM: 4 GB or above

• Hard Drive Space: 120 GB or above

• Supported OS: Windows 8 Professional Edition or above 64-bit, Windows 7 Professional Edition or above 64-bit, Windows Server 2012 Standard Edition or above 64-bit, Windows Server 2008 Standard Edition or above 64-bit

• CPU: Single Core 2.0 GHz or above

• RAM: 2 GB or above

• Supported OS: Windows 8 32/64-bit, Windows 7 32/64-bit, Windows XP 32/64-bit, Windows Server 2012 32/64-bit, Windows Server 2008 32/64-bit

• CPU: Single Core 2.0 GHz or above

• RAM: 2 GB or above

• Browser: Chrome, Firefox, and IE 10 or above

• Centralized monitoring for enterprise networks.

• Managing D-Link switches, access points, and wireless controllers.

• Monitoring branch offices and remote sites.

• Network topology visualization and device status tracking.

• SNMP trap and syslog event collection.

• Scheduled network maintenance and automatic configuration tasks.

• Batch configuration for multiple network devices.

• Inventory management for wired and wireless network infrastructure.

• Third-party device monitoring and CLI-based management.

• Recommended for companies that need centralized monitoring and management for multiple network devices, switches, access points, and remote sites.

• Suitable for IT departments, factories, campuses, hotels, and enterprise networks where uptime, event tracking, and organized device management are important.

• Best used in projects where the client needs professional network visibility, scheduled configuration backup, topology view, and fast troubleshooting from one platform.
