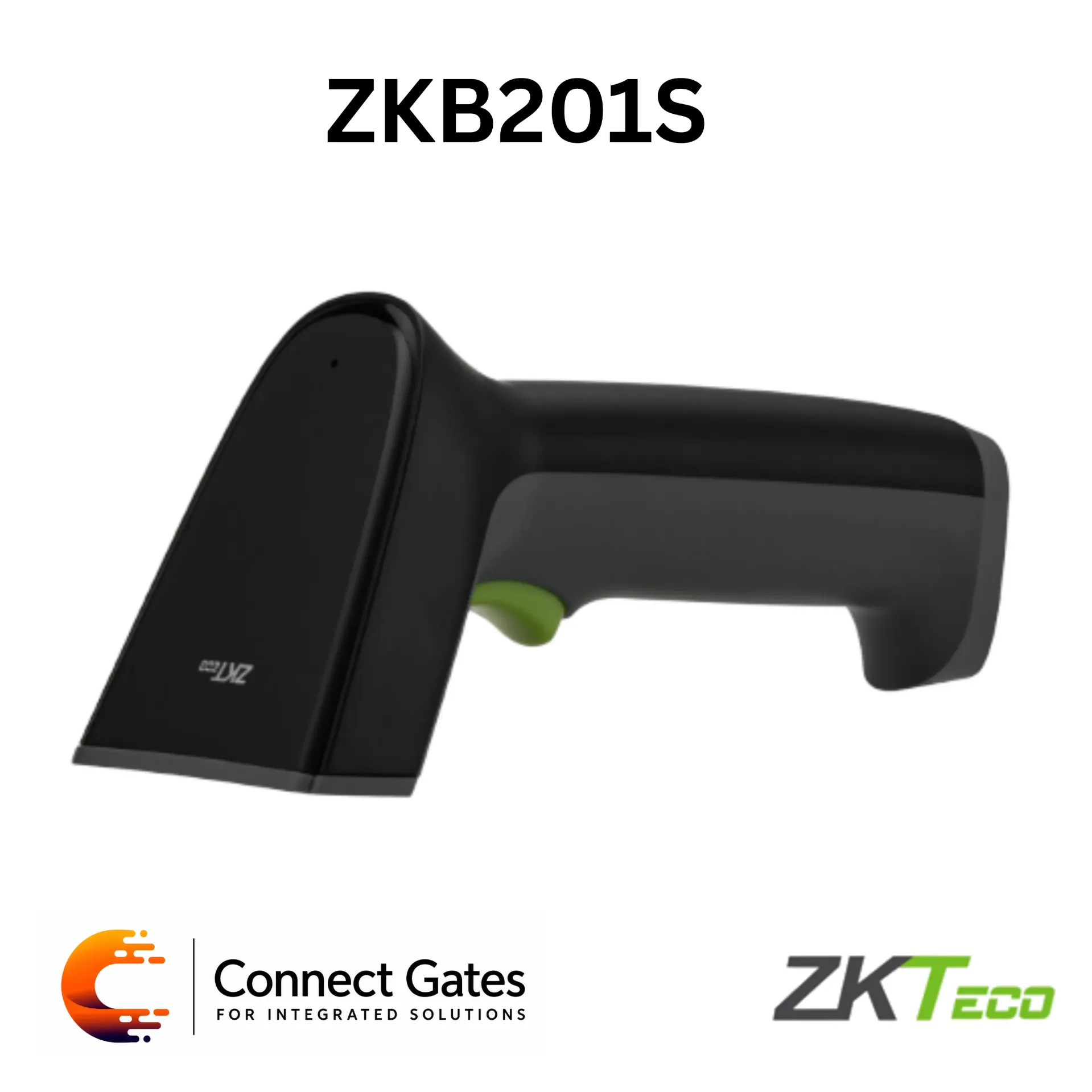

ZKTeco ZKB201S – 2D Image Barcode Scanner, 360° Scanning, USB Interface, High-Performance Decoding
• The ZKB201S is a high-performance 2D barcode scanner designed for retail, warehouse, and logistics environments
• Fast and accurate reading of both 1D and 2D barcodes with stable performance
• Supports scanning from paper labels and electronic screens (mobile / LCD)
• Handles high-density, damaged, or dirty barcodes efficiently
• 360° omnidirectional scanning for flexible operation
• Dual light system with white illumination and red aiming for comfortable scanning
• Plug and play design for easy setup and integration
Technical Specifications:
• Type: 2D Image Barcode Scanner • Model: ZKB201S
• Scan Mode: Manual • Image Sensor: 640 × 480 pixels
• Light Source: 650nm Red LED + White Illumination
• Scan Speed: 10 cm/s • Minimum Contrast: 25%
Decode Capability:
• 1D: UPC-A / UPC-E / EAN-8 / EAN-13 / ISBN / ISSN / Code128 / Code39 / Code93 / Code11 / ITF / Codabar
• 2D: QR Code / Micro QR / Data Matrix / PDF417 / Micro PDF417 / MaxiCode / Aztec / HanXin
Performance & Accuracy:
• Roll Tolerance: 0°–360° • Pitch: ±60° • Skew: ±55°
• Field of View: Horizontal 41° • Vertical 31°
• Accurate multi-code recognition in various conditions
Interface & Indicators:
• Interface: USB (Optional RS232)
• Indicators: LED + Beeper (Adjustable)
Electrical:
• Voltage: 5V DC • Operating Current: 180mA • Standby: 60mA
Physical Specifications:
• Dimensions: 167.3 × 70.5 × 81.5 mm
• Weight: 122 g
• Color: Black
Environmental:
• Operating Temp: -20°C ~ 50°C
• Storage Temp: -40°C ~ 70°C
• Humidity: 5% ~ 95% (Non-condensing)
• ESD Protection: ±2KV Direct / ±4KV Air
• Ambient Light Immunity: Up to 10,000 Lux
Reading Range (Typical):
• Code39 (4mil): 4–10 cm
• Code39 (13mil): 4–25 cm
• UPC / EAN: 3–25 cm
• QR Code: 5–20 cm
• PDF417: 5–20 cm
Applications:
• Retail Stores
• Warehouses
• Supermarkets
• Logistics & Delivery
Connect Gates Recommendation:
ZKB201S is a powerful and reliable 2D scanner, ideal for businesses needing accurate, fast, and flexible barcode scanning across different applications.
