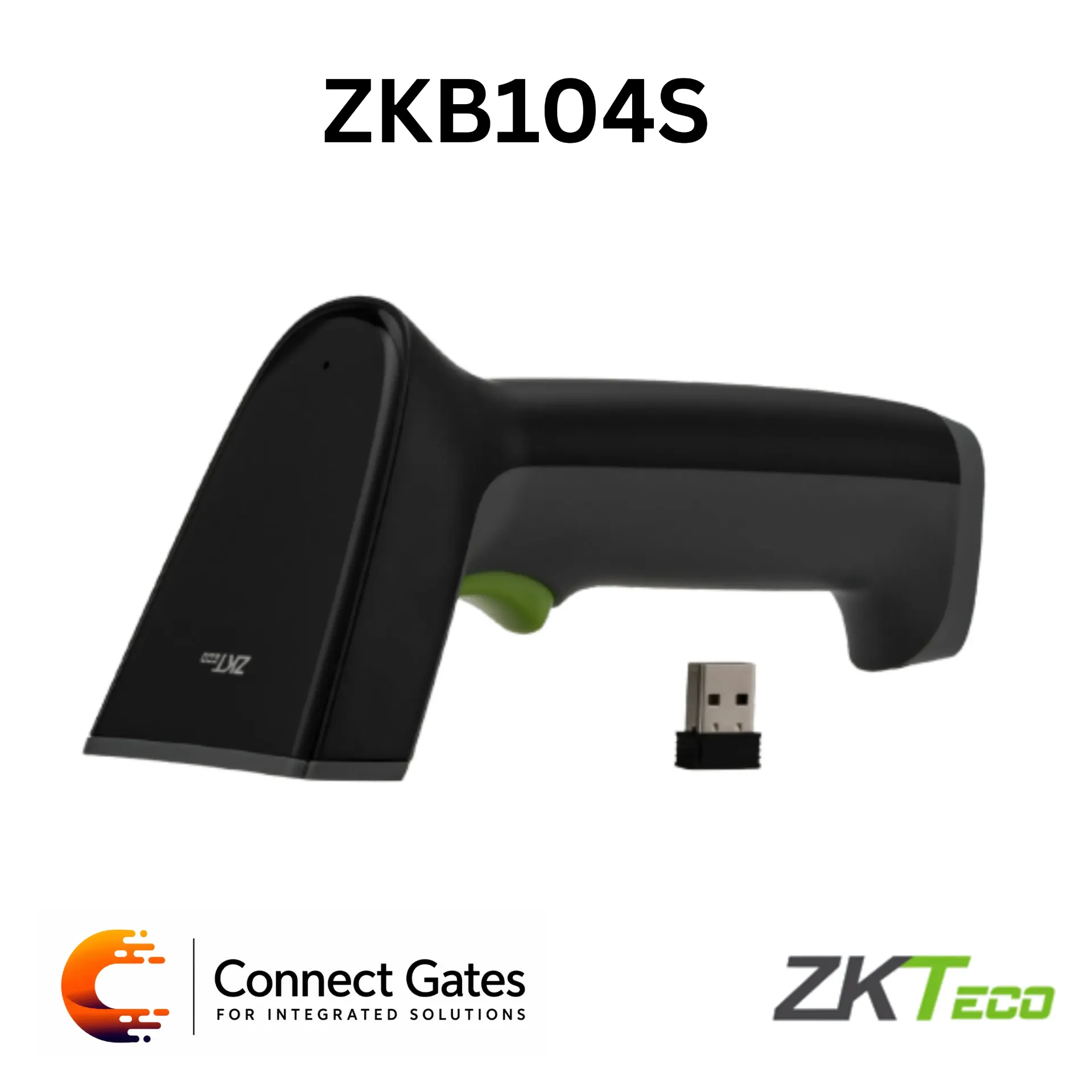

ZKTeco ZKB104S – 1D Wireless CCD Barcode Scanner, 2.4GHz, Screen Reading, High Accuracy
• The ZKB104S is a high-performance 1D wireless CCD barcode scanner designed for retail, warehouse, and logistics environments
• Quickly reads all common 1D barcodes with high accuracy and stability
• Supports scanning from paper labels and electronic screens (LCD / OLED)
• Accurate recognition even when multiple barcodes are present
• Enhanced 2.4GHz wireless transmission for stable and long-range communication
• Supports both wired and wireless modes simultaneously without switching
• Dual working modes: real-time transmission and storage mode (over 20,000 barcodes capacity)
• Plug and play for easy setup and fast deployment
Technical Specifications:
• Type: 1D Wireless CCD Barcode Scanner • Model: ZKB104S
• Scan Mode: Manual • Light Source: 620nm Red Light
• Scan Speed: 50 ms per scan • Minimum Contrast: 25%
Decode Capability:
• 1D: UPC-A / UPC-E / EAN-8 / EAN-13 / ISBN / ISSN
• Code128 / Code39 / Code93 / Code11 / ITF / Codabar
Performance & Accuracy:
• Roll Tolerance: ±30° • Pitch: ±65° • Skew: ±60°
• Accurate and stable reading across various barcode conditions
Wireless Connectivity:
• 2.4GHz Wireless (Optional Bluetooth)
• Transmission Range: Up to 60m (Bluetooth up to 15m)
• Communication Modes: Real-time / Storage Mode
Battery & Power:
• Battery Type: 18650 Li-ion
• Capacity: 2000 mAh
• Operating Time: ≥15 Hours
• Standby Time: Up to 10 Weeks
• Charging Time: ~5 Hours
Interface & Indicators:
• Interface: USB Receiver
• Indicators: LED + Beeper (Adjustable)
Physical Specifications:
• Dimensions: 167.3 × 70.5 × 81.5 mm
• Weight: 165 g
• Color: Black & Gray (White Optional)
Environmental:
• Operating Temp: -20°C ~ 50°C
• Storage Temp: -40°C ~ 70°C
• Humidity: 5% ~ 95% (Non-condensing)
• ESD Protection: ±2KV Direct / ±8KV Air
• Ambient Light Immunity: Up to 10,000 Lux
Reading Range (Typical):
• Code39 (4mil): 3–10 cm
• Code39 (13mil): 4–30 cm
• Code39 (20mil): 6–40 cm
• EAN13 / UPC-A: 3–30 cm
Applications:
• Retail Stores
• Warehouses
• Supermarkets
• Logistics & Delivery
Connect Gates Recommendation:
ZKB104S is a reliable wireless CCD scanner, ideal for businesses needing accurate scanning, screen compatibility, and flexible wireless operation.
