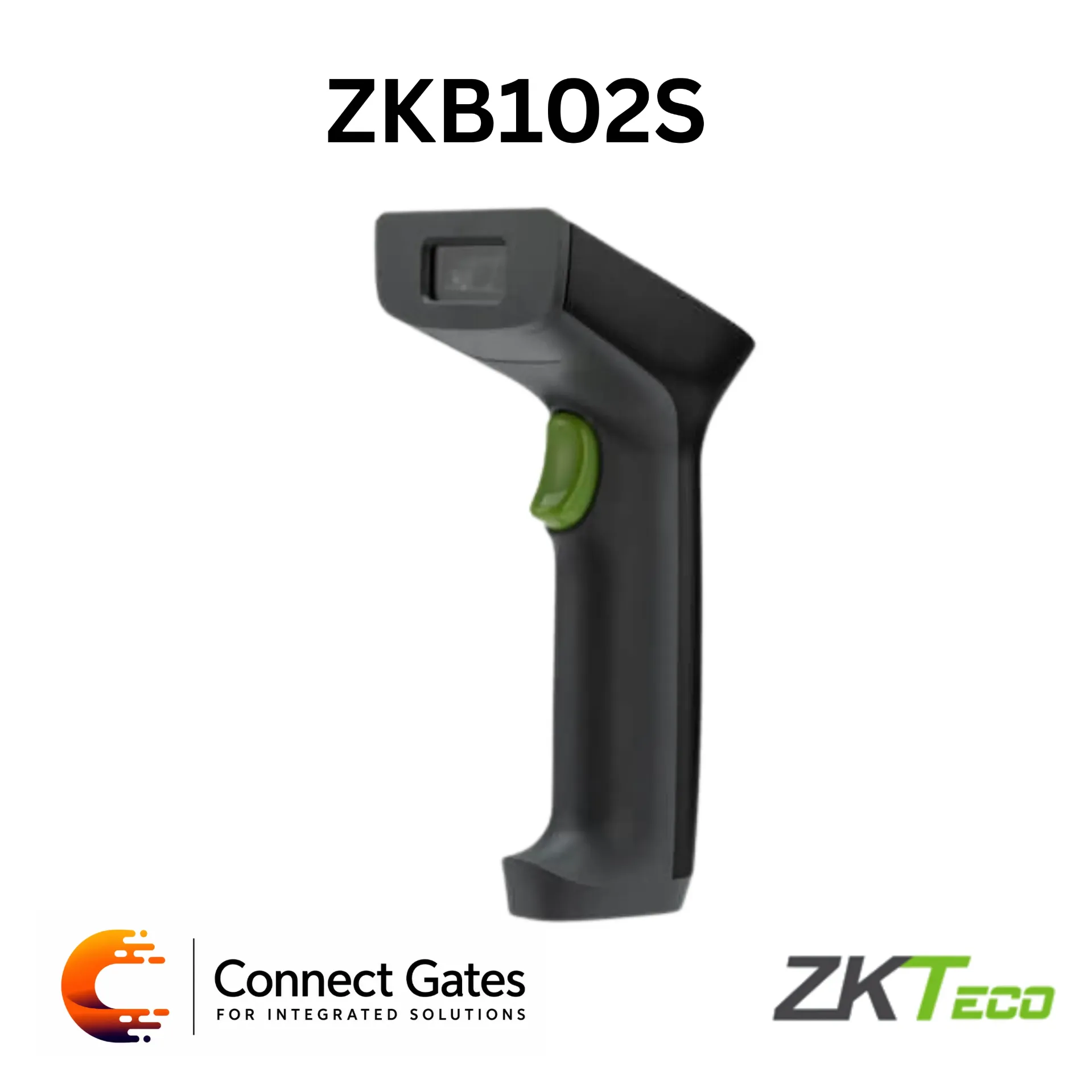

ZKTeco ZKB102S – 1D CCD Barcode Scanner, Fast Reading, USB Interface, Ergonomic Design
• The ZKB102S is a high-performance 1D CCD barcode scanner designed for retail, warehouse, and logistics environments
• Quickly reads all common 1D barcodes with fast and accurate performance
• Compatible with paper barcodes and electronic screen codes (LCD / OLED)
• Accurate identification even when multiple barcodes are present
• Plug and play design for easy setup without additional configuration
• Ergonomic and lightweight design for comfortable long-term use
Technical Specifications:
• Type: 1D CCD Barcode Scanner • Model: ZKB102S
• Scan Mode: Manual • Light Source: 620nm Red Light
• Scan Speed: 50 ms per scan • Minimum Contrast: 25%
Decode Capability:
• 1D Barcodes: UPC-A / UPC-E / EAN-8 / EAN-13 / ISBN / ISSN
• Code 128 / ISBT 128 / Code 39 / Code 93 / Code 11
• Interleaved 2 of 5 / Industrial 2 of 5 / Matrix 2 of 5
• Standard 2 of 5 (IATA) / Codabar (NW-7)
Performance & Accuracy:
• Roll Tolerance: ±30° • Pitch Tolerance: ±60° • Skew Tolerance: ±60°
• Ambient Light Immunity: Up to 10,000 Lux
• Multi-barcode recognition capability
Interface & Indicators:
• Interface: USB (Optional RS232)
• Indicators: LED Indicator + Beeper (Adjustable)
Electrical:
• Voltage: 5V DC • Operating Current: 120mA • Standby: 30mA
Physical Specifications:
• Dimensions: 167.3 × 70.5 × 81.5 mm
• Weight: 120 g
• Color: Black & Gray (White Optional)
Environmental:
• Operating Temp: -20°C ~ 50°C
• Storage Temp: -40°C ~ 70°C
• Humidity: 5% ~ 95% (Non-condensing)
• ESD Protection: ±2KV Direct / ±8KV Air
Reading Range (Typical):
• Code39 (4mil): 3–10 cm
• Code39 (5mil): 3–13 cm
• Code39 (13mil): 4–30 cm
• Code39 (20mil): 6–40 cm
• EAN13 / UPC-A (13mil): 3–30 cm
Applications:
• Retail Stores
• Warehouses
• Supermarkets
• Logistics & Delivery
Connect Gates Recommendation:
ZKB102S is a reliable and cost-effective barcode scanner, ideal for businesses needing fast, accurate, and easy-to-use scanning for daily operations.
