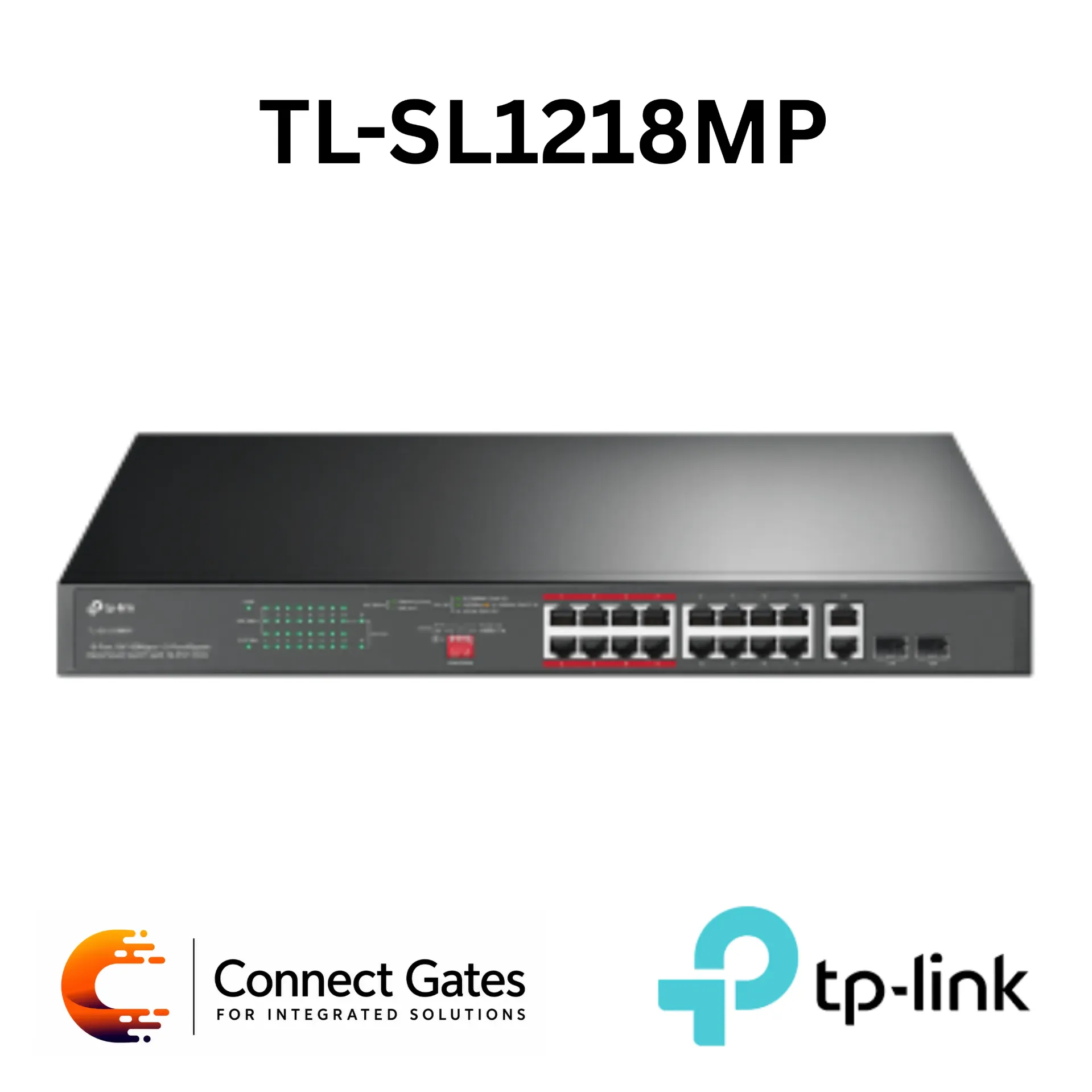

TP-Link TL-SL1218MP – 18-Port Rackmount PoE+ Switch with 16 Fast Ethernet PoE+ Ports, 2 Gigabit Ports, 2 Combo SFP Slots, 250W PoE Budget & Extend Mode
Overview:
• The TP-Link TL-SL1218MP is an 18-port rackmount PoE+ switch designed for CCTV, IP surveillance, access points, VoIP phones, and professional wired network deployments.
• Provides 16 × 10/100Mbps PoE+ ports for powering and connecting IP cameras and PoE-enabled devices through a single network cable.
• Includes 2 Gigabit non-PoE RJ45 ports for uplink connection to routers, NVRs, servers, or core switches.
• Provides 2 combo Gigabit SFP slots for flexible fiber uplink or long-distance network expansion.
• Supports IEEE 802.3af/at PoE standards with a total PoE power budget of 250W.
• Features Extend Mode for PoE transmission up to 250m, suitable for long-distance IP camera installations.
• Supports Priority Mode for ports 1–8 to help ensure stable power and data priority for important devices.
• Includes Isolation Mode to improve network security and reduce traffic interference in surveillance deployments.
• Built in a 1U 19-inch rack-mountable steel case for professional cabinet installation.
• Supports plug and play operation for quick deployment without complicated configuration.
Key Features:
• 18-Port Rackmount PoE+ Switch
• 16 × 10/100Mbps PoE+ Ports
• 2 × Gigabit Non-PoE RJ45 Ports
• 2 × Combo Gigabit SFP Slots
• IEEE 802.3af/at PoE Support
• 250W PoE Power Budget
• Extend Mode for up to 250m PoE Transmission
• Priority Mode for Ports 1–8
• Isolation Mode
• Plug and Play Operation
• 1U 19-Inch Rack-Mountable Steel Case
• Suitable for CCTV, IP Cameras, Access Points & PoE Devices
Technical Specifications:
• Product Type: Rackmount PoE+ Switch
• Brand: TP-Link
• Model: TL-SL1218MP
• Total Ports: 18 Ports
• PoE Ports: 16 × 10/100Mbps PoE+ Ports
• Non-PoE Ports: 2 × Gigabit RJ45 Ports
• Combo SFP Slots: 2 × Combo Gigabit SFP Slots
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 250W
• PoE Transmission: Extend Mode up to 250m
• Priority Ports: Ports 1–8
• Network Modes: Extend Mode, Priority Mode, Isolation Mode
• Case Material: Steel Case
• Installation: 1U 19-Inch Rack-Mountable
• Operation: Plug and Play
Applications:
• IP Camera & CCTV Networks
• Medium Surveillance Deployments
• Wireless Access Point Deployment
• VoIP Phone Networks
• Long-Distance PoE Camera Installation
• Fiber Uplink via Combo SFP Slots
• NVR and Router Connectivity
• Network Rack Installation
• Small and Medium Business Networks
Connect Gates Recommendation:
• Recommended for CCTV projects that need 16 PoE+ ports with a strong 250W PoE power budget.
• Best suited for IP camera systems where Extend Mode, Priority Mode, and Isolation Mode improve installation flexibility and network stability.
• For more PoE ports, Connect Gates recommends TL-SL1226P, while projects requiring full Gigabit PoE ports or smart management can use TL-SG1218MP, TL-SG1218MPE, or TL-SG1428PE.
