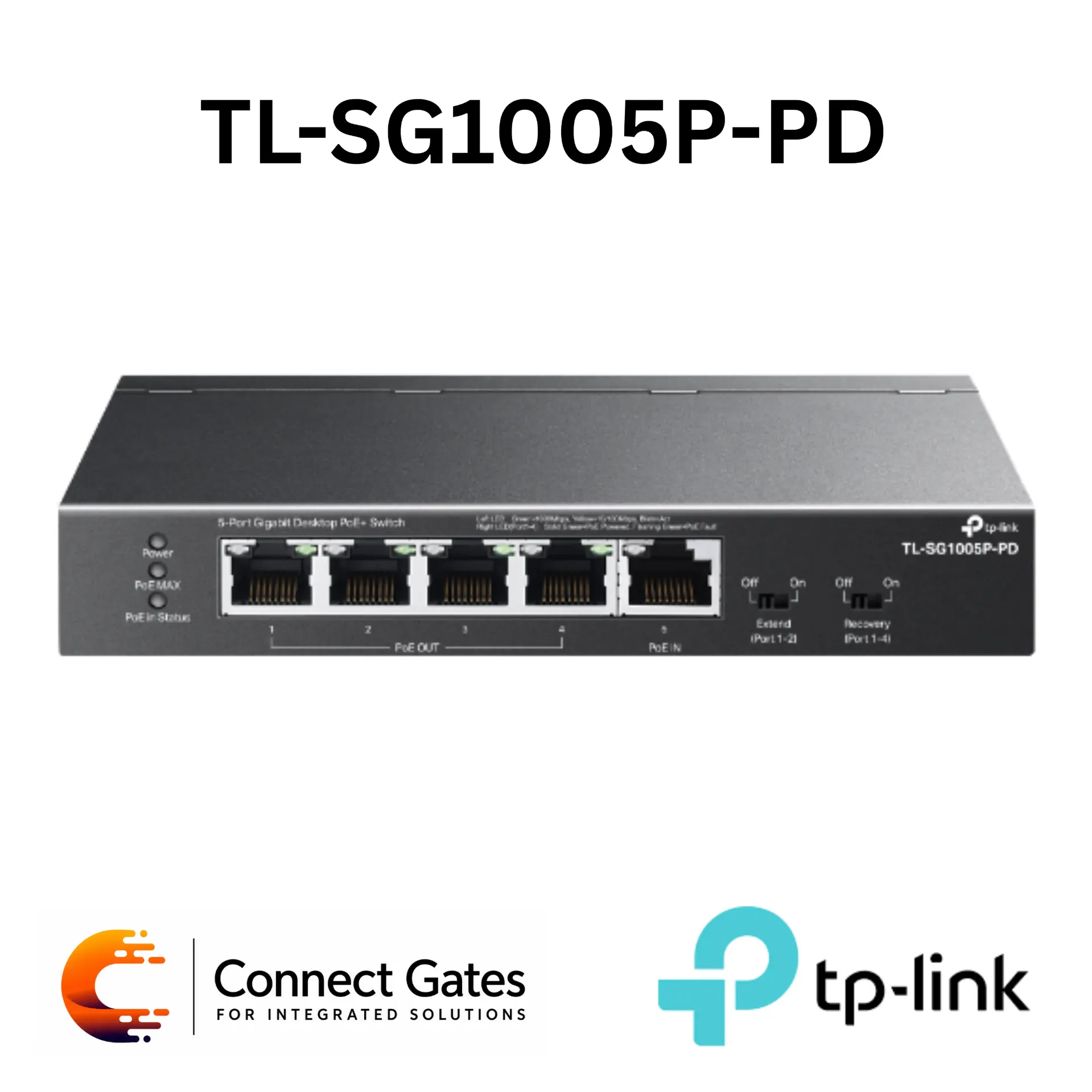

TP-Link TL-SG1005P-PD – 5-Port Gigabit Desktop Switch with 1-Port PoE++ In, 4-Port PoE+ Out, PoE Passthrough, Extend Mode & PoE Auto Recovery
Overview:
• The TP-Link TL-SG1005P-PD is a 5-port Gigabit desktop PoE-powered switch designed for flexible PoE network expansion without a local power adapter.
• Provides 1 Gigabit PoE++ input port to receive power and data from an upstream PoE switch or PoE injector.
• Includes 4 Gigabit PoE+ output ports for powering and connecting IP cameras, access points, VoIP phones, and other PoE-enabled devices.
• Supports IEEE 802.3af/at PoE output and IEEE 802.3af/at/bt Type 3 / Type 4 PoE input.
• Delivers PoE output power depending on the PoE standard received from the upstream source, with 9W / 21W / 47W / 66W power options.
• Features Extend Mode for PoE transmission up to 250m on ports 1–2, suitable for long-distance IP camera installations.
• Supports PoE Auto Recovery for ports 1–4 to automatically restart unresponsive PoE-powered devices.
• Built with a durable desktop steel case and supports plug and play operation for easy deployment.
• Powered only by PoE, making it ideal for locations where power outlets are limited.
Key Features:
• 5-Port Gigabit Desktop PoE-Powered Switch
• 1 × Gigabit PoE++ In Port
• 4 × Gigabit PoE+ Out Ports
• IEEE 802.3af/at PoE Output Support
• IEEE 802.3af/at/bt Type 3 / Type 4 PoE Input Support
• 9W / 21W / 47W / 66W PoE Output Power
• Extend Mode for up to 250m PoE Transmission on Ports 1–2
• PoE Auto Recovery for Ports 1–4
• Plug and Play Operation
• Powered Only by PoE
• Desktop Steel Case
• Suitable for CCTV, IP Cameras, Access Points & PoE Network Expansion
Technical Specifications:
• Product Type: Gigabit Desktop PoE-Powered Switch
• Brand: TP-Link
• Model: TL-SG1005P-PD
• Total Ports: 5 Ports
• PoE Input Port: 1 × Gigabit PoE++ In Port
• PoE Output Ports: 4 × Gigabit PoE+ Out Ports
• Port Speed: 10/100/1000Mbps
• PoE Output Standard: IEEE 802.3af/at
• PoE Input Standard: IEEE 802.3af/at/bt Type 3 / Type 4
• PoE Output Power: 9W / 21W / 47W / 66W depending on PoE input power
• Power Source: Powered Only by PoE
• PoE Transmission: Extend Mode up to 250m for Ports 1–2
• PoE Feature: PoE Auto Recovery for Ports 1–4
• Case Material: Steel Case
• Installation: Desktop
• Operation: Plug and Play
Applications:
• IP Camera & CCTV Networks
• PoE Network Expansion Without Local Power
• Wireless Access Point Deployment
• VoIP Phone Networks
• Long-Distance PoE Camera Installation
• Remote Network Point Expansion
• Small Office PoE Device Connection
• Desktop Network Installations
Connect Gates Recommendation:
• Recommended for projects that need to extend PoE network points in locations where direct electrical power is not available.
• Best suited for CCTV and access point installations where one upstream PoE line needs to feed multiple PoE devices.
• For projects requiring higher total PoE budget or more ports, Connect Gates recommends using a dedicated powered PoE switch such as TL-SG1008P, TL-SG1210P, or higher PoE switch models.
