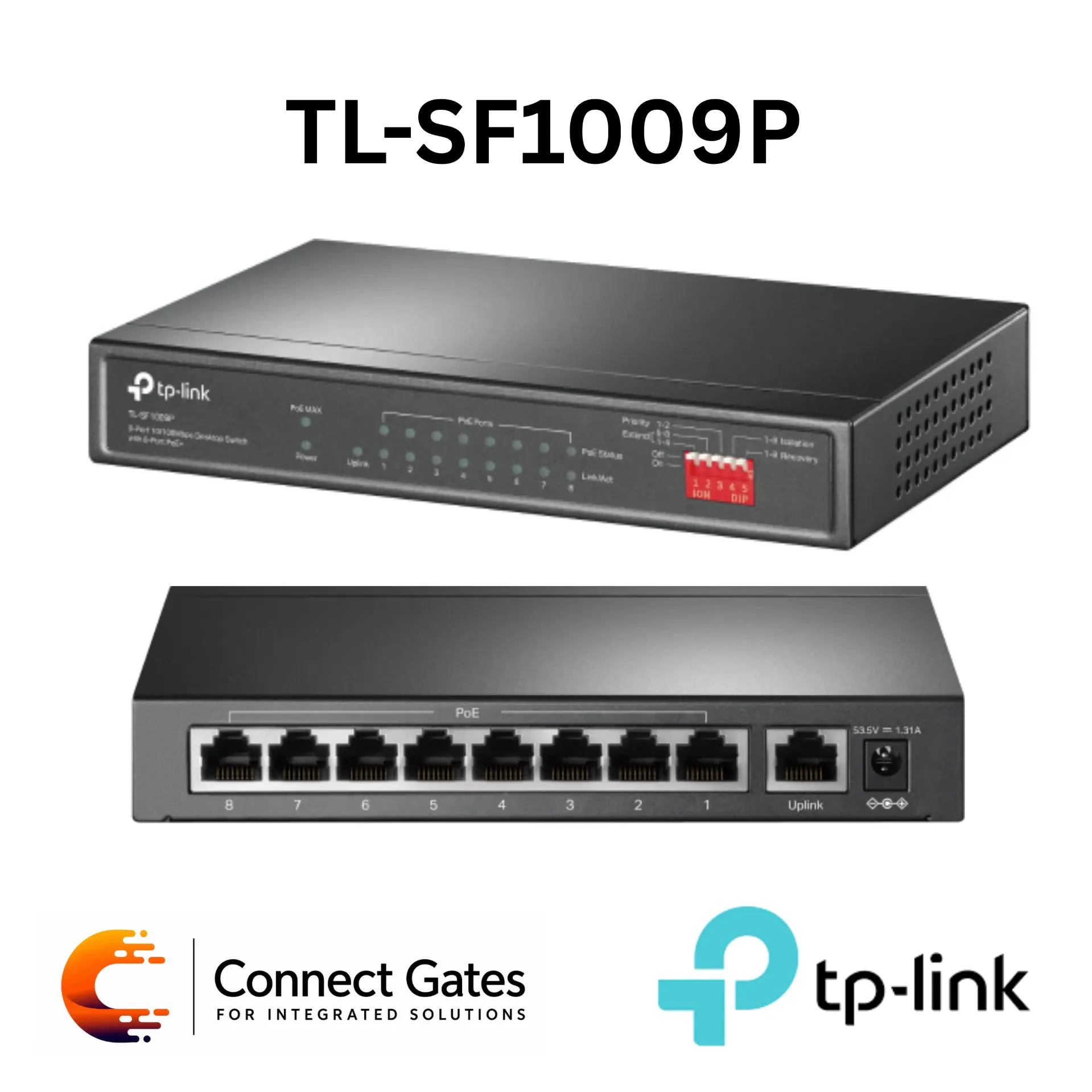

TP-Link TL-SF1009P – 9-Port 10/100Mbps Desktop PoE+ Switch with 8 PoE+ Ports, 1 Non-PoE Port, 65W PoE Budget, Extend Mode & Plug and Play
Overview:
• The TP-Link TL-SF1009P is a 9-port 10/100Mbps desktop PoE+ switch designed for small CCTV, IP surveillance, access point, VoIP, and wired network deployments.
• Provides 8 × 10/100Mbps PoE+ ports for powering and connecting IP cameras and PoE-enabled devices through a single network cable.
• Includes 1 × 10/100Mbps non-PoE port for uplink connection to a router, NVR, or main network switch.
• Supports IEEE 802.3af/at PoE standards with a total PoE power budget of 65W.
• Features Extend Mode for PoE transmission up to 250m, suitable for long-distance IP camera installations.
• Supports Priority Mode for ports 1–2 to help ensure stable power and data priority for important devices.
• Includes Isolation Mode to improve network security and reduce traffic interference in surveillance deployments.
• Built with a durable desktop steel case and supports plug and play operation for easy deployment.
Key Features:
• 9-Port 10/100Mbps Desktop PoE+ Switch
• 8 × 10/100Mbps PoE+ Ports
• 1 × 10/100Mbps Non-PoE Port
• IEEE 802.3af/at PoE Support
• 65W PoE Power Budget
• Extend Mode for up to 250m PoE Transmission
• Priority Mode for Ports 1–2
• Isolation Mode
• Plug and Play Operation
• Desktop Steel Case
• Suitable for CCTV, IP Cameras, Access Points & PoE Devices
Technical Specifications:
• Product Type: Desktop PoE+ Switch
• Brand: TP-Link
• Model: TL-SF1009P
• Total Ports: 9 Ports
• PoE Ports: 8 × 10/100Mbps PoE+ Ports
• Non-PoE Port: 1 × 10/100Mbps RJ45 Port
• Port Speed: 10/100Mbps
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 65W
• PoE Transmission: Extend Mode up to 250m
• Priority Ports: Ports 1–2
• Network Modes: Extend Mode, Priority Mode, Isolation Mode
• Case Material: Steel Case
• Installation: Desktop
• Operation: Plug and Play
Applications:
• Small CCTV Networks
• IP Camera Deployment
• Wireless Access Point Powering
• VoIP Phone Networks
• Long-Distance PoE Camera Installation
• NVR and Router Connectivity
• Small Office Network Expansion
• Desktop Network Installations
Connect Gates Recommendation:
• Recommended for small CCTV projects that need 8 PoE+ ports with simple plug and play operation.
• Best suited for IP camera systems where Extend Mode, Priority Mode, and Isolation Mode help improve installation flexibility and network stability.
• For Gigabit uplink, SFP slot, or PoE Auto Recovery, Connect Gates recommends upgrading to TL-SL1311P or TL-SG1210P.
