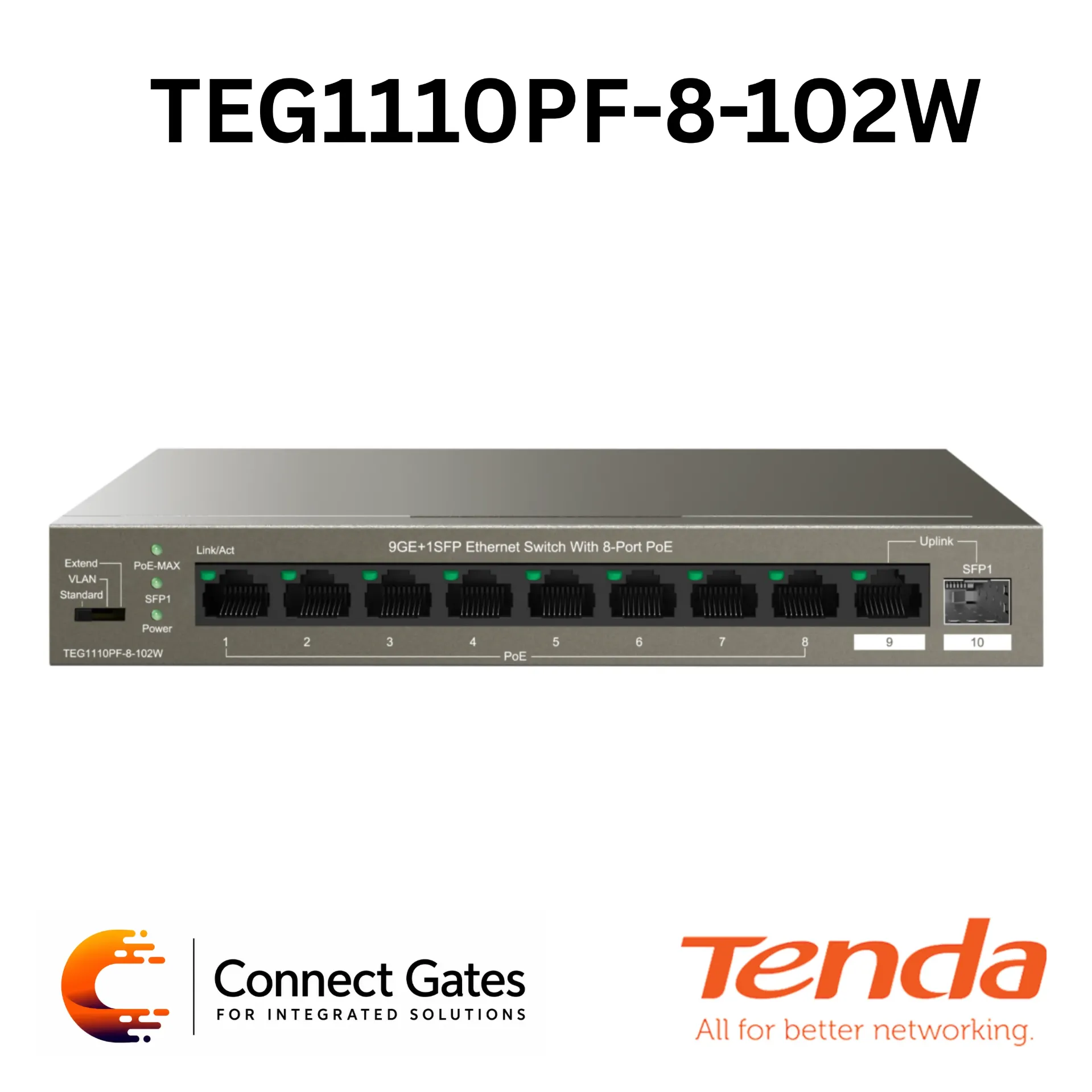

Tenda TEG1110PF-8-102W – 8-Port Gigabit PoE Switch with 1 Gigabit Uplink, 1 SFP Port, 92W PoE Budget & Extend Mode
Overview:
• The Tenda TEG1110PF-8-102W is a 10-port Gigabit unmanaged PoE switch designed for video surveillance and Gigabit wireless networking projects
• It provides 8 × Gigabit PoE ports for data and power, 1 × Gigabit RJ45 uplink port, and 1 × 100/1000Mbps SFP port for flexible uplink connectivity
• Ports 1–8 support IEEE 802.3af/at PoE standards and can supply power to HD PoE cameras, Gigabit APs, and other PoE-powered devices
• The switch delivers up to 30W per PoE port with a maximum PoE output of 92W and total power consumption below 102W
• It supports three working modes: Standard, VLAN, and Extend, making it suitable for complex networking and long-distance PoE deployment
• Extend Mode allows ports 1–8 to transmit up to 250 meters at 10Mbps, while VLAN Mode helps reduce broadcast storms and isolate DHCP broadcast
• With 20Gbps switching capacity, 14.9Mpps forwarding rate, 16K MAC address table, 6kV lightning protection, desktop installation, and wall mounting, it is suitable for SMEs, residential areas, industrial parks, hotels, and schools
Key Features:
• 9GE + 1SFP Unmanaged PoE Switch
• 8 × Gigabit PoE ports
• 1 × Gigabit RJ45 uplink port
• 1 × 100/1000Mbps SFP port
• IEEE 802.3af/at PoE support
• Up to 30W PoE output per port
• Up to 92W total PoE output
• Total power consumption below 102W
• 20Gbps switching capacity
• 14.9Mpps forwarding rate
• 16K MAC address table
• Store-and-forward switching mode
• Standard / VLAN / Extend modes
• Extend mode up to 250m on ports 1–8
• VLAN mode isolates ports 1–8 from each other
• 6kV lightning protection for ports and power supply
• Desktop and wall-mount installation
Technical Specifications:
• Brand: Tenda
• Model: TEG1110PF-8-102W
• Product Type: 9GE + 1SFP Ethernet Switch with 8-Port PoE
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Interfaces: 8 × 10/100/1000Mbps Base-T Ethernet Ports Data/Power, 1 × 10/100/1000Mbps Base-T Ethernet Port Data, 1 × 100/1000Mbps Base-X SFP Port
• PoE Ports: Ports 1–8 support IEEE 802.3af/at PoE power supply
• Maximum PoE Output Per Port: 30W
• Maximum PoE Output: 92W
• Total Power Consumption: <102W
• PoE Pin Assignment: Cores 1, 2, 4, 5 positive / cores 3, 6, 7, 8 negative
• Switching Capacity: 20Gbps
• Forwarding Rate: 14.9Mpps
• MAC Address Table: 16K
• Switching Mode: Store-and-forward
• MTBF: ≥100,000 hours
• Lightning Protection: ≥6kV
• Input Voltage: AC 100–240V, 50/60Hz
• LED Indicators: Link/Act LED per port, PoE-MAX LED, Power LED
• Standard Mode: All ports can communicate with each other
• VLAN Mode: Ports 1–8 are isolated from each other and can communicate with port 9 and SFP1
• Extend Mode: Ports 1–8 reduce to 10Mbps negotiation rate and support transmission distance up to 250m
• Dimensions: 177.5 × 104 × 26mm
• Mounting: Desktop / Wall-mount
• Certifications: CCC, FCC, CE, RoHS
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
Applications:
• CCTV and HD IP camera systems
• Gigabit wireless AP deployment
• Small and medium business networks
• Residential area network installations
• Industrial park surveillance and wireless coverage
• Hotel and school network deployment
• Long-distance PoE camera connection using Extend Mode
• Fiber uplink deployment using SFP port
Connect Gates Recommendation:
• Recommended by Connect Gates for small and medium CCTV and wireless projects that need 8 Gigabit PoE ports with both RJ45 and SFP uplink options
• Suitable for surveillance, AP deployment, hotels, schools, residential areas, and industrial projects where VLAN isolation, long-distance PoE, and stable Gigabit uplink are required
