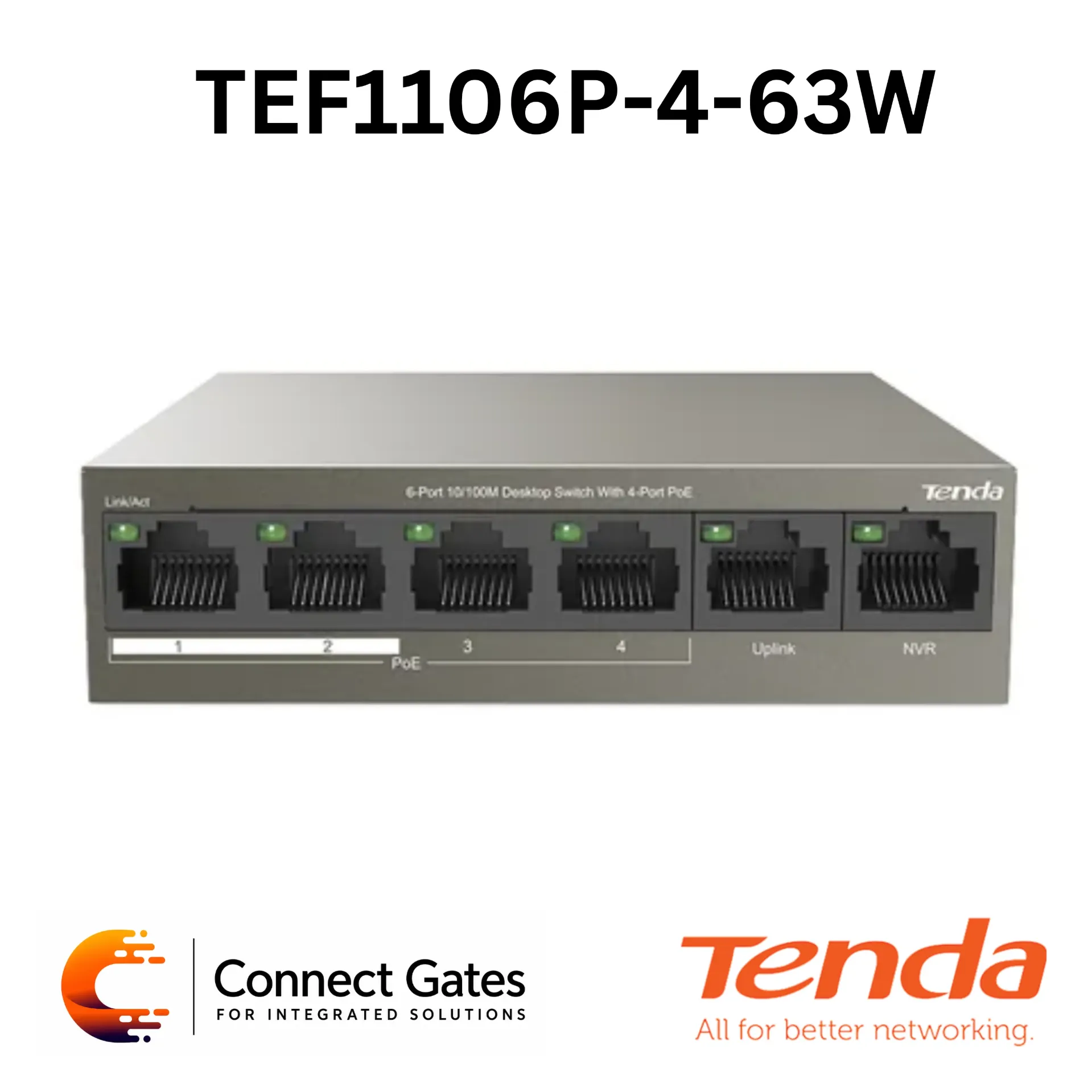

Tenda TEF1106P-4-63W – 6-Port 10/100M Desktop PoE Switch with 4 PoE Ports, 2 Uplink Ports, 63W Output & Extend Mode
Overview:
• The Tenda TEF1106P-4-63W is an unmanaged desktop PoE switch designed for small CCTV, IP camera, access point, and small business network installations
• It provides 4 × 10/100Mbps PoE ports for data and power, plus 2 × 10/100Mbps uplink ports for connecting to NVR, router, or upstream network devices
• Ports 1–4 support IEEE 802.3af/at PoE standards and can automatically identify PoE-powered devices
• The switch supports up to 30W per PoE port with a maximum device output of 63W, suitable for powering IP cameras and small PoE devices
• It supports Extend Mode and QoS function, making it suitable for small-sized video surveillance projects requiring longer-distance transmission
• Built-in 6kV lightning protection, PSE short-circuit protection, PoE overload protection, and surge current protection help improve reliability in professional installations
Key Features:
• 6-Port 10/100M Desktop Switch with 4-Port PoE
• 4 × 10/100Mbps PoE RJ45 ports
• 2 × 10/100Mbps uplink RJ45 ports
• IEEE 802.3af/at PoE support
• Up to 30W PoE output per port
• Up to 63W total device output
• 1.2Gbps backplane bandwidth
• 1K MAC address table with auto-learning
• IEEE 802.3x full-duplex flow control
• Half-duplex backpressure flow control
• Extend Mode support
• QoS function support
• Dual uplink ports for NVR and router connection
• 6kV lightning protection
• PSE short-circuit and PoE overload protection
• Desktop and wall-mounting support
• Plug-and-play unmanaged operation
Technical Specifications:
• Brand: Tenda
• Model: TEF1106P-4-63W
• Product Type: Unmanaged Desktop PoE Switch
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
• Interfaces: 4 × 10/100Mbps Base-TX RJ45 Ports Data/Power, 2 × 10/100Mbps Base-TX RJ45 Ports Data
• PoE Ports: Ports 1–4 support IEEE 802.3af/at PoE power
• Maximum PoE Output Per Port: 30W
• Power Output: DC 51V / 1.25A
• Total Device Output: 63W
• Switching Features: 1.2Gbps backplane bandwidth
• Forwarding Rate: 10BASE-T 14,880pps/port, 100BASE-TX 148,800pps/port
• Data Rates: 10/100Mbps Half Duplex, 20/200Mbps Full Duplex
• MAC Address Table: 1K
• LED Indicators: 6 × Link/Ack LED, 1 × Power LED
• Protection: 6kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection
• Supported Functions: Extend Mode, QoS
• Mounting: Desktop / Wall-mount
• Dimensions: 100 × 100 × 26mm
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
Applications:
• Small CCTV and IP camera systems
• Small-sized video surveillance projects
• Wireless access point power supply
• IP phone and PoE device connection
• SMB, supermarket, and restaurant networks
• NVR and router uplink connection
• Long-distance PoE camera deployment using Extend Mode
• Desktop or wall-mounted PoE installations
Connect Gates Recommendation:
• Recommended by Connect Gates for small CCTV projects that need a compact unmanaged PoE switch with 4 PoE ports and 2 uplink ports
• Suitable for small offices, supermarkets, restaurants, shops, and small surveillance systems where simple installation, PoE power, QoS support, and Extend Mode are required
