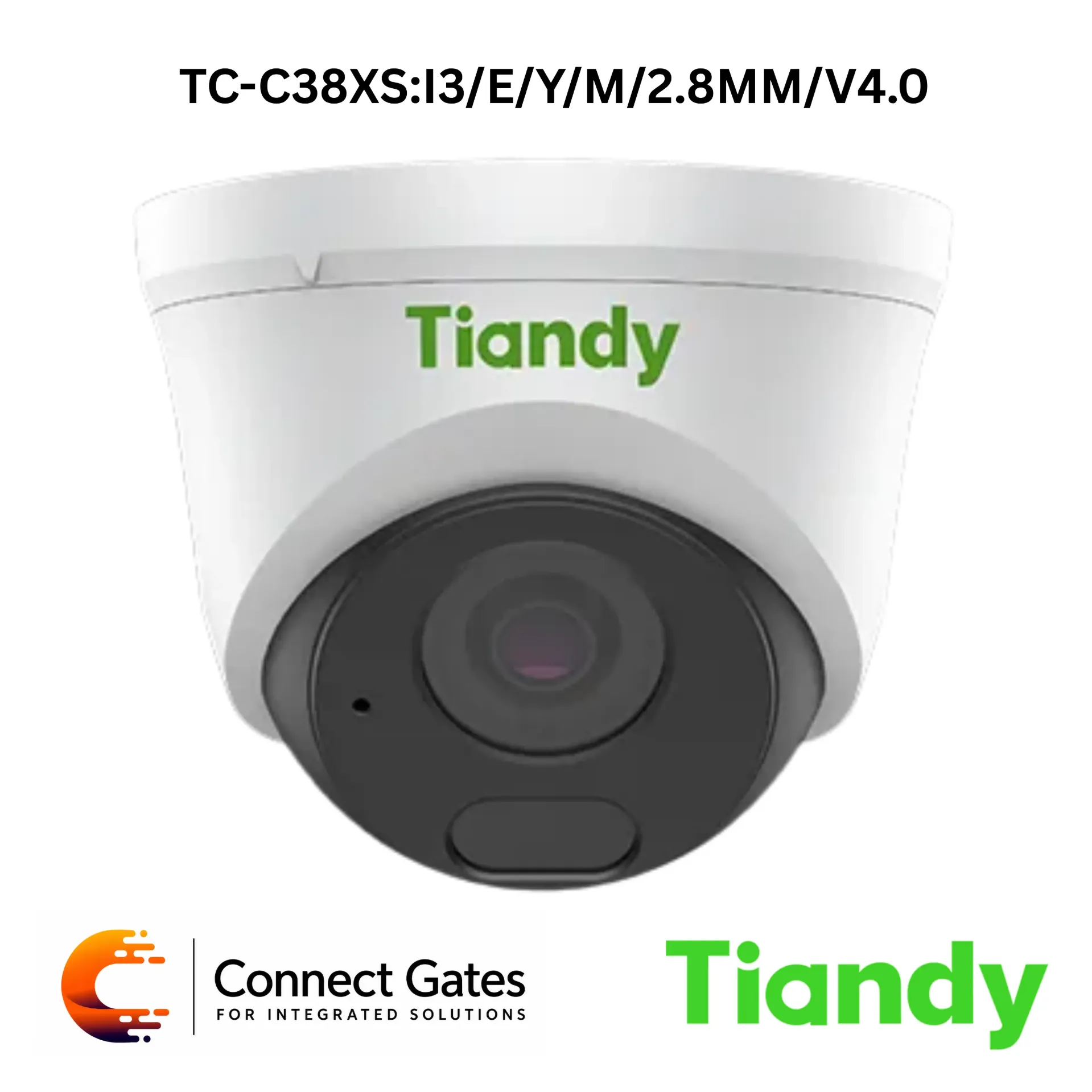

Tiandy TC-C38XS:I3/E/Y/M/2.8MM/V4.0 – 8MP Fixed Starlight IR Turret Camera
Overview:
The Tiandy TC-C38XS:I3/E/Y/M/2.8MM/V4.0 is an 8MP Fixed Starlight IR Turret IP Camera designed for high-resolution professional surveillance. It provides up to 3840 × 2160 @ 20fps, supports S+265 / H.265 / H.264 / M-JPEG compression, includes Built-in Mic, 120dB WDR, Smart IR up to 30m, MicroSD up to 512GB, and PoE support for reliable security installations. The matching datasheet confirms the same model and version.
Key Features:
8MP high-resolution image up to 3840 × 2160 @ 20fps
Fixed 2.8mm lens
Starlight low-light performance
Built-in microphone
Smart IR range up to 30m
120dB WDR for strong backlight scenes
S+265 / H.265 / H.264 / M-JPEG video compression
Tripwire and perimeter detection
MicroSD card support up to 512GB
DC 12V / PoE support
Full metal housing
IP66 weatherproof protection
Technical Specifications:
Image Sensor: 1/2.8" CMOS
Max. Resolution: 8MP
Resolution: Up to 3840 × 2160
Frame Rate: Up to 20fps at 3840 × 2160
Lens Type: Fixed lens
Lens: 2.8mm
Aperture: F1.6
Minimum Illumination: Color 0.002 Lux @ F1.6
Day & Night: IR-cut filter with auto switch
IR Distance: Up to 30m
WDR: 120dB
Audio: Built-in Mic
Storage: MicroSD card up to 512GB
Video Compression: S+265 / H.265 / H.264 / M-JPEG
Analytics: Tripwire / Perimeter Detection
Network Interface: RJ45 Ethernet
Power Supply: DC 12V / PoE
Operating Conditions: -40°C to 65°C, 0–95% RH
Protection Rating: IP66
Housing: Full Metal Housing
Camera Type: Fixed Starlight IR Turret IP Camera
Brand: Tiandy
Applications:
Factories and warehouses
Commercial buildings
Office entrances
Retail stores
Indoor and outdoor surveillance
Parking areas
Perimeter monitoring
Sites requiring 8MP video with audio monitoring
Connect Gates Recommendation:
Recommended for projects that need a professional 8MP turret IP camera with 4K image quality, Starlight low-light performance, Built-in Mic, PoE installation, and 30m IR night vision. It is suitable for locations that require clearer image details than 4MP/5MP cameras, especially entrances, warehouses, parking areas, and perimeter coverage.
