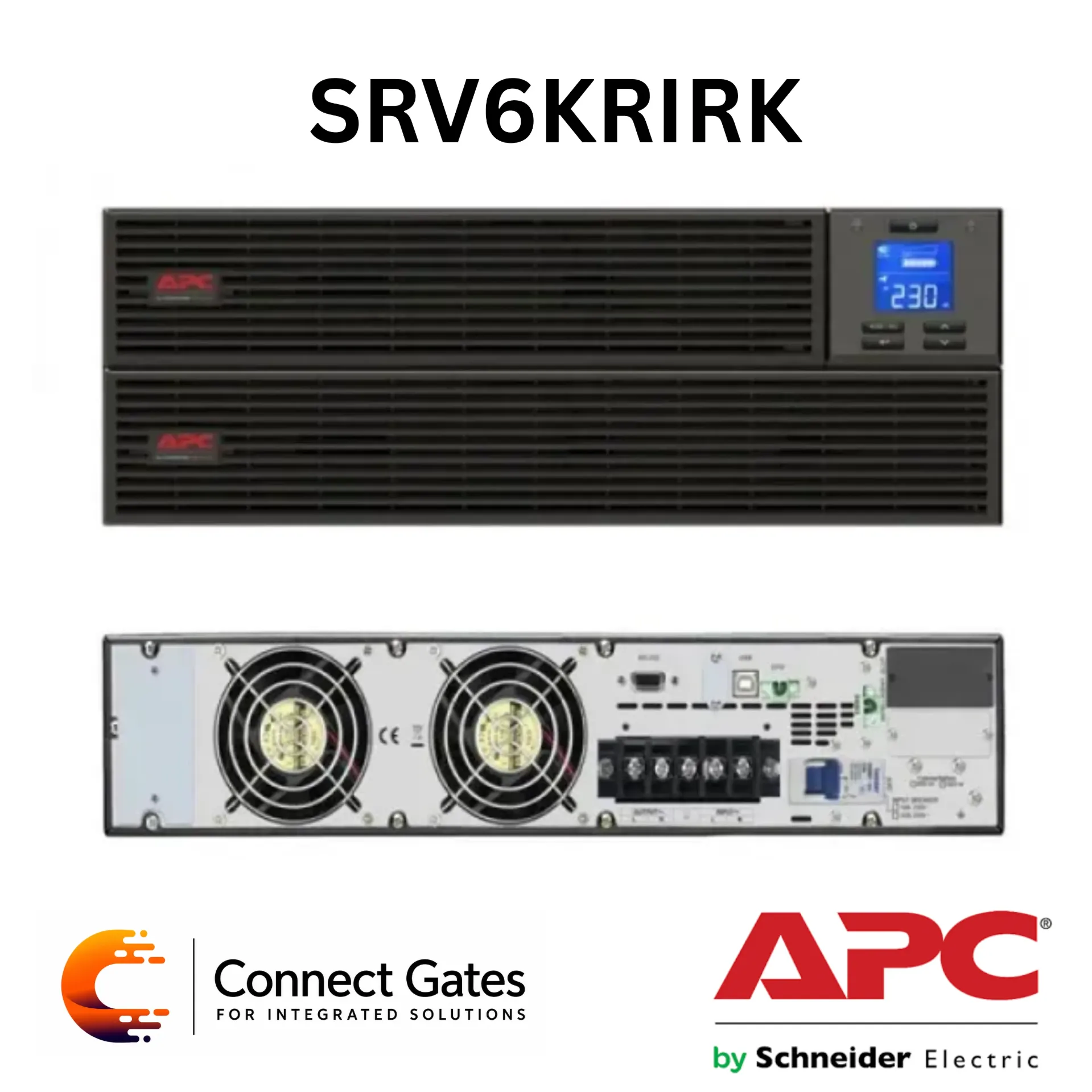

APC SRV6KRIRK – Easy UPS On-Line 6kVA / 6kW Rackmount 4U UPS with LCD & Rail Kit
Overview:
• The APC SRV6KRIRK Easy UPS On-Line is a professional 6kVA / 6kW Online UPS designed to provide reliable power protection for IT rooms, CCTV control rooms, servers, network racks, and critical business equipment
• It uses Double Conversion Online UPS topology, providing clean and stable power even in unstable electrical conditions
• The UPS delivers sine wave output, making it suitable for sensitive electronics and professional low-current systems
• Rackmount 4U design with rail kit makes it suitable for rack installation in server rooms, network cabinets, and CCTV rooms
• Built-in LCD display provides clear monitoring of UPS status, load, battery condition, input/output voltage, and alarms
• Hard wire input/output connection makes it suitable for professional electrical installation and dedicated power circuits
Key Features:
• 6kVA / 6kW UPS capacity
• Double Conversion Online UPS
• Sine wave output
• Rackmount 4U design
• Rail kit included
• LCD status and control display
• 230V single-phase input and output
• Hard wire 3-wire input and output
• Internal automatic and manual bypass
• Intelligent card slot
• USB and serial connectivity
• Emergency Power Off – EPO support
• 94% efficiency at full load
• Suitable for servers, CCTV rooms, NVR systems, network racks, and critical loads
Technical Specifications:
• Brand: APC by Schneider Electric
• Model: SRV6KRIRK
• Product Type: Easy UPS On-Line
• UPS Capacity: 6000VA / 6kVA
• Rated Power: 6000W / 6kW
• UPS Type: On-Line
• UPS Topology: Double Conversion Online
• Main Input Voltage: 230V AC, 1 Phase
• Other Input Voltages: 220V / 240V
• Main Output Voltage: 230V AC, 1 Phase
• Other Output Voltages: 220V / 240V
• Input Connection: Hard Wire 3-Wire
• Output Connection: Hard Wire 3-Wire
• Wiring Type: 1P + N + E
• Input Voltage Range: 110–300V at 60% Load / 176–300V at Full Load
• Network Frequency: 40–70Hz Auto-Sensing
• Output Frequency: 50/60Hz ±3Hz Sync to Mains
• Output Waveform: Sine Wave
• Efficiency: 94% at Full Load
• Crest Factor: 3:1
• Harmonic Distortion: 1%
• Bypass Type: Internal Bypass – Automatic & Manual
• Surge Energy Rating: 600 Joules
• Battery Type: Lead-Acid Battery
• Battery Voltage: 192V
• Battery Recharge Time: 4 Hours
• Battery Life: 3–5 Years
• Display Type: Multifunction LCD Status and Control Console
• Connectivity: USB Port / Serial Port
• Expansion Slot: Intelligent Card Slot
• Emergency Power Off: Yes
• Rack Height: 4U
• Mounting Mode: Rack-Mounted with Included Rail Kit
• Protection Rating: IP20
• Acoustic Level: 55 dBA
• Operating Temperature: 0–40°C
• Operating Humidity: 0–95% Non-Condensing
• Color: Black
• Dimensions: 173 × 438 × 710 mm
• Net Weight: 61 kg
• Certifications: CE, UKCA, EAC, TISI
Applications:
• IT rooms and server rooms
• CCTV control rooms
• Network racks and core switches
• NVR and DVR systems
• Access control and attendance systems
• Security and low-current systems
• Telecom and communication equipment
• Business-critical office equipment
• Professional rack-mounted power backup installations
Connect Gates Recommendation:
• Recommended for professional CCTV rooms, server rooms, and network racks that require stable online power protection
• Suitable for sensitive systems where voltage instability, power cuts, or transfer delay may cause downtime or equipment failure
• A strong choice for projects that need 6kVA / 6kW capacity, rackmount installation, sine wave output, LCD monitoring, and professional hard wire connection
