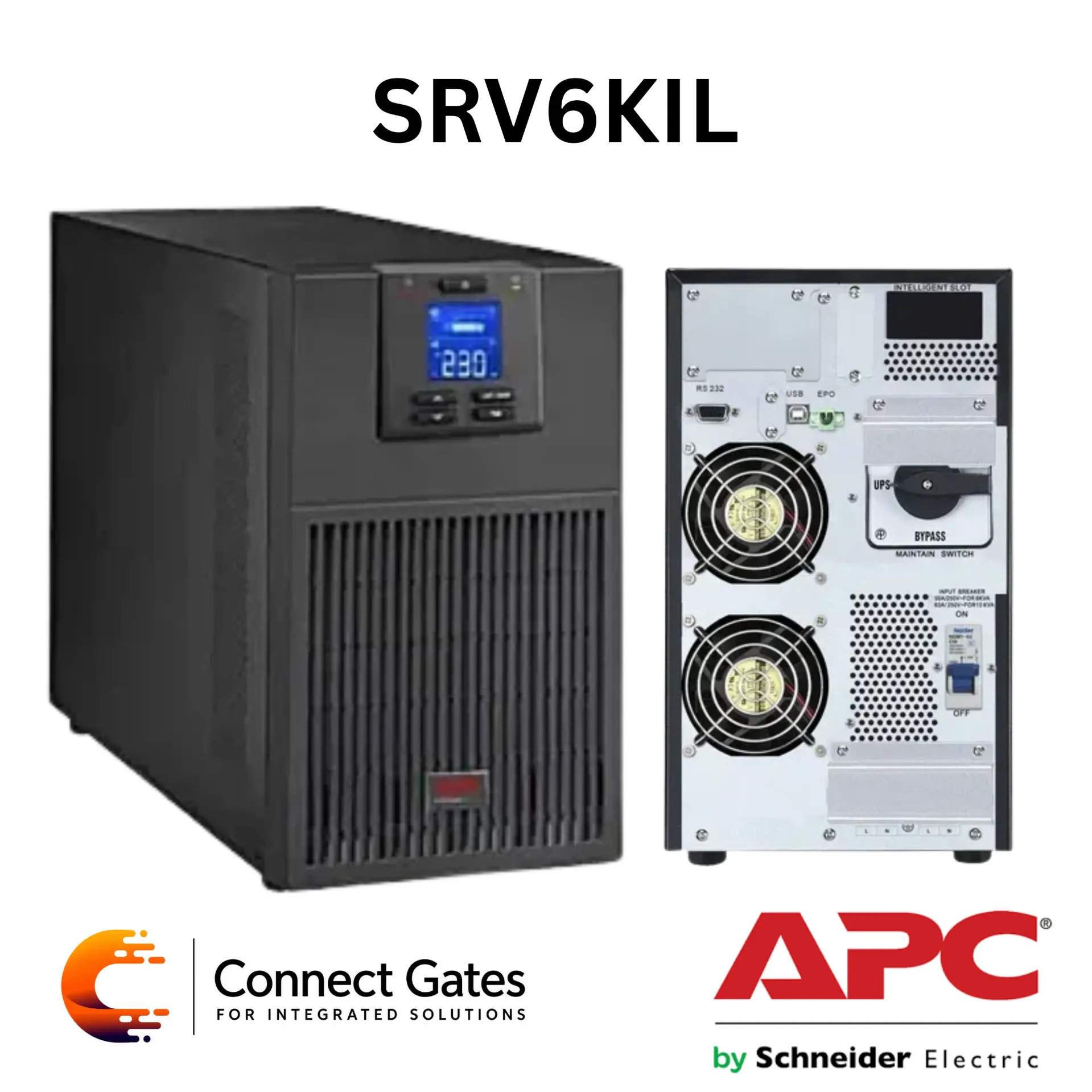

APC SRV6KIL – Easy UPS On-Line 6kVA / 6kW Tower UPS with LCD, Intelligent Card Slot & Extended Runtime Support
Overview:
• The APC SRV6KIL Easy UPS On-Line is a professional 6kVA / 6kW Double Conversion Online UPS designed for critical power protection in unstable electrical conditions
• It provides 230V main input and output, with support for 220V / 230V / 240V voltage options
• The UPS delivers sine wave output, making it suitable for sensitive IT, CCTV, network, and low-current systems
• The KIL version is designed for extended runtime applications with stronger battery charging capability and external battery support
• Built-in LCD display, Intelligent Card Slot, USB, and RS-232 communication support professional monitoring and management
• Suitable for CCTV control rooms, server rooms, network racks, NVR systems, access control systems, and critical business equipment
Key Features:
• 6000VA / 6000W UPS capacity
• Double Conversion Online UPS
• Sine wave output
• Tower form factor
• 230V input and output
• Supports 220V / 230V / 240V voltage options
• Extended runtime support
• External battery pack compatibility
• Hard wire 3-wire output connection
• LCD status and control display
• Intelligent Card Slot
• USB and RS-232 communication
• Internal automatic and manual bypass
• Lead-acid battery system
• High battery charger power for extended runtime use
• Suitable for CCTV, IT, network, and critical equipment
Technical Specifications:
• Brand: APC by Schneider Electric
• Model: SRV6KIL
• Product Type: Easy UPS On-Line
• UPS Capacity: 6000VA / 6kVA
• Rated Power: 6000W / 6kW
• UPS Type: Double Conversion Online
• Main Input Voltage: 230V AC
• Other Input Voltages: 220V / 240V
• Main Output Voltage: 230V AC
• Other Output Voltages: 220V / 240V
• Output Connection: Hard Wire 3-Wire
• Wiring Type: 1P + N + E
• Output Waveform: Sine Wave
• Battery Type: Lead-Acid Battery
• Battery Voltage: 240V
• Battery Recharge Time: 5 Hours
• Battery Life: 3–5 Years
• Battery Charger Power: 1170W Rated
• Extended Runtime Support: Yes
• External Battery Support: Yes
• Display Type: LCD Status and Control Console
• Communication: USB / RS-232 / Intelligent Card Slot
• Mounting Mode: Tower
• Recommended Use: Critical power backup and extended runtime applications
Applications:
• CCTV control rooms
• IT rooms and server rooms
• Network racks and core switches
• NVR and DVR systems
• Access control and attendance systems
• Security and low-current systems
• Telecom and communication equipment
• Business-critical office equipment
• Sites requiring longer backup runtime
Connect Gates Recommendation:
• Recommended for professional sites that need 6kVA / 6kW online UPS protection with longer backup runtime capability
• Suitable for CCTV control rooms, IT rooms, network racks, servers, NVR systems, and sensitive low-current systems
• A strong choice when double conversion protection, sine wave output, LCD monitoring, hard wire installation, and external battery support are required
