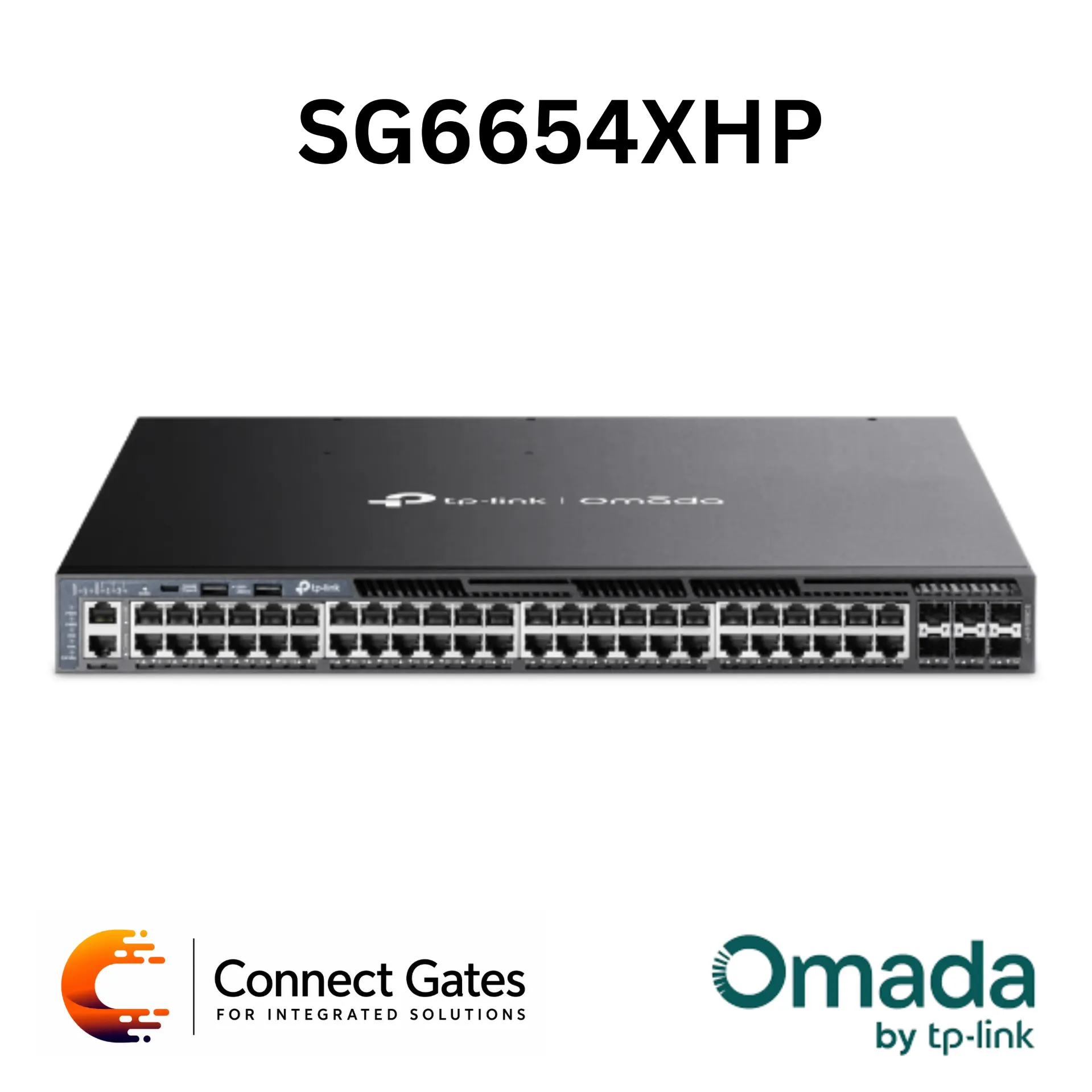

Omada SG6654XHP – 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 × 10G SFP+ Slots & Dual Redundant Power Supplies
Overview:
• The Omada SG6654XHP is a 48-port Gigabit stackable L3 managed PoE+ switch designed for enterprise, surveillance, wireless, and high-performance business networks.
• Provides 48 × Gigabit PoE+ RJ45 ports for powering access points, IP cameras, VoIP phones, and other PoE-enabled network devices.
• Equipped with 6 × 10G SFP+ slots for high-speed fibre uplink, aggregation, and backbone connectivity.
• Supports 802.3at/af PoE with up to 1440W maximum PoE power, depending on the installed power supply module.
• Built in a 1U 19-inch rack-mountable steel case for professional server room and enterprise rack installations.
• Supports advanced Layer 3 routing features including Static Routing, RIP, OSPF, VRRP, DHCP Server, and DHCP Relay.
• Supports enterprise switching and security features including VLAN, STP/RSTP/MSTP, IGMP Snooping, ACL, 802.1X, RADIUS/TACACS+ authentication, Secure Boot, and QoS.
• Supports Omada SDN Controller integration, CLI, and SNMP for centralized and professional network management.
Key Features:
• 48-Port Gigabit Stackable L3 Managed PoE+ Switch
• 48 × Gigabit PoE+ RJ45 Ports
• 6 × 10G SFP+ Slots
• RJ45 / Type-C USB Console Port
• Dedicated Management Port
• 2 × USB 2.0 Ports
• 802.3at/af PoE Support
• Up to 1440W PoE Power Depending on Power Supply Module
• 1U 19-Inch Rack-Mountable Steel Case
• Omada SDN Controller Integration
• Stacking Support
• Static Routing
• RIP / OSPF / VRRP
• DHCP Server and DHCP Relay
• ERPS / RSPAN / QinQ / OAM
• sFlow / DDM
• 802.1Q VLAN
• STP / RSTP / MSTP
• IGMP Snooping
• 802.1p / DSCP QoS
• ACL Security Control
• 802.1X Authentication
• RADIUS / TACACS+ Authentication
• Secure Boot
• LACP Link Aggregation
• CLI / SNMP Management
• Dual Image / Configuration
• IPv6 Support
• Dual Redundant Power Supplies
Technical Specifications:
• Product Type: Stackable L3 Managed PoE+ Switch
• Brand: Omada
• Model: SG6654XHP
• Category: Omada PoE Switches
• Switching Layer: Layer 3 Managed
• PoE Ports: 48 × Gigabit PoE+ RJ45 Ports
• Uplink Ports: 6 × 10G SFP+ Slots
• Console Port: RJ45 / Type-C USB Console Port
• Management Port: Dedicated Management Port
• USB Ports: 2 × USB 2.0 Ports
• PoE Standard: 802.3at/af
• Maximum PoE Power: Up to 1440W, Depending on Power Supply Module
• Form Factor: 1U 19-Inch Rack-Mountable
• Case Material: Steel Case
• Centralized Management: Omada SDN Controller Integration
• Stacking: Supported
• Layer 3 Routing: Static Routing / RIP / OSPF / VRRP
• DHCP Features: DHCP Server / DHCP Relay
• High Availability: ERPS / VRRP / Stacking
• VLAN: 802.1Q VLAN / QinQ
• Spanning Tree: STP / RSTP / MSTP
• Multicast: IGMP Snooping
• QoS: 802.1p / DSCP QoS
• Security: ACL / 802.1X / RADIUS / TACACS+ Authentication / Secure Boot
• Monitoring: RSPAN / OAM / sFlow / DDM / SNMP
• Link Aggregation: LACP
• Management: CLI / SNMP / Omada SDN Controller
• System Reliability: Dual Image / Dual Configuration
• IPv6: Supported
• Power Design: Dual Redundant Power Supplies
• Application: Enterprise PoE Network / Wireless AP Deployment / CCTV Network / Aggregation Network
Applications:
• Enterprise PoE Networks
• Large CCTV and Surveillance Networks
• Wi-Fi Access Point Deployments
• IP Camera Power and Data Networks
• VoIP Phone Networks
• Office and Corporate Networks
• Hotel and Hospitality Networks
• Education and University Networks
• Server Room and Rack Installations
• Aggregation Layer Switching
• High-Speed Fibre Uplink Networks
• Omada SDN Managed Network Projects
Connect Gates Recommendation:
• Connect Gates recommends the Omada SG6654XHP for enterprise projects that require high PoE capacity, Layer 3 routing, stacking, and centralized management.
• Its 48 Gigabit PoE+ ports, 6 × 10G SFP+ uplinks, up to 1440W PoE power, Omada SDN integration, advanced routing features, enterprise security, VLAN, QoS, and dual redundant power supplies make it suitable for large CCTV systems, Wi-Fi access point deployments, hotels, campuses, office buildings, and professional enterprise networks
