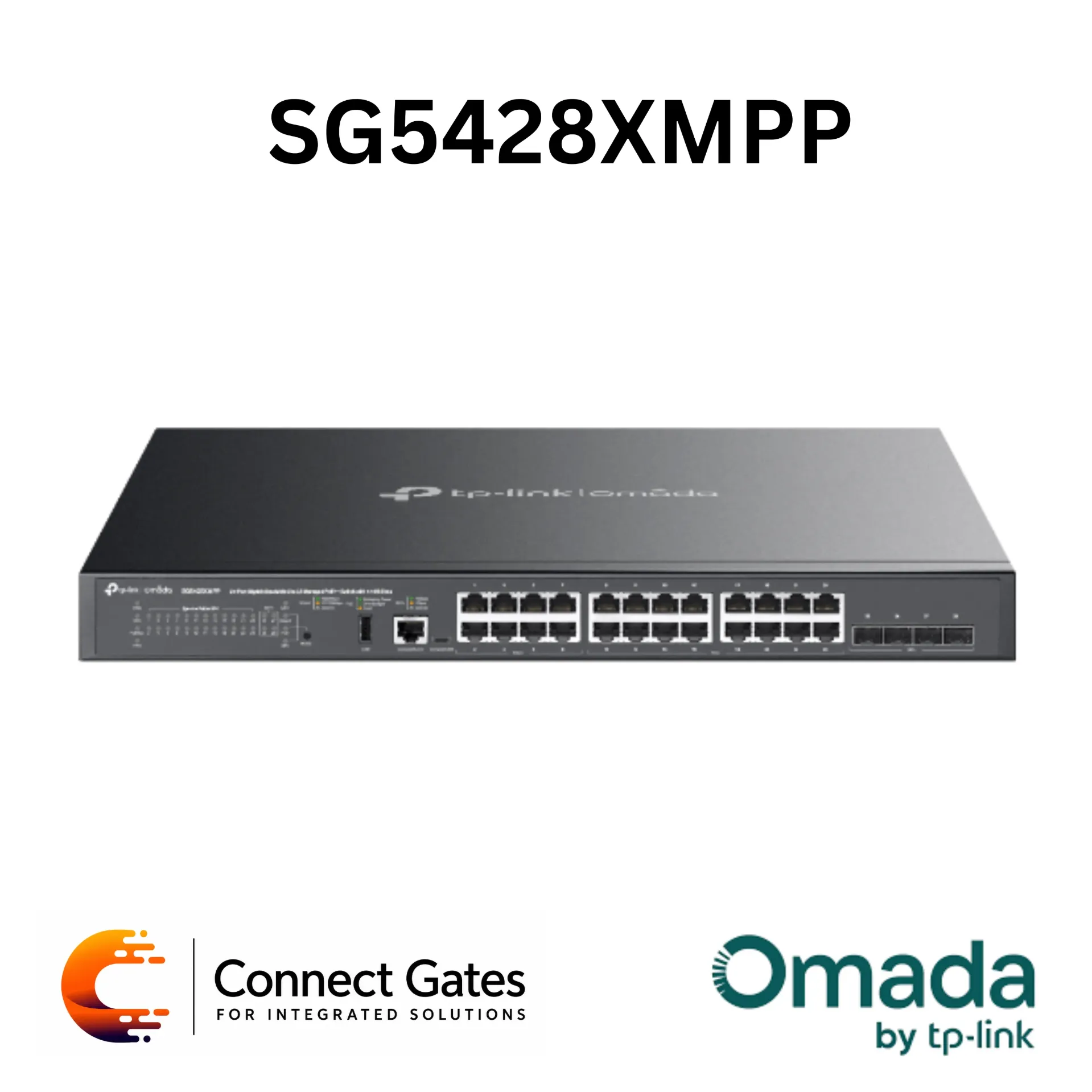

Omada SG5428XMPP – 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4 × 10G SFP+ Slots & 500W PoE Power
Overview:
• The Omada SG5428XMPP is a 24-port Gigabit stackable Lite L3 managed PoE++ switch designed for enterprise, CCTV, wireless, and high-power PoE network deployments.
• Provides 16 × Gigabit PoE+ ports and 8 × Gigabit PoE++ ports, supporting up to 90W per PoE++ port for high-power devices.
• Equipped with 4 × 10G SFP+ slots for high-speed fibre uplink, aggregation, and backbone connectivity.
• Supports 802.3bt/at/af PoE standards with a total PoE power budget of 500W.
• Built in a 1U 19-inch rack-mountable steel case for professional server room, rack, and enterprise installations.
• Supports centralized management through Omada SDN Controller with stacking support for scalable network expansion.
• Supports Lite Layer 3 and enterprise switching features including Static Routing, RIP, OSPF, ERPS, VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, QoS, ACL, and 802.1X authentication.
• Supports Fast PoE and Perpetual PoE to improve power delivery continuity for connected PoE devices.
Key Features:
• 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch
• 16 × Gigabit PoE+ Ports
• 8 × Gigabit PoE++ Ports
• Up to 90W per PoE++ Port
• 4 × 10G SFP+ Slots
• RJ45 / USB Type-C Console Port
• 1 × USB 2.0 Port
• 802.3bt / 802.3at / 802.3af PoE Support
• 500W Total PoE Power Budget
• 1U 19-Inch Rack-Mountable Steel Case
• Centralized Management by Omada SDN Controller
• Stacking Support
• Static Routing
• RIP / OSPF
• ERPS / OAM / DDM / sFlow
• Fast PoE
• Perpetual PoE
• 802.1Q VLAN
• QinQ
• STP / RSTP / MSTP
• IGMP Snooping
• 802.1p / DSCP QoS
• ACL Security Control
• 802.1X Authentication
• RADIUS / TACACS+ Authentication
• LACP Link Aggregation
• CLI / SNMP Management
• Dual Image / Configuration
• IPv6 Support
Technical Specifications:
• Product Type: Stackable Lite L3 Managed PoE++ Switch
• Brand: Omada
• Model: SG5428XMPP
• Category: Omada PoE Switches
• Switching Layer: Lite Layer 3 Managed
• PoE+ Ports: 16 × Gigabit PoE+ Ports
• PoE++ Ports: 8 × Gigabit PoE++ Ports
• Maximum PoE++ Output: Up to 90W per Port
• Uplink Ports: 4 × 10G SFP+ Slots
• Console Port: RJ45 / USB Type-C Console Port
• USB Ports: 1 × USB 2.0 Port
• PoE Standard: 802.3bt / 802.3at / 802.3af
• PoE Power Budget: 500W
• Form Factor: 1U 19-Inch Rack-Mountable
• Case Material: Steel Case
• Centralized Management: Omada SDN Controller
• Stacking: Supported
• Layer 3 Routing: Static Routing / RIP / OSPF
• High Availability: ERPS / Stacking
• PoE Reliability: Fast PoE / Perpetual PoE
• VLAN: 802.1Q VLAN / QinQ
• Spanning Tree: STP / RSTP / MSTP
• Multicast: IGMP Snooping
• QoS: 802.1p / DSCP QoS
• Security: ACL / 802.1X / RADIUS / TACACS+ Authentication
• Monitoring: OAM / DDM / sFlow / SNMP
• Link Aggregation: LACP
• Management: CLI / SNMP / Omada SDN Controller
• System Reliability: Dual Image / Dual Configuration
• IPv6: Supported
• Application: Enterprise PoE Network / High-Power PoE Deployment / CCTV Network / Wireless AP Deployment
Applications:
• Enterprise PoE Networks
• High-Power PoE Device Deployments
• Wi-Fi Access Point Networks
• IP Camera and CCTV Systems
• PTZ Camera Power and Data Networks
• VoIP Phone Networks
• Office and Corporate Networks
• Hotel and Hospitality Networks
• Education and Campus Networks
• Server Room and Rack Installations
• 10G Fibre Uplink Networks
• Omada SDN Managed Network Projects
Connect Gates Recommendation:
• Connect Gates recommends the Omada SG5428XMPP for enterprise projects that require high-power PoE++ support, 10G uplinks, Lite L3 features, and centralized network management.
• Its 16 Gigabit PoE+ ports, 8 Gigabit PoE++ ports up to 90W per port, 500W PoE budget, 4 × 10G SFP+ uplinks, Fast PoE, Perpetual PoE, Omada SDN management, VLAN, QoS, ACL, and stacking support make it suitable for CCTV systems, Wi-Fi access point deployments, PTZ cameras, hotels, campuses, and professional enterprise PoE networks.
