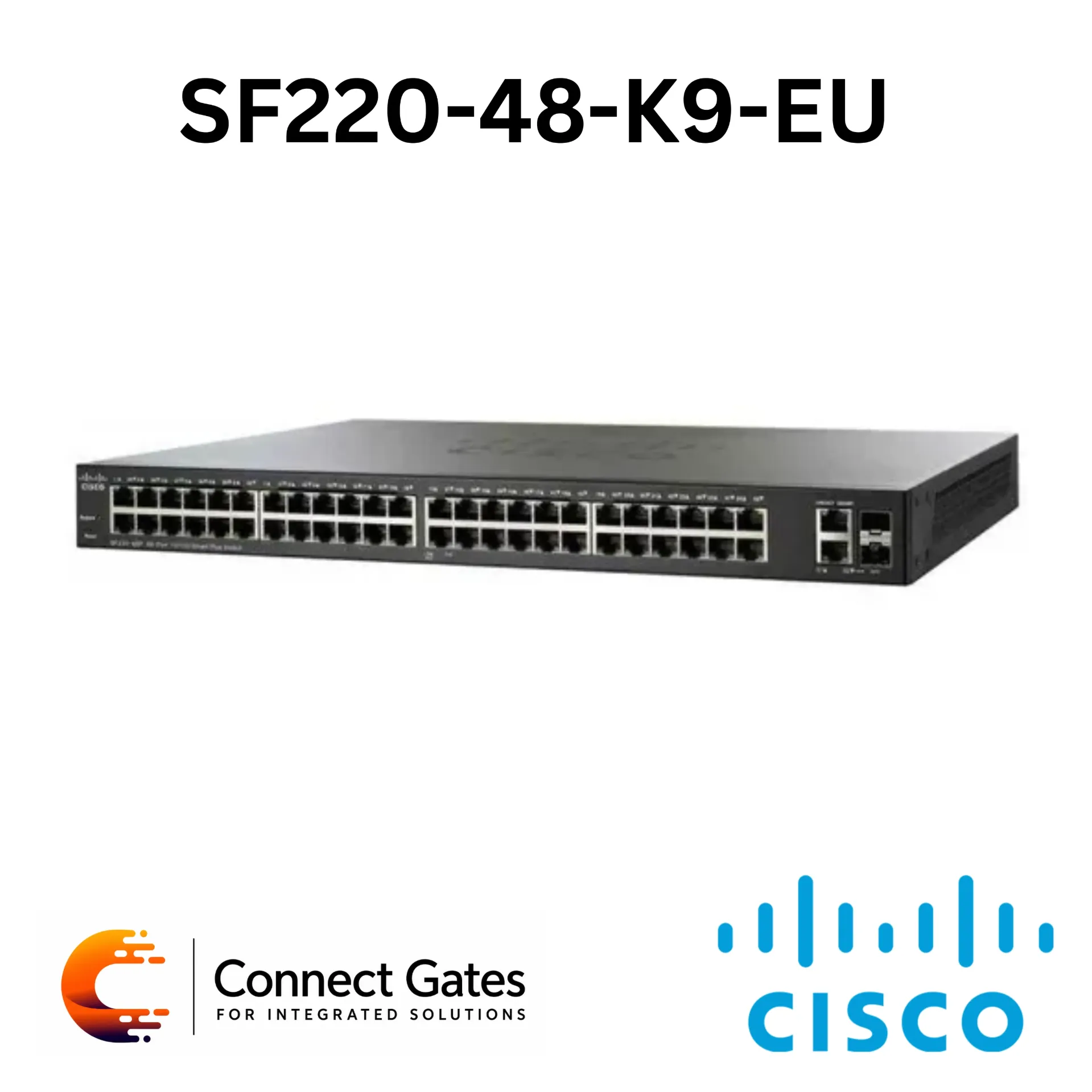

Cisco SF220-48-K9-EU – 48-Port Fast Ethernet Smart Switch with 2 × Gigabit Combo SFP Uplinks
Overview:
• The Cisco SF220-48-K9-EU is a 48-port Fast Ethernet smart managed switch designed for small business, office, CCTV, and access network deployments
• It provides 48 × 10/100 Fast Ethernet RJ-45 ports for connecting PCs, printers, DVR/NVR devices, access points, and network endpoints
• The switch includes 2 × Gigabit Ethernet combo uplink ports, supporting RJ-45/SFP connectivity for uplink flexibility
• It is part of the Cisco 220 Series Smart Plus switches, offering smart management, VLAN, QoS, security, and Layer 2 switching features
• Suitable for cost-effective business networks where Fast Ethernet access ports with Gigabit uplinks are required
Key Features:
• 48 × Fast Ethernet 10/100 RJ-45 ports
• 2 × Gigabit Ethernet combo uplink ports
• Smart managed switch
• Non-PoE switch for data connectivity
• Layer 2 switching features
• VLAN support
• QoS traffic prioritization
• ACL security support
• 802.1X authentication support
• Spanning Tree Protocol support
• IGMP snooping support
• Jumbo frame support
• Web-based management interface
• Rackmount 1U design
• Suitable for CCTV, office, and small business networks
Technical Specifications:
• Brand: Cisco
• Model: SF220-48-K9-EU
• Series: Cisco 220 Series Smart Plus
• Product Type: Smart Managed Fast Ethernet Switch
• Downlink Ports: 48 × 10/100BASE-TX
• Uplink Ports: 2 × Gigabit Ethernet Combo RJ-45/SFP
• PoE Support: No
• Switching Capacity: 13.6Gbps
• Management: Web-Based GUI
• Layer Support: Layer 2
• Features: VLAN / QoS / ACL / STP / IGMP Snooping / 802.1X
• Jumbo Frame: Supported
• Flash Memory: 32MB
• CPU Memory: 128MB
• Chassis Type: Desktop / Rackmount
• Chassis Height: 1U
• Regional Suffix: EU
• Recommended Use: SMB, CCTV, office, access networks and Fast Ethernet LAN deployments
Applications:
• Office wired network expansion
• CCTV DVR/NVR network connectivity
• Fast Ethernet access networks
• Router and printer connectivity
• Retail stores and professional offices
• Network racks and distribution cabinets
• Gigabit uplink connections using combo SFP ports
• Non-PoE smart managed LAN deployments
• SMB access layer networks
Connect Gates Recommendation:
• Recommended for projects that need a cost-effective 48-port smart managed Fast Ethernet switch without PoE
• Suitable for offices, CCTV networks, and access layers where endpoint speed requirements are 10/100Mbps with Gigabit uplink connectivity
• A practical choice when 48 Fast Ethernet ports, 2 × Gigabit combo SFP uplinks, smart management, VLAN, QoS, and security features are required
