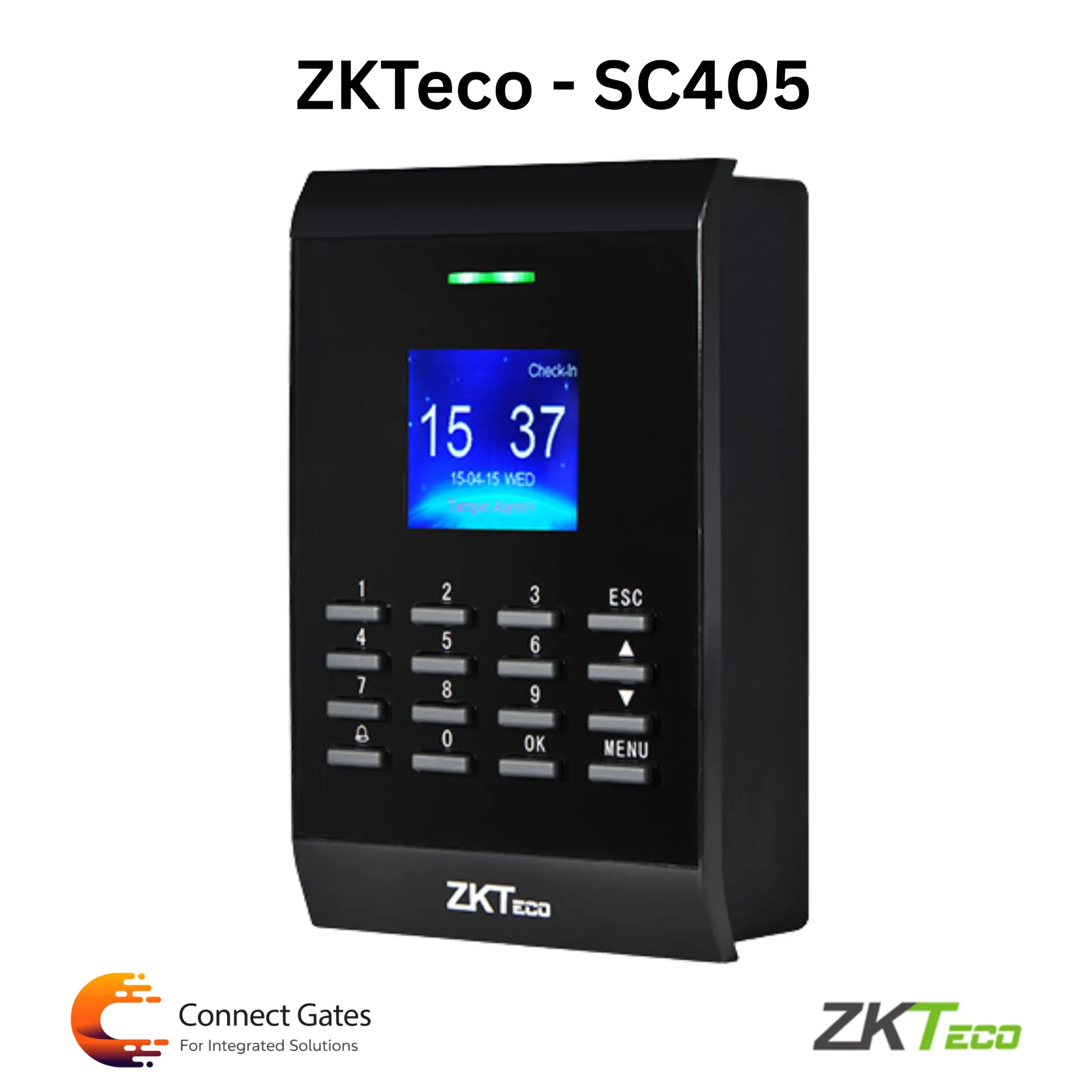

ZKTeco SC405 – RFID Standalone Access Control Terminal
📝 Description:
- The ZKTeco SC405 is a professional RFID access control terminal designed for secure door management and attendance tracking
- Supports multiple verification methods including RFID card, PIN, and password for flexible authentication
- Operates as a standalone access controller without requiring a permanent PC connection
- Ideal for offices, buildings, and secure access points requiring reliable RFID-based access control
⚙️ Technical Specifications:
- Verification Methods: RFID Card, PIN, Password
- Card Capacity: Up to 30,000 cards
- Transaction Capacity: Up to 100,000 records
- Display: 2.0-inch Color TFT LCD
- Communication: TCP/IP, RS485, USB Host
- Power Supply: DC 12V
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 20% to 80%
- Dimensions: 143 × 96 × 42 mm
🚀 Key Features:
- Multi-Verification Support: RFID, PIN, and password authentication
- Standalone Operation: Functions independently without PC connection
- USB Data Management: Supports offline data transfer via USB flash drive
- User-Friendly Interface: Color display with graphical menu system
- Enhanced Security Inputs: Supports wired detector / emergency switch integration
- Alarm Outputs: Includes tamper alarm and duress alarm support
- Flexible Networking: Supports TCP/IP and RS485 communication
- Full Access Control Integration: Compatible with electric lock, door sensor, exit button, and alarm systems
⚙️ Software Compatibility:
- Compatible with ZKBio CVAccess
- Compatible with ZKAccess 3.5
- Supports Standalone SDK Integration
🎯 Applications:
- Office Doors
- Building Entrances
- Employee Access Management
- RFID Access Control Systems
