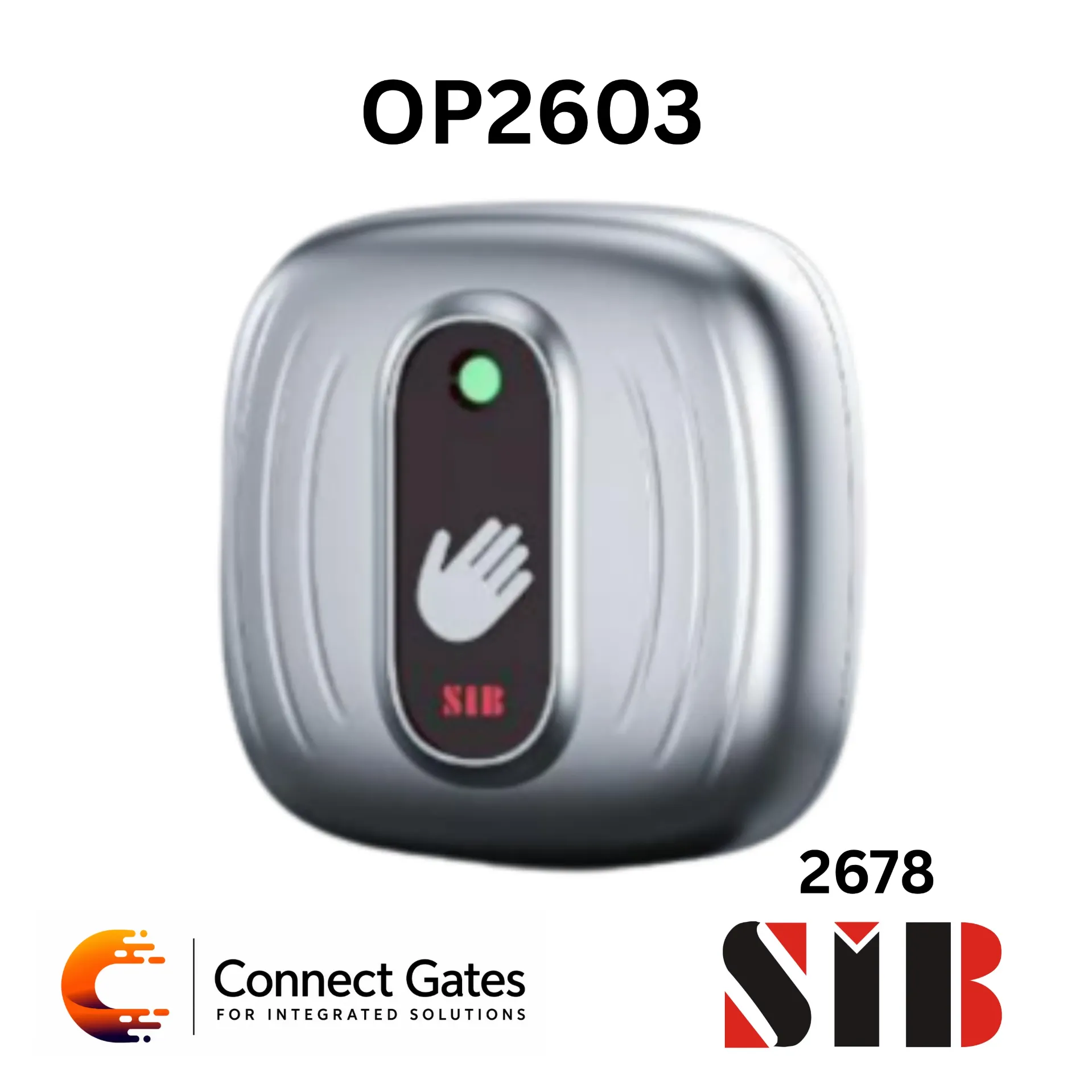

SIB OP2603 – No Touch Exit Button with 5cm Detection Range
Overview:
• The SIB OP2603 is a no touch exit button designed for hygienic and reliable door release operation in access control systems.
• Supports touchless detection, allowing users to open the door without physical contact.
• Designed with 5-terminal connection support including 12V+, GND, NO, COM, and NC.
• Provides a detection range of 5 cm for practical hands-free operation.
• Operates on 12V DC with 600mA current rating for standard access control door release installations.
• Suitable for offices, hospitals, clinics, commercial buildings, residential entrances, and access-controlled doors requiring clean and contactless exit operation.
Key Features:
• No Touch Exit Button
• Touchless Door Release Operation
• 5cm Detection Range
• 5-Terminal Connection
• NO / COM / NC Output Support
• 12V DC Operation
• 600mA Current Rating
• Compact 86 × 86 × 23 mm Design
• Suitable for Hygienic Access Control Installations
• Practical for Indoor Access Control Use
Technical Specifications:
• Product Type: No Touch Exit Button
• Model: OP2603
• Detection Type: Touchless / No Touch
• Detection Range: 5 cm
• Terminal Connection: 5 Terminals
• Connection Terminals: 12V+ / GND / NO / COM / NC
• Operating Voltage: 12V DC
• Current Rating: 600mA
• Dimensions: 86 × 86 × 23 mm
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 20% – 80%
Applications:
• Access Control Door Exit
• Office Door Release
• Hospital and Clinic Doors
• Commercial Building Entrances
• Residential Building Access
• Clean and Hygienic Door Release Points
• Staff-Only Restricted Areas
• Indoor Access Control Installations
Connect Gates Recommendation:
• Connect Gates recommends the SIB OP2603 for access control projects that require a simple and reliable contactless exit button.
• Its 5 cm detection range, NO/COM/NC terminals, compact 86 × 86 mm design, and 12V DC operation make it practical for offices, clinics, hospitals, commercial buildings, and residential access installations.
• It is a suitable choice for customers who need hygienic hands-free door release without smart WiFi application features.
