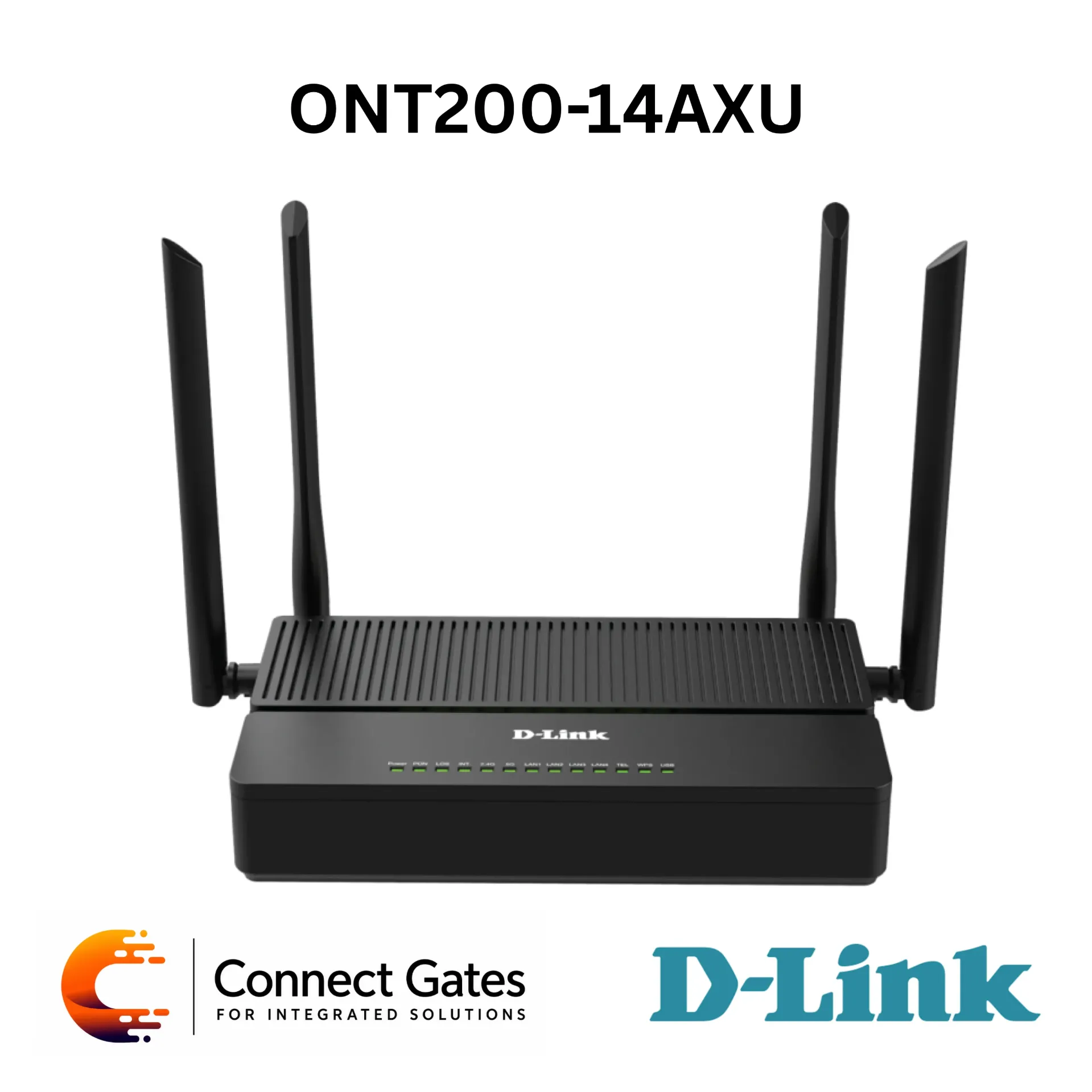

D-Link ONT200-14AXU – GPON ONT with Wi-Fi 6 Dual Band, 4 Gigabit LAN Ports, VoIP RJ-11, USB 2.0, OMCI Management & FTTH/FTTB/FTTO Support
Overview:
• The D-Link ONT200-14AXU is a GPON ONT designed for carrier-grade FTTH, FTTB, and FTTO access network applications.
• It supports pure data, Wi-Fi, VoIP, and multiple service access types through a single optical network terminal.
• The device supports standard OMCI management and complies with ITU-T G.984 GPON standards.
• GPON interface provides high-speed optical access with up to 2.488Gbps downstream and 1.244Gbps upstream.
• Wi-Fi 6 dual-band wireless provides up to 574Mbps on 2.4GHz and up to 2400Mbps on 5GHz for fast home and office wireless connectivity.
• Four Gigabit Ethernet LAN ports allow high-speed wired connectivity for PCs, switches, IPTV devices, access points, NVRs, smart TVs, and other network devices.
• The RJ-11 VoIP port supports voice services with SIP-based calling and common voice codecs.
• USB 2.0 port adds extra connectivity flexibility for supported USB functions.
• Suitable for ISP deployments, fiber-to-the-home networks, residential broadband, small offices, VoIP service, IPTV, and high-speed Wi-Fi access.
Key Features:
• GPON ONT Terminal
• Designed for FTTH / FTTB / FTTO Networks
• Carrier-Grade FTTH Network Applications
• GPON WAN Optical Interface
• GPON Downlink Speed up to 2.488Gbps
• GPON Uplink Speed up to 1.244Gbps
• ITU-T G.984 GPON Standard Support
• Standard OMCI Management
• Wi-Fi 6 Dual Band Wireless
• 2.4GHz Wi-Fi Speed up to 574Mbps
• 5GHz Wi-Fi Speed up to 2400Mbps
• 4 × 10/100/1000BASE-T Gigabit RJ45 LAN Ports
• 1 × RJ-11 VoIP Port
• 1 × USB 2.0 Port
• 1 × Giga Optical Interface APC or UPC
• WPA / WPA2 / WPA3 Security
• 64/128-bit WEP Encryption
• Firewall and DoS Protection
• VLAN Tagging / Untagging Support
• Dynamic Bandwidth Allocation DBA
• GPON Encapsulation Method GEM Support
• AES Downstream and FEC DS/US Configurable
• WAN Static IP / DHCP Client / PPPoE Support
• VoIP Codec Support
• Web GUI Management
• TR-069 Support
• Firmware Upgrade via FTP / TFTP / HTTP
Technical Specifications:
• Product Type: GPON ONT
• Brand: D-Link
• Model: ONT200-14AXU
• Access Type: FTTH / FTTB / FTTO
• GPON Standard: ITU-T G.984
• GPON Downstream Rate: Up to 2.488Gbps
• GPON Upstream Rate: Up to 1.244Gbps
• Optical Interface: 1 × Giga Optical Interface APC or UPC
• Downstream Wavelength: 1490nm
• Upstream Wavelength: 1310nm
• PMD Class: Class B+
• Physical Distance: Up to 20km
• Dynamic Bandwidth Allocation: Supported
• GPON Encapsulation: GEM Ethernet Packet Support
• T-CONT Support: Up to 8 T-CONTs with Priority Queues
• CPU: 1.0GHz ARM CA53 Dual-Core CPU, 256K L2 Cache
• Chip Model: EN7529CT
• Memory: NAND Flash 1Gbit 128MB / DDR3 4Gbit 512MB
• Wi-Fi Chip: MTK7916AN + MTK7976DN
• Bob Driver: EN7571N
• Wireless Standard 2.4GHz: IEEE 802.11n/ax 2T2R
• Wireless Standard 5GHz: IEEE 802.11ac/ax 2T2R
• 2.4GHz Wi-Fi Speed: Up to 574Mbps
• 5GHz Wi-Fi Speed: Up to 2400Mbps
• Frequency Band: 2.4GHz 40MHz / 5.8GHz 160MHz
• LAN Ports: 4 × 10/100/1000 Auto MDI/MDI-X RJ45 Ports
• VoIP Port: 1 × RJ-11 Port
• USB Port: 1 × USB 2.0
• Buttons: WPS / WLAN / Reset
• LED Indicators: Power, PON, LOS, INT, 2.4G WLAN, 5G WLAN, LAN1-4, TEL, WPS, USB
• Antenna Configuration: 1 × 2.4GHz 5dBi External Antenna, 2 × 5GHz 5dBi External Antennas, 1 × 2.4GHz & 5GHz 3dBi External Antenna
• Ethernet Standard: IEEE 802.3 10/100/1000 Base-T Ethernet
• Auto Negotiation: ANSI / IEEE 802.3 NWay
• VLAN Support: 802.1Q VLAN Tagging / Untagging
• Traffic Classification: Flexible Traffic Classification Supported
• VLAN Stacking: Supported
• Security: WPA, WPA2, WPA3, 64/128-bit WEP
• Firewall: Supported
• DoS Protection: Supported
• WAN Networking: Static IP, DHCP Client, PPPoE
• VoIP Codecs: G.711A/μ, G.729, G.722
• Fax Mode: T.30 / T.38 / G.711
• DTMF / Emergency Calls: Supported with SIP Protocol
• Management: Standard OMCI G.984.4, Web GUI HTTP/HTTPS, Telnet, Web, SSH, CLI via Telnet/Console, TR-069
• Firmware Upgrade: FTP / TFTP / HTTP
• Configuration: Backup / Restore Supported
• Power Supply: DC 12V / 1.5A
• Product Size: 204.7 × 121.4 × 37.7 mm
• Working Temperature: 0°C to 40°C
• Working Humidity: 5% to 95%
• Certification: CE / Wi-Fi Certification
Applications:
• FTTH residential broadband networks
• FTTB building fiber access
• FTTO office fiber deployment
• ISP customer premises equipment CPE
• GPON optical internet service
• Wi-Fi 6 home internet access
• Small office fiber internet access
• VoIP telephone service over fiber
• IPTV and multimedia network access
• High-speed wired connection for PCs and smart TVs
• Network connectivity for switches, access points and NVRs
• Triple-play service deployment: Internet, Wi-Fi and Voice
Connect Gates Recommendation:
• Recommended for fiber internet deployments that require GPON access, Wi-Fi 6 dual-band wireless, Gigabit LAN ports, VoIP support, and OMCI management.
• Suitable for ISPs, FTTH projects, residential buildings, small offices, and customers who need a powerful ONT with integrated Wi-Fi 6 and voice service support.
