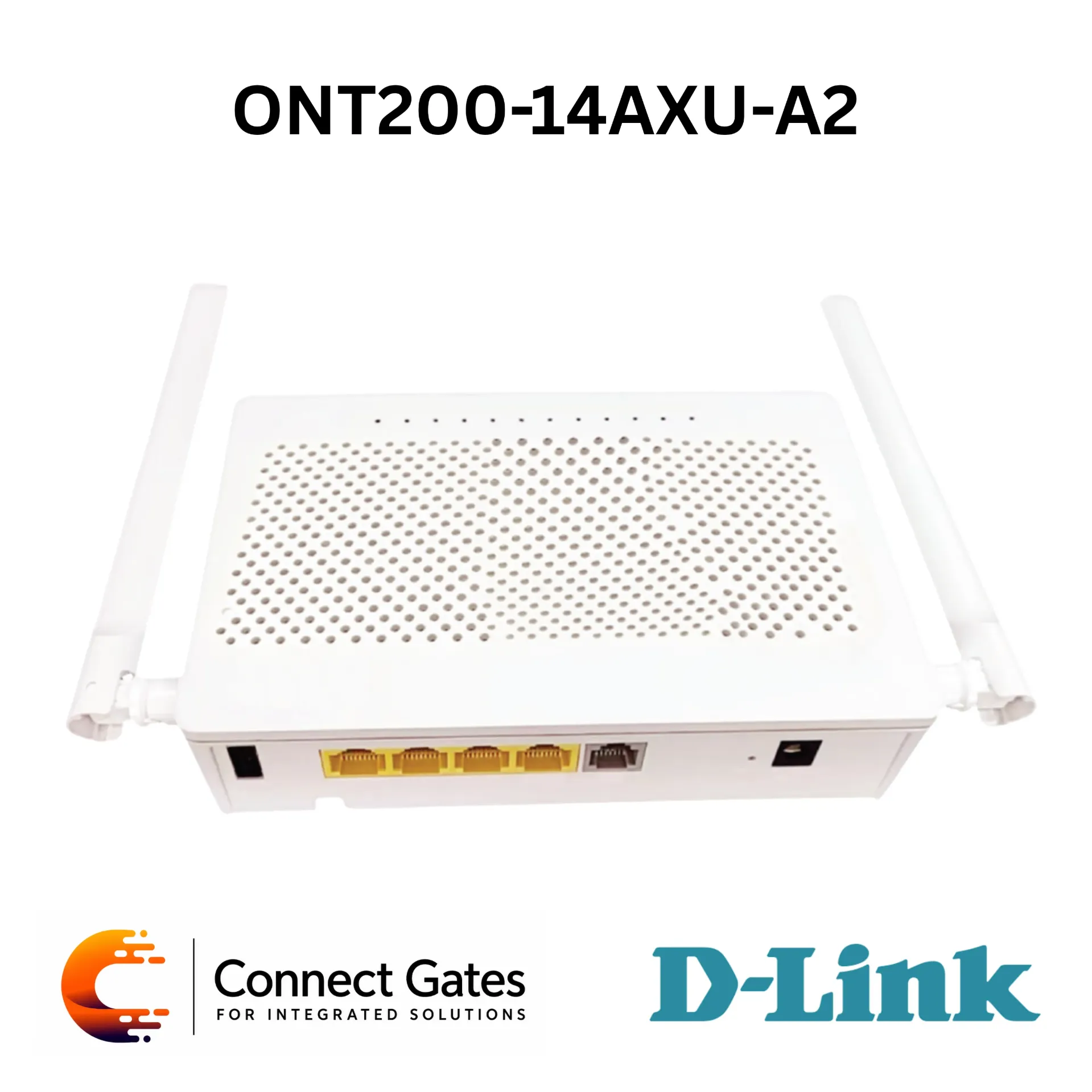

D-Link ONT200-14AXU-A2 – GPON ONT with Wi-Fi 6 Dual Band AX3000, 4 × Gigabit LAN Ports, VoIP, USB 2.0 & OMCI / TR-069 Management
Overview:
• The D-Link ONT200-14AXU-A2 is a GPON ONT terminal designed for FTTH, FTTB, FTTO, and carrier-grade fiber access network applications.
• It supports GPON WAN connectivity with up to 1.244Gbps uplink and 2.488Gbps downlink link speed, providing high-speed fiber internet access.
• The device includes 4 × 10/100/1000BASE-T Gigabit Ethernet RJ45 ports, 1 × RJ-11 VoIP port, and 1 × USB 2.0 port, making it suitable for internet, voice, IPTV, and gateway services.
• It supports 802.11ax dual-band Wi-Fi, with 2.4GHz speed up to 574Mbps and 5GHz speed up to 2400Mbps, offering strong wireless performance for modern home and business users.
• The ONT supports standard OMCI, TR-069, Web, OAM, and Telnet management, with features such as Router / Bridge mode, PPPoE, DHCP, Static IP, NAT, NAPT, UPnP, and IGMP Snooping / Proxy.
Key Features:
• GPON ONT terminal
• Hardware version A2
• GPON WAN port
• 1.244Gbps uplink speed
• 2.488Gbps downlink speed
• 4 × Gigabit Ethernet RJ45 LAN ports
• Dual-band Wi-Fi 6 support
• 2.4GHz Wi-Fi speed up to 574Mbps
• 5GHz Wi-Fi speed up to 2400Mbps
• 2T2R wireless support
• VoIP support
• 1 × RJ-11 voice port
• 1 × USB 2.0 port
• Standard OMCI support
• Router and Bridge mode
• PPPoE, DHCP and Static IP support
• Internet, VoIP, IPTV and TR-069 services
• NAT, NAPT and UPnP support
• IGMP v2 / v3 support
• IGMP Snooping / Proxy
• Web, OAM and Telnet management
• CE certified
Technical Specifications:
General:
• Brand: D-Link
• Model: ONT200-14AXU-A2
• Product Type: GPON ONT
• Hardware Version: A2
• Application: FTTH, FTTB, FTTO and Carrier-Grade Fiber Access Networks
• Access Type: Pure Data, Wi-Fi, VoIP, IPTV and Gateway Services
CPU and Memory:
• CPU: 1.0GHz ARM CA53 Dual-Core CPU
• L2 Cache: 256K
• Chip Model: EN7529CT
• Memory: NAND Flash 2Gbit / 256MB
• DDR: 4Gbit / 512MB
• Wi-Fi Chip: MTK7916AN + MTK7976DN
Interfaces:
• WAN Interface: One Giga Optical Interface APC or UPC
• LAN Ports: 4 × 10/100/1000 Auto MDI/MDI-X RJ45 Ports
• VoIP Port: 1 × RJ-11 Port
• USB Port: 1 × USB 2.0
XPON / GPON Specifications:
• Downstream Speed: 2.488Gbps for GPON Mode / 1.244Gbps for EPON Mode
• Upstream Speed: 1.244Gbps
• Connector: SC/UPC or SC/APC, Pigtail, G.652 Single Mode Fiber
• Downstream Wavelength: 1490nm
• Downstream Sensitivity: -27dBm
• Downstream Saturation: -9dBm
• Upstream Wavelength: 1310nm
• Upstream TX Power: 0.5 to 5dBm
• Upstream RMS: 0.5nm
Wi-Fi Specifications:
• Wi-Fi Standard 2.4GHz: 802.11b/g/n/ax
• Wi-Fi Standard 5GHz: 802.11a/n/ac/ax
• 2.4GHz Speed: Up to 574Mbps
• 5GHz Speed: Up to 2400Mbps
• 2.4GHz Transmit Power: 100mW
• 5GHz Transmit Power: 200mW
• 2.4GHz Antenna Gain: 5dBi
• 5GHz Antenna Gain: 4.5dBi
VoIP Specifications:
• Voice Codec: G.711A / G.711U / G.729 / G.722
• Fax Mode: T.30 / T.38 / G.711
• DTMF: Supported
• Emergency Calls: Supported with SIP Protocol
• Call Features: Call Waiting, Unconditional Call Forward, Call Forward if Busy, Call Forward if No Reply, Three-Party Calls
• SDP Protocol: RFC 2327 and RFC 4566
XPON Features:
• Standards: ITU-T G.984.x and IEEE 802.3ah
• FEC: Forward Error Correction in Both Upstream and Downstream
• Bandwidth Reporting: Dynamic Bandwidth Status Report
• Upstream Mapping: 802.1p Mapper for Upstream
• QoS Scheduling: SP or WRR Between GEM Port and T-CONT
• Multicast Support: Downstream Multicast GEM Port and Broadcast GEM Port
Ethernet Features:
• Auto-Speed: Supported
• Auto MDI/MDIX: Supported
• Internal L2 Switch: Supported
• VLAN Processing: Supported
• Flow Classification: Supported
• Packet Filtering: Supported
Gateway Features:
• WAN Mode: Router and Bridge Mode
• Router Mode: PPPoE / DHCP / Static IP
• WAN Services: Internet, VoIP, IPTV, TR-069
• LAN IP: DHCP and Static IP Support
• NAT: Supported
• NAPT: Supported
• UPnP: Supported
OAM and Management:
• OAM Standard: Standard OAM Embedded Operations Channel Compliant with IEEE 802.3ah
• TR-069: Supported
• TR-098 / TR-140: Supported
• Service Configuration: Ethernet, VoIP, WLAN and Other Services
• Alarm Reporting: Supported
• Performance Monitoring: Supported
• Remote Software Upgrade: Supported Through OAM
• Management Methods: Web, OAM and Telnet
• Management IP: Supported
• Factory Reset: Reset Button or Web UI
• Real-Time Statistics: Supported
• Optical Diagnostic: Supported
IGMP:
• IGMP Version: IGMP v2 / v3
• IGMP Snooping: Supported
• IGMP Proxy: Supported
Certification:
• Certification: CE
Applications:
• FTTH fiber internet services
• FTTB and FTTO access networks
• Carrier-grade GPON access projects
• Home fiber internet gateway
• Small office fiber gateway
• Wi-Fi 6 internet access
• VoIP telephone service
• IPTV service delivery
• Router or bridge mode deployments
• TR-069 managed ONT networks
Connect Gates Recommendation:
• Connect Gates recommends the D-Link ONT200-14AXU-A2 for fiber access projects that require a GPON ONT with Wi-Fi 6, Gigabit LAN, and VoIP support.
• It is suitable for FTTH home users, small offices, and service provider deployments that need internet, voice, IPTV, and remote management in one device.
• The combination of GPON 2.488Gbps downlink, AX3000 dual-band Wi-Fi, 4 Gigabit LAN ports, and RJ-11 VoIP makes it a practical ONT solution for modern fiber networks.
• For proper installation, Connect Gates recommends checking the fiber connector type, OLT compatibility, GPON profile, Wi-Fi coverage, VoIP configuration, TR-069 settings, and required service mode before deployment.
