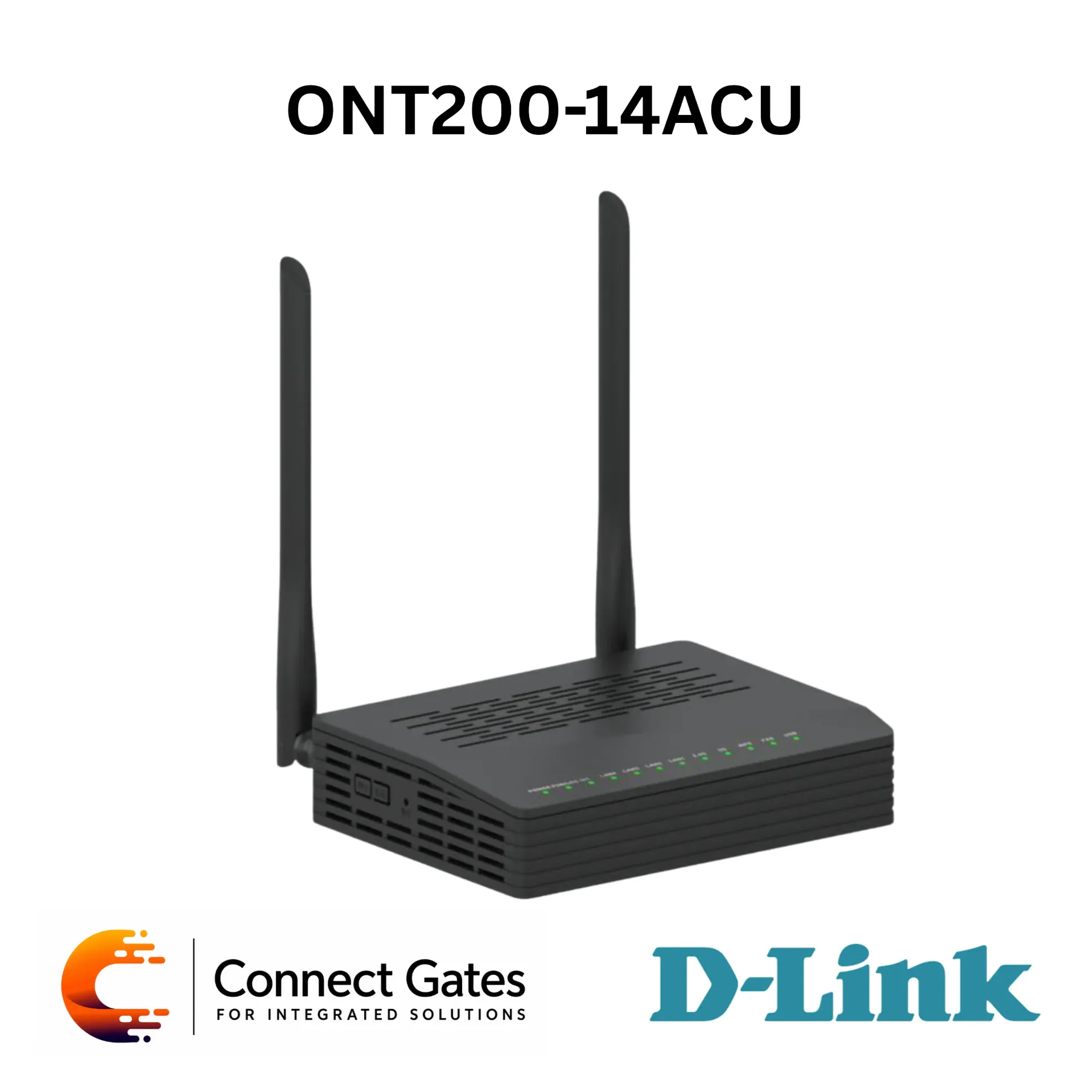

D-Link ONT200-14ACU – GPON ONT with AC1200 Dual-Band Wi-Fi, 4 × Gigabit LAN Ports, 1 × POTS Voice Port, USB 2.0 & OMCI Management

• The D-Link ONT200-14ACU is a GPON ONT designed for FTTH, FTTB, FTTO, and carrier-grade fiber access network applications.

• It supports GPON WAN with 1.244Gbps uplink and 2.488Gbps downlink link speed, in addition to Active Ethernet WAN with 1.25Gbps bi-directional link speed.

• The device provides 4 × 10/100/1000BASE-T Gigabit RJ45 LAN ports, 1 × FXS RJ11 voice port, and 1 × USB 2.0 port for internet, voice, and USB service applications.

• It supports dual-band AC1200 Wi-Fi, with 2.4GHz speed up to 300Mbps and 5GHz speed up to 867Mbps, using 2T2R wireless technology.

• The ONT supports standard OMCI, Web GUI, Telnet, SSH, VLAN tagging, PPPoE, DHCP, Static IP WAN, WPA/WPA2/WPA3, and VoIP features such as call waiting, call forwarding, call transfer, and three-way conference.

• GPON ONT terminal

• 4GE + 1POTS + AC1200 Wi-Fi + USB2.0

• GPON WAN port

• Active Ethernet WAN support

• 1.244Gbps uplink GPON speed

• 2.488Gbps downlink GPON speed

• 4 × Gigabit Ethernet RJ45 LAN ports

• Dual-band AC1200 Wi-Fi

• 2.4GHz Wi-Fi up to 300Mbps

• 5GHz Wi-Fi up to 867Mbps

• 2T2R wireless support

• 1 × FXS RJ11 voice port

• 1 × USB 2.0 port

• OMCI management support

• Web GUI, Telnet and SSH management

• WPA/WPA2/WPA3 security

• VLAN tagging and un-tagging

• VoIP and fax support

• CE / FCC certification

• Brand: D-Link

• Model: ONT200-14ACU

• Product Type: GPON ONT

• Description: 4GE + 1POTS + AC1200 Wi-Fi + USB2.0 ONT

• Application: FTTH, FTTB, FTTO and Carrier-Grade Fiber Access Networks

• Supported Services: Pure Data, Data + Voice, Data + Voice + Wi-Fi

• CPU: Dual-Core 900MHz CPU

• Chip Model: EN7528

• Flash / RAM: NAND Flash 1Gbit / 128MB, 2G DDR3 RAM

• BOB Driver: EN7571

• Wi-Fi Chip: MT7592N + MT7613B

• SLIC: Si32192

• WAN Interface: One Giga Optical Interface APC

• LAN Ports: 4 × 10/100/1000 Auto MDI/MDI-X RJ45 Ports

• Wireless: 2 × 5dBi Dual-Band External Antennas

• FXS: One FXS RJ11 Port

• USB: One USB 2.0 Host Port

• Power Supply: 12V DC, 1.5A

• GPON Standard: ITU-T G.984

• G.984.1: General Characteristics

• G.984.2: Physical Media Dependent Layer Specifications

• G.984.3: Transmission Convergence Layer Specifications

• G.984.4: ONT Management and Control Interface Specification

• Downstream / Upstream Rate: 2.488Gbps / 1.244Gbps

• Wavelength: 1490nm Downstream / 1310nm Upstream

• PMD Class: Class B+

• Physical Distance: Up to 20km

• Dynamic Bandwidth Allocation: Supported

• GEM: GPON Encapsulation Method Supports Ethernet Packet

• FEC: Configurable AES DS and FEC DS / US

• T-CONT: Up to 8 T-CONTs with Priority Queues

• Ethernet: 802.3 10BASE-T

• Fast Ethernet: 802.3u 100BASE-TX

• Gigabit Ethernet: 802.3z 1000BASE-TX

• Auto-Negotiation: ANSI / IEEE 802.3 NWay

• 2.4GHz Wireless LAN: 802.11b/g/n up to 300Mbps

• 5GHz Wireless LAN: 802.11a/n/ac up to 867Mbps

• VLAN: 802.1Q VLAN Tagging / Un-Tagging

• Traffic Classification: Supported

• VLAN Stacking: Supported

• VLAN Intelligent Bridging: Supported

• Cross Connect Mode: Supported

• Wi-Fi Type: Dual-Band AC1200

• 2.4GHz Speed: Up to 300Mbps

• 5GHz Speed: Up to 867Mbps

• Frequency Bands: 2.4GHz and 5.8GHz

• Antennas: 2 × 5dBi Dual-Band External Antennas

• Codecs: G.711 A/U, G.723, G.726

• DTMF Tone: Detection and Generation

• Fax Support: T.38 Fax Relay, T.30

• Internal Call: Supported

• Call Waiting: Supported

• Call Forwarding: Supported

• Call Transfer: Supported

• Call Hold / Retrieve: Supported

• Three-Way Conference: Supported

• Second Call / Adding Outgoing Call: Supported

• Switch Between 2 Active Calls: Supported

• Wi-Fi Security: WPA / WPA2 / WPA3

• Encryption: 64 / 128-bit WEP Data Encryption

• Firewall: Supported

• DoS Protection: Supported

• Static IP WAN Connection: Supported

• DHCP Client WAN Connection: Supported

• PPPoE WAN Connection: Supported

• OMCI: Standard OMCI G.984.4

• Web GUI: HTTP / HTTPS

• Firmware Upgrade: FTP / TFTP / HTTP

• Access Methods: Telnet, Web, SSH

• CLI: Telnet / Console

• Administration Privilege: Two-Level Administration for Web Configuration

• Configuration Backup / Restore: Supported

• Power Adapter Input: 100–240VAC, 50/60Hz

• Whole Machine Power Supply: 12V / 1.5A DC

• Working Temperature: -10°C to 50°C

• Working Humidity: 0% to 90%

• LED Indicators: Power, PON, LOS, Internet, 2.4G WLAN, 5G WLAN, LAN1~4, Phone, USB, WPS

• Product Size: 150 × 142 × 36mm

• Certification: CE / FCC

• FTTH fiber internet services

• FTTB and FTTO access networks

• Home fiber gateway

• Small office fiber gateway

• AC1200 Wi-Fi access

• VoIP telephone service

• IPTV and data service delivery

• PPPoE, DHCP and Static IP WAN connections

• Carrier-grade GPON access networks

• OMCI-managed ONT deployments

• Connect Gates recommends the D-Link ONT200-14ACU for fiber access projects that need a reliable GPON ONT with AC1200 Wi-Fi, Gigabit LAN, and voice service support.

• It is suitable for home users, small offices, and service provider FTTH deployments requiring internet, voice, Wi-Fi, and USB service support.

• The combination of GPON 2.488Gbps downlink, AC1200 dual-band Wi-Fi, 4 Gigabit LAN ports, and POTS voice port makes it practical for modern fiber broadband installations.

• For proper installation, Connect Gates recommends checking the fiber connector type, OLT compatibility, GPON profile, Wi-Fi coverage, VoIP settings, WAN mode, and required service configuration before deployment.
