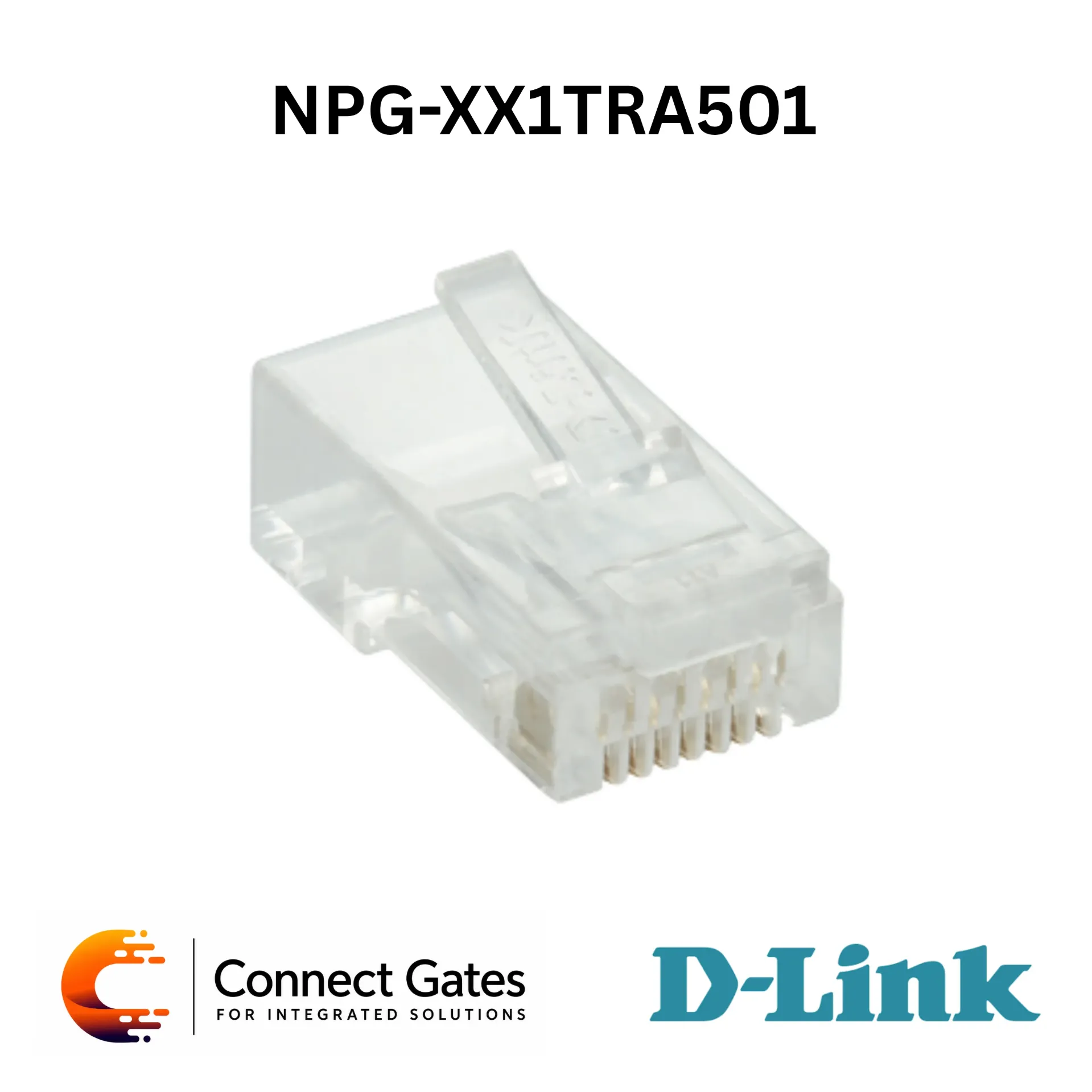

D-Link NPG-XX1TRA501 – RJ45 UTP Modular Plugs for Cat5E / Cat6 Structured Cabling, 100 Units Pack
Overview:
• The D-Link NPG-XX1TRA501 series includes RJ45 UTP modular plugs designed for structured cabling installations
• Available versions support Cat5E and Cat6 UTP network cables
• Each pack includes 100 transparent RJ45 modular plugs
• The plugs support 4 twisted pairs and T568A / T568B wiring schemes
• Suitable for professional network cable termination, patch cord preparation, and field installation work
• Transparent polycarbonate housing helps with visual inspection during termination
Key Features:
• RJ45 UTP modular plugs for Cat5E and Cat6 cables
• Supports 4 twisted pairs
• Transparent housing for easy inspection
• 100 units per pack
• Compatible with T568A and T568B wiring schemes
• Phosphor bronze contact terminals
• 50 micro-inch gold plating over nickel plated contact area
• Supports 24–26 AWG stranded wires
• Operating temperature from -40°C to 80°C
• Suitable for structured cabling and network cable termination
Technical Specifications:
• Series Model: NPG-XX1TRA501
• Available Models: NPG-5E1TRA501-100 / NPG-C61TRA501-100
• Product Type: RJ45 UTP Modular Plugs
• Cable Category: Cat5E UTP / Cat6 UTP
• Pack Quantity: 100 Units / Pack
• Color: Transparent
• Housing Material: Polycarbonate, 94V-2
• Contact Terminal: Phosphor Bronze
• Contact Finish: 50 micro-inch Gold Plating over 50 micro-inch Nickel Plating
• Wire Support: 24–26 AWG Stranded Wires
• Wiring Scheme: T568A / T568B
• Twisted Pair Support: 4 Pairs
• Cable to Plug Tensile Strength: 7.7 kg
• Operating Temperature: -40°C to 80°C
Applications:
• Cat5E and Cat6 network cable termination
• Patch cord preparation
• Structured cabling installations
• Data cabinets and network rooms
• Office and commercial network infrastructure
• CCTV and low-current network cabling projects
Connect Gates Recommendation:
• Connect Gates recommends the D-Link NPG-XX1TRA501 series for reliable RJ45 termination in structured cabling projects, especially when preparing custom-length patch cords or terminating UTP cables on-site
• The transparent housing and gold-plated contacts make it suitable for professional installations requiring clean termination and stable connectivity
