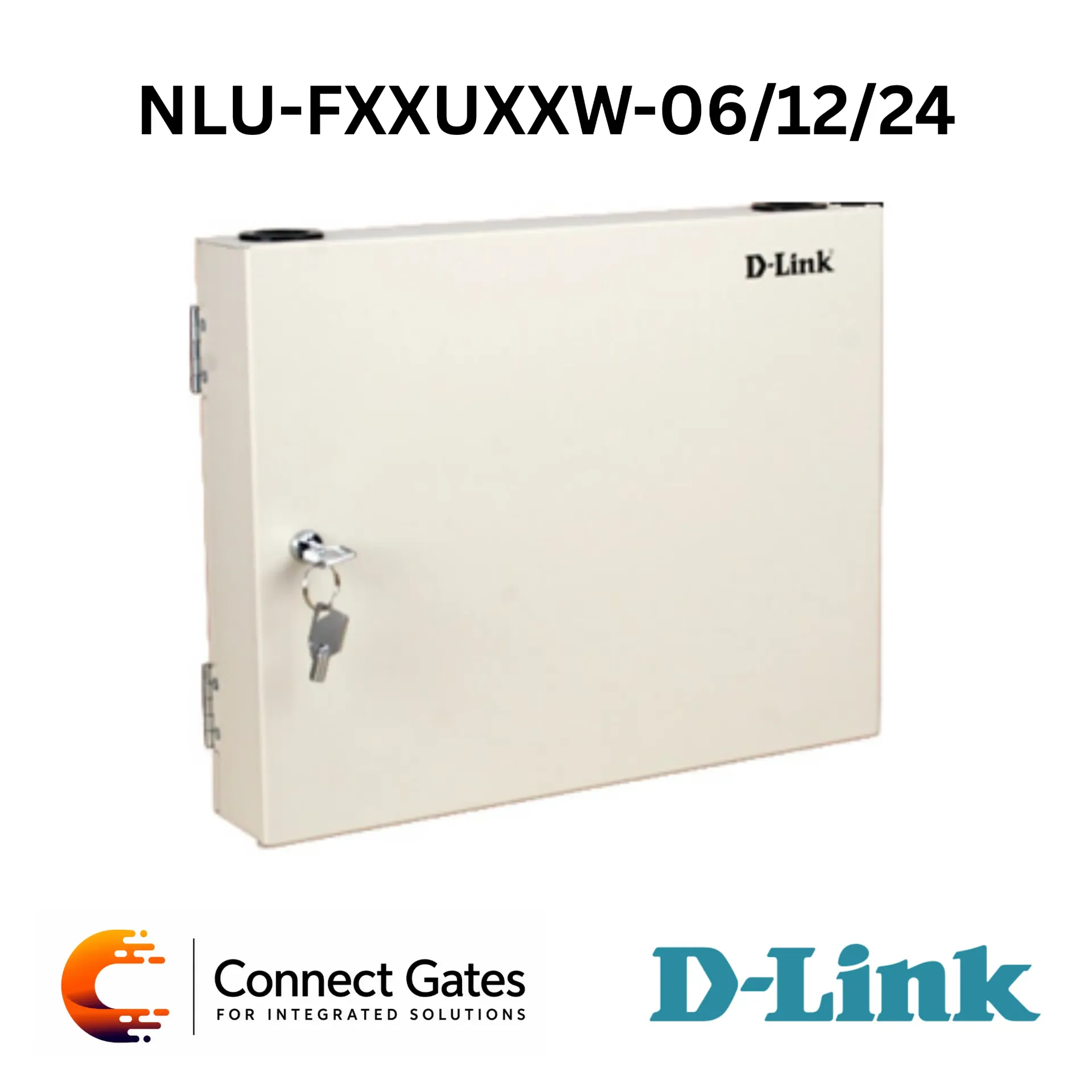

D-Link NLU-FXXUXXW-06/12/24 – Wall Mounted Fiber Panel with 6/12/24 Port Options, Unloaded Design, LC/SC/ST/FC Support & Front Door Access
Overview:
• The D-Link NLU-FXXUXXW-06/12/24 is a wall mounted fiber panel designed for professional fiber optic termination, splicing and cable management
• It is available in unloaded configuration, allowing the installer to add the required fiber adapter panels according to the project design
• The panel supports maximum 24 ports for LC/SC terminations and maximum 12 ports for ST/FC terminations
• Front door design provides easy access for fiber operation, expansion and maintenance
• Simplex and duplex fiber connections are supported depending on the selected adapters
• Suitable for wall-mounted fiber distribution points in CCTV, LAN, telecom and structured cabling projects
Key Features:
• Wall mounted fiber panel
• Available in 6 / 12 / 24 port options
• Unloaded configuration
• Requires fiber adapter panel for full connectivity
• Supports LC / SC / ST / FC adapter panels
• Up to 24 LC / SC terminations
• Up to 12 ST / FC terminations
• Simplex and duplex connection support
• Front door for easy operation
• Designed for fiber expansion and maintenance
• Suitable for splicing and termination
• Compact wall-mounted design
• Suitable for structured fiber cabling systems
Technical Specifications:
• Model: NLU-FXXUXXW-06/12/24
• Product Type: Wall Mounted Fiber Panel
• Mounting Type: Wall mounted
• Configuration: Unloaded
• Port Options: 6 / 12 / 24 ports
• Adapter Requirement: Fiber adapter panel required for full connectivity
• Adapter Compatibility: LC / SC / ST / FC
• Maximum LC / SC Terminations: 24 ports
• Maximum ST / FC Terminations: 12 ports
• Connection Type: Simplex / Duplex
• Access Design: Front door
• Function: Fiber splicing, termination, patching and management
• Ordering Codes: NLU-FXXUXXW-06 / NLU-FXXUXXW-12 / NLU-FXXUXXW-24
Applications:
• Wall-mounted fiber distribution points
• CCTV fiber transmission systems
• Telecom rooms and small data rooms
• LAN fiber backbone networks
• FTTH and FTTx distribution points
• Fiber optic termination boxes
• Office and commercial building fiber networks
• Factory and warehouse fiber cabling
• Projects requiring compact wall-mounted fiber management
Connect Gates Recommendation:
• Recommended for fiber projects that require a compact wall-mounted LIU for organized fiber termination, splicing and adapter-based connectivity
• Suitable for CCTV fiber backbone networks, telecom points, small data rooms and structured cabling projects where wall-mounted fiber management is required
