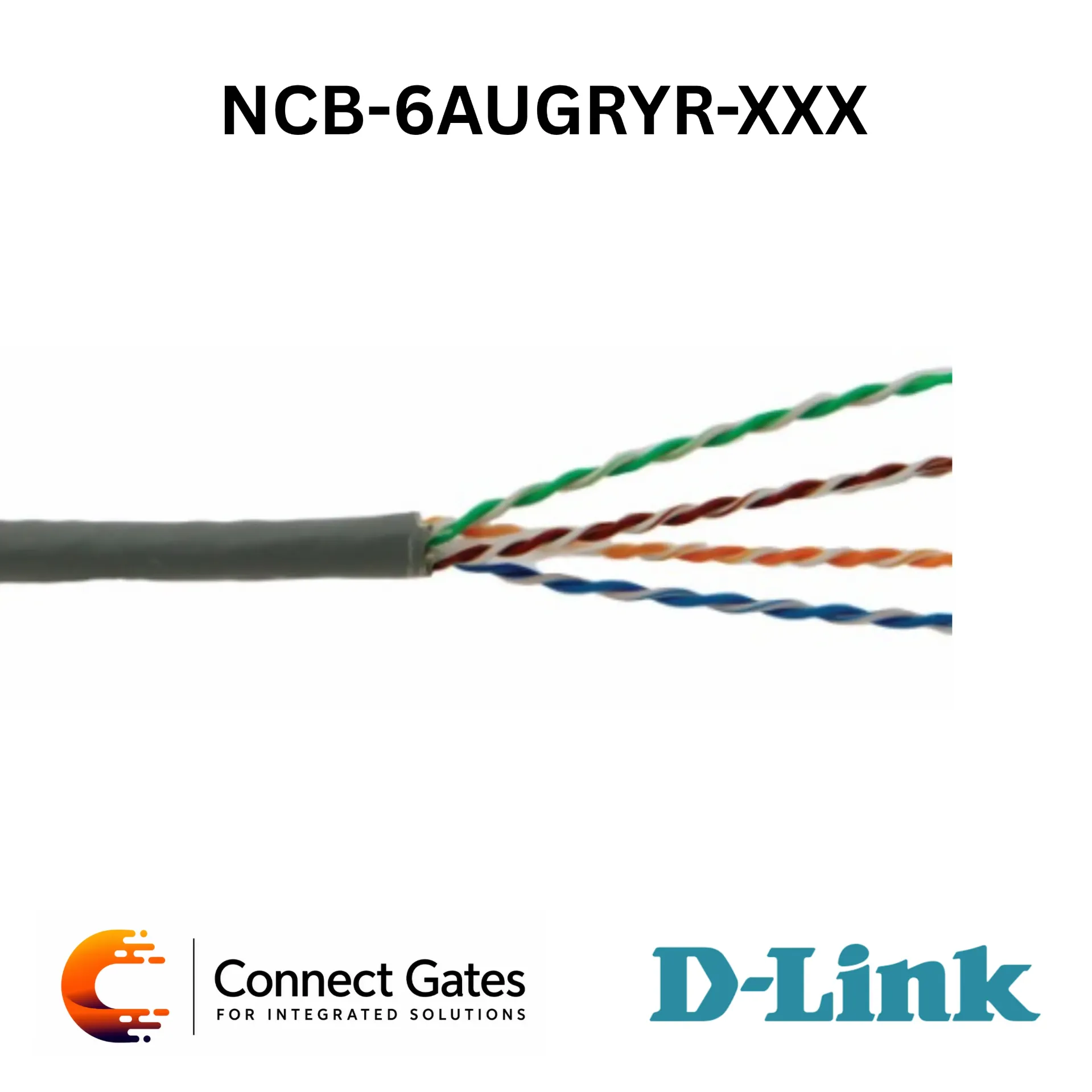

D-Link NCB-6AUGRYR-XXX – Cat6A 10G U/UTP 23AWG Solid Bare Copper Cable Roll, Grey, Available in 305m
Overview:
• The D-Link NCB-6AUGRYR-XXX is a Cat6A 10G U/UTP cable roll designed for high-speed structured cabling and LAN installations
• It uses 4 pairs of unshielded twisted pair cable with 23 AWG solid bare copper conductors
• The cable is designed for Cat6A performance and 10G-ready network infrastructure
• The FR PVC corrugated jacket and PE central cross separator support reliable cable structure and stable transmission
• It comes in grey color and is available in 305m MDF spool box packaging
• Suitable for data centers, server rooms, office LAN networks, IP CCTV backbones, and professional low-current projects
Key Features:
• Cat6A 10G U/UTP cable roll
• 4 pairs unshielded twisted pair cable
• 23 AWG solid bare copper conductor
• Grey color code
• FR PVC corrugated jacket
• PE central cross separator
• Available in 305m MDF spool box
• Suitable for 10G-ready structured cabling
• Designed for high-speed LAN, voice, video, and data transmission
• Suitable for enterprise and professional network installations
Technical Specifications:
• Series Model: NCB-6AUGRYR-XXX
• Product Type: Cat6A 10G U/UTP Cable Roll
• Cable Category: Cat6A
• Cable Type: U/UTP
• Cable Length: 305m
• Color Code: Grey
• Pairs: 4 Unshielded Twisted Pairs
• Conductor Metal: Solid Bare Copper
• Conductor Size: 23 AWG
• Jacket Material: FR PVC Corrugated Jacket
• Central Separator: PE Central Cross Separator
• Packaging: MDF Spool Box
• Nominal Velocity of Propagation: 69%
• Characteristic Impedance: 100Ω ±15Ω
• Conductor Resistance: < 9.38Ω / 100m
• Mutual Capacitance: < 5.6nF / 100m
• Resistance Unbalance: 5% Max
• Capacitance Unbalance: 330pF / 100m
• Delay Skew: < 45nS
• Conductor Diameter: 0.574mm Nominal
• Insulation Diameter: 1.04mm Nominal
• Insulation Material: HD-PE
• Cable Diameter: 8.0mm Nominal
Applications:
• Cat6A structured cabling systems
• 10G-ready LAN installations
• Data centers and server rooms
• Office network infrastructure
• IP CCTV network cabling
• Voice, video, and high-speed data transmission
• Commercial and low-current infrastructure projects
• Network cabinets and data rooms
Connect Gates Recommendation:
• Connect Gates recommends the D-Link NCB-6AUGRYR-XXX for Cat6A projects that require 10G-ready performance with professional structured cabling quality
• It is a suitable choice for server rooms, enterprise LAN networks, data centers, and high-quality IP CCTV backbone cabling where future network capacity is important
