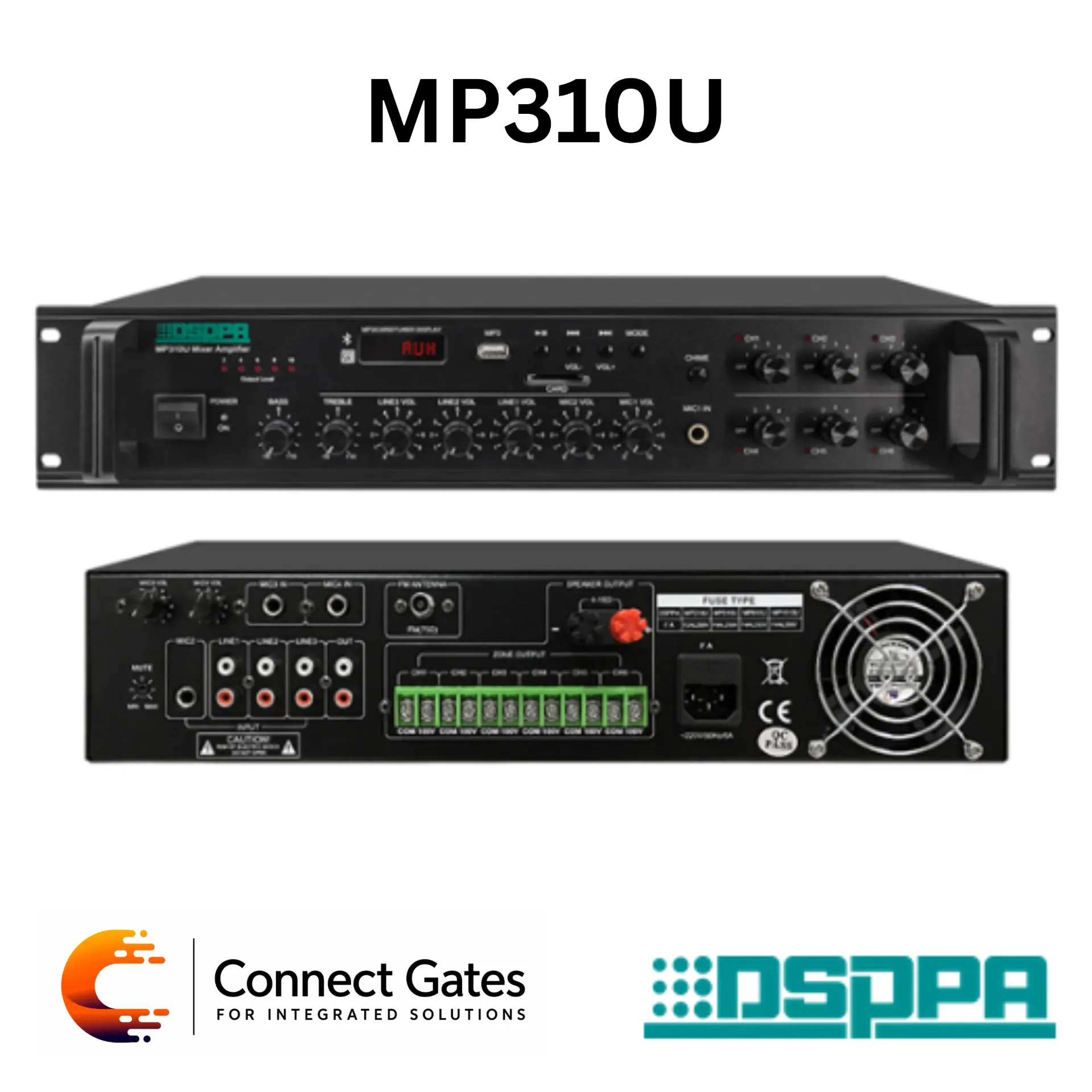

DSPPA MP210U / MP310U / MP610U / MP1010U – 6-Zone Paging & Music Mixer Amplifier with USB & Bluetooth
The DSPPA MP210U / MP310U / MP610U / MP1010U series are advanced multi-zone mixer amplifiers designed for professional public address systems requiring high power, zone control, and full multimedia functionality. These units integrate Bluetooth, USB, FM tuner, multi-input mixing, and independent 6-zone audio distribution, making them ideal for large-scale commercial installations.
Technical Specifications:
Amplifier Models:
- MP210U → 60W
- MP310U → 120W
- MP610U → 250W
- MP1010U → 350W
Amplifier System:
- Type: 6-Zone Paging & Music Mixer Amplifier
- Output Mode: 4–16Ω speaker output
- Zone Control: 6 independent zones
Audio Inputs:
Microphone Inputs:
- 4 × MIC inputs
- MIC1 priority override
Line Inputs:
- 3 × AUX inputs
- 1 × AUX output
Audio Sources:
- Bluetooth (wireless streaming)
- USB playback
- SD Card
- FM Radio
As shown on page 1, the system integrates MP3 player, FM tuner, and Bluetooth in one unit, eliminating the need for external sources.
Audio Performance:
- Frequency Response: 80Hz – 16kHz (±3dB)
- Distortion: ≤1%
- Signal-to-Noise Ratio: ≥74dB
Tone Control:
- Bass: ±10dB @ 100Hz
- Treble: ±10dB @ 10kHz
Zone Control:
- 6 independent zones
- Individual volume control per zone
- Zone level LED indicators
From the front panel (page 2), each zone has its own volume control and LED level indicator for monitoring output.
Priority & Paging Features:
- MIC1 priority override
- Chime function (priority announcement tone)
- Mute function for emergency paging
Control & Interface:
- LED display (volume, status, program)
- Infrared remote control
- Mode switching:
- AUX / FM / Bluetooth / MP3
As illustrated on page 3, the remote allows full control of playback, EQ modes, volume, and source switching.
Protection System:
- DC voltage protection
- Overload protection
- Short-circuit protection
Power & Electrical:
- Power Supply: AC 220V / 50Hz
- Power Consumption:
- MP210U: 120W
- MP310U: 250W
- MP610U: 500W
- MP1010U: 650W
Physical Specifications:
- Dimensions: 484 × 355 × 88 mm
- Net Weight:
- 9.7 kg (MP210U)
- 11.5 kg (MP310U)
- 14 kg (MP610U)
- 15 kg (MP1010U)
Key Features:
- 60W to 350W power range
- 6-zone independent control
- Bluetooth + USB + SD + FM
- 4 MIC + 3 AUX inputs
- MIC1 priority override + chime
- Individual zone volume control
- LED display and indicators
- Remote control operation
- Full protection system
- Professional rack-mount design
Applications:
- Shopping malls
- Supermarkets
- Hotels
- Schools
- Factories
- Hospitals
- Office buildings
- Large commercial facilities
- Multi-zone paging systems
- Background music + announcements
Connect Gates Professional Opinion:
From Connect Gates’ perspective, this series represents a higher-tier solution compared to MP212U and MP260. It combines high power (up to 350W), full multimedia features, and advanced zone control with individual volume per zone, which is a major upgrade for large projects. The MP610U and MP1010U are especially recommended for malls, factories, and large facilities where strong coverage and flexible control are required.
