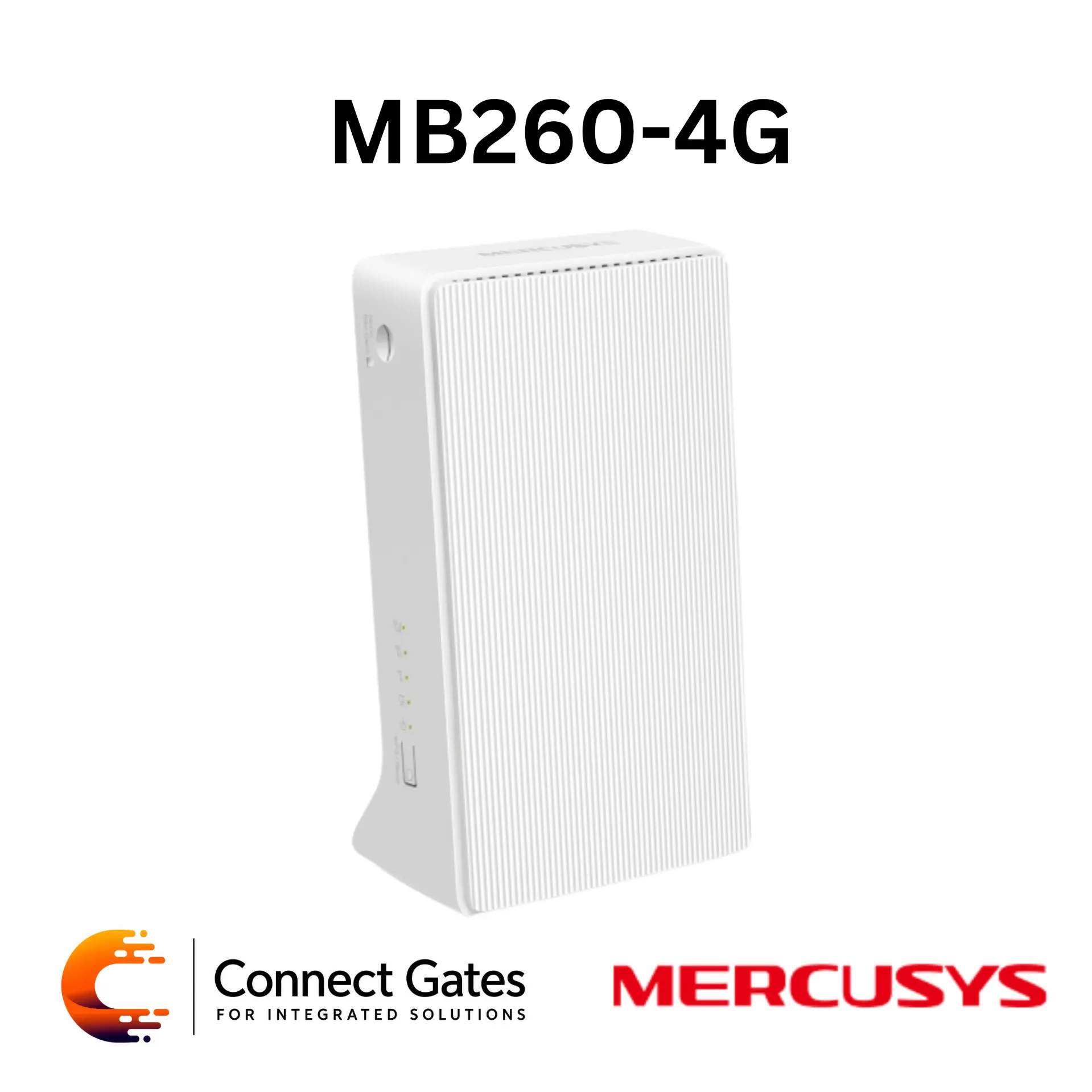

Mercusys MB260-4G – AX1500 Wi-Fi 6 4G+ LTE Router with Built-in 300Mbps 4G LTE Modem, Gigabit Ports & Nano SIM Plug and Play
Overview:
• The Mercusys MB260-4G is an AX1500 Wi-Fi 6 4G+ LTE router with a built-in 300Mbps 4G LTE modem for flexible internet access using a Nano SIM card.
• Delivers wireless speeds up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth browsing, streaming, online work, and daily network usage.
• Supports 4G+ Cat6 LTE with download speeds up to 300 Mbps and upload speeds up to 50 Mbps, depending on operator network coverage.
• Equipped with internal antennas and extra 3G/4G antenna ports for improved mobile network reception when needed.
• Includes 1 Gigabit LAN port and 1 Gigabit WAN/LAN port for wired devices or switching between 4G router mode and Wi-Fi router mode.
• Supports MERCUSYS App management, SMS, IPv6, parental controls, and Nano SIM card plug and play operation.
Key Features:
• AX1500 Wi-Fi 6 4G+ LTE Router
• Built-in 300Mbps 4G LTE Modem
• 1201 Mbps at 5 GHz + 300 Mbps at 2.4 GHz
• 4G+ Cat6 300/50 Mbps
• Nano SIM Card Plug and Play
• Internal Antennas
• Extra 3G/4G Antenna Ports
• 1 × Gigabit LAN Port
• 1 × Gigabit WAN/LAN Port
• 3G/4G Router Mode / Wi-Fi Router Mode
• MERCUSYS App Support
• SMS, IPv6 & Parental Controls
Technical Specifications:
• Product Type: 4G+ LTE Wi-Fi 6 Router
• Brand: Mercusys
• Model: MB260-4G
• Wireless Standard: AX1500 Wi-Fi 6
• Wireless Speed: 1201 Mbps at 5 GHz + 300 Mbps at 2.4 GHz
• 4G LTE Category: Cat6
• 4G LTE Speed: 300 Mbps Download / 50 Mbps Upload
• SIM Type: Nano SIM Card
• Antenna: Internal Antennas
• External Antenna Support: Extra 3G/4G Antenna Ports
• Wired Ports: 1 × Gigabit LAN Port + 1 × Gigabit WAN/LAN Port
• Network Modes: 3G/4G Router Mode / Wi-Fi Router Mode
• LTE Bands: FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40
• 3G Bands: HSPA+/UMTS B1/B5/B8
• Management: MERCUSYS App
• Features: SMS, IPv6, Parental Controls, Plug and Play
Applications:
• Home 4G Internet Access
• Offices Without Fixed Internet
• Backup Internet Connection
• Remote Sites & Temporary Networks
• Shops, Clinics & Small Businesses
• Wi-Fi 6 Wireless Coverage with SIM Internet
Connect Gates Recommendation:
• Recommended for locations that need fast internet through a 4G SIM card with Wi-Fi 6 wireless performance.
• Best suited for homes, offices, shops, and temporary sites where fixed internet is unavailable or used as backup.
• For better 4G signal in weak coverage areas, Connect Gates recommends using compatible external 3G/4G antennas when required.
