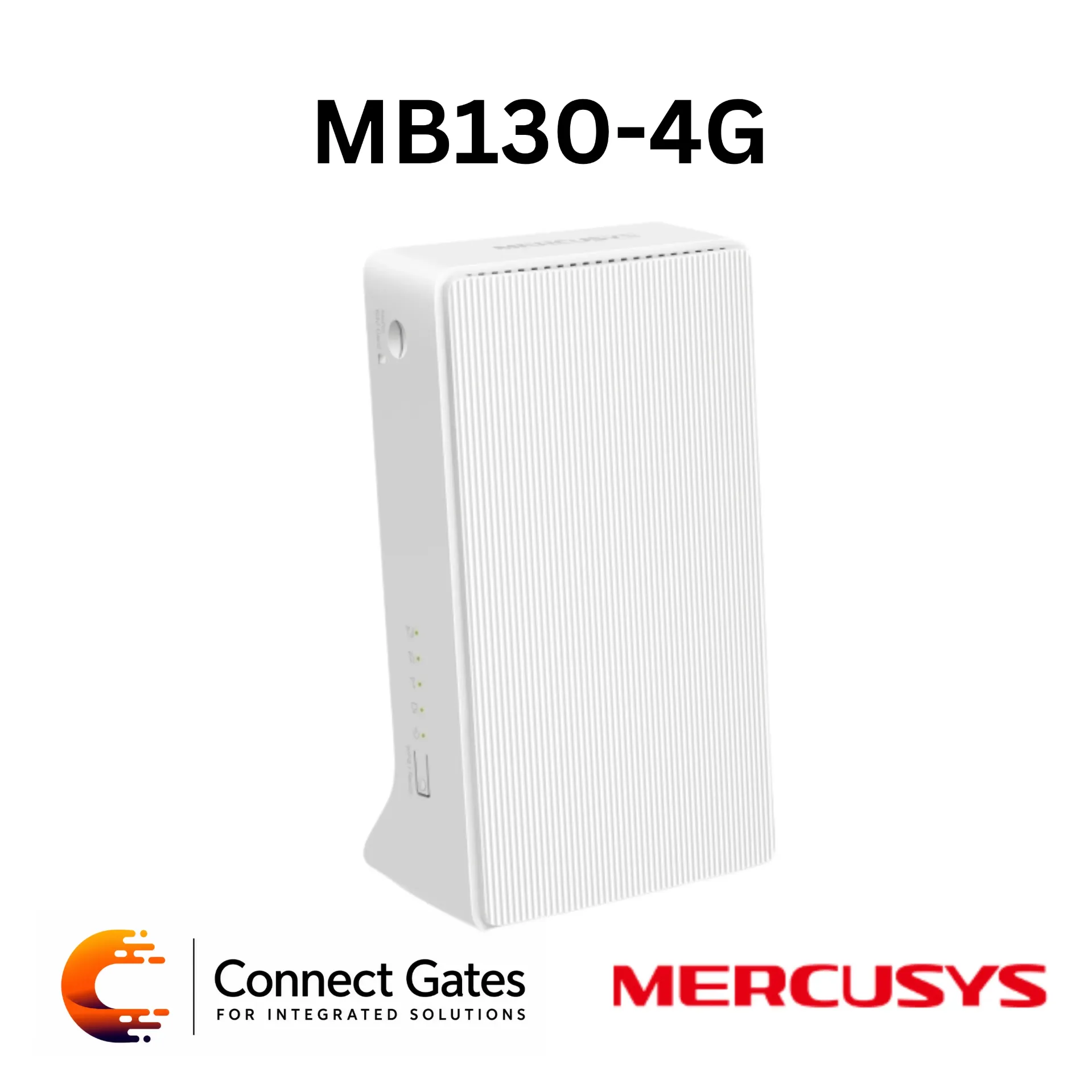

Mercusys MB130-4G – AC1200 Wi-Fi 4G LTE Router with Built-in 150Mbps 4G LTE Modem, Internal Antennas, Extra 3G/4G Antenna Ports & Nano SIM Plug and Play
Overview:
• The Mercusys MB130-4G is an AC1200 Wi-Fi 4G LTE router with a built-in 150Mbps 4G LTE modem for internet access using a Nano SIM card.
• Delivers dual-band Wi-Fi speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for browsing, streaming, online work, and daily network usage.
• Supports 4G Cat4 LTE with speeds up to 150 Mbps download and 50 Mbps upload, depending on mobile network coverage.
• Equipped with internal antennas and extra 3G/4G antenna ports to support better mobile network reception when needed.
• Includes 1 × 10/100Mbps LAN port and 1 × 10/100Mbps WAN/LAN port for wired devices or using the router with fixed internet.
• Supports MERCUSYS App management, IPTV, IPv6, parental controls, 3G/4G router mode, Wi-Fi router mode, and Nano SIM plug and play operation.
Key Features:
• AC1200 Wi-Fi 4G LTE Router
• Built-in 150Mbps 4G LTE Modem
• 867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz
• 4G Cat4 150/50 Mbps
• Nano SIM Card Plug and Play
• Internal Antennas
• Extra 3G/4G Antenna Ports
• 1 × 10/100Mbps LAN Port
• 1 × 10/100Mbps WAN/LAN Port
• 3G/4G Router Mode / Wi-Fi Router Mode
• MERCUSYS App Support
• IPTV, IPv6 & Parental Controls
Technical Specifications:
• Product Type: 4G LTE Wi-Fi Router
• Brand: Mercusys
• Model: MB130-4G
• Wireless Standard: AC1200 Wi-Fi
• Wireless Speed: 867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz
• 4G LTE Category: Cat4
• 4G LTE Speed: 150 Mbps Download / 50 Mbps Upload
• SIM Type: Nano SIM Card
• Antenna: Internal Antennas
• External Antenna Support: Extra 3G/4G Antenna Ports
• Wired Ports: 1 × 10/100Mbps LAN Port + 1 × 10/100Mbps WAN/LAN Port
• Network Modes: 3G/4G Router Mode / Wi-Fi Router Mode
• LTE Bands: FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40
• 3G Bands: HSPA+/UMTS B1/B5/B8
• Management: MERCUSYS App
• Features: IPTV, IPv6, Parental Controls, Plug and Play
Applications:
• Home 4G Internet Access
• Small Office Internet Sharing
• Backup Internet Connection
• Shops, Clinics & Small Businesses
• Remote Sites & Temporary Networks
• Dual-Band Wi-Fi with SIM Internet
Connect Gates Recommendation:
• Recommended for homes and small offices that need 4G internet access with AC1200 dual-band Wi-Fi.
• Best suited for locations where fixed internet is unavailable or where a backup SIM-based internet connection is required.
• For higher 4G speed or more wired Gigabit ports, Connect Gates recommends upgrading to Cat6 4G+ models.
