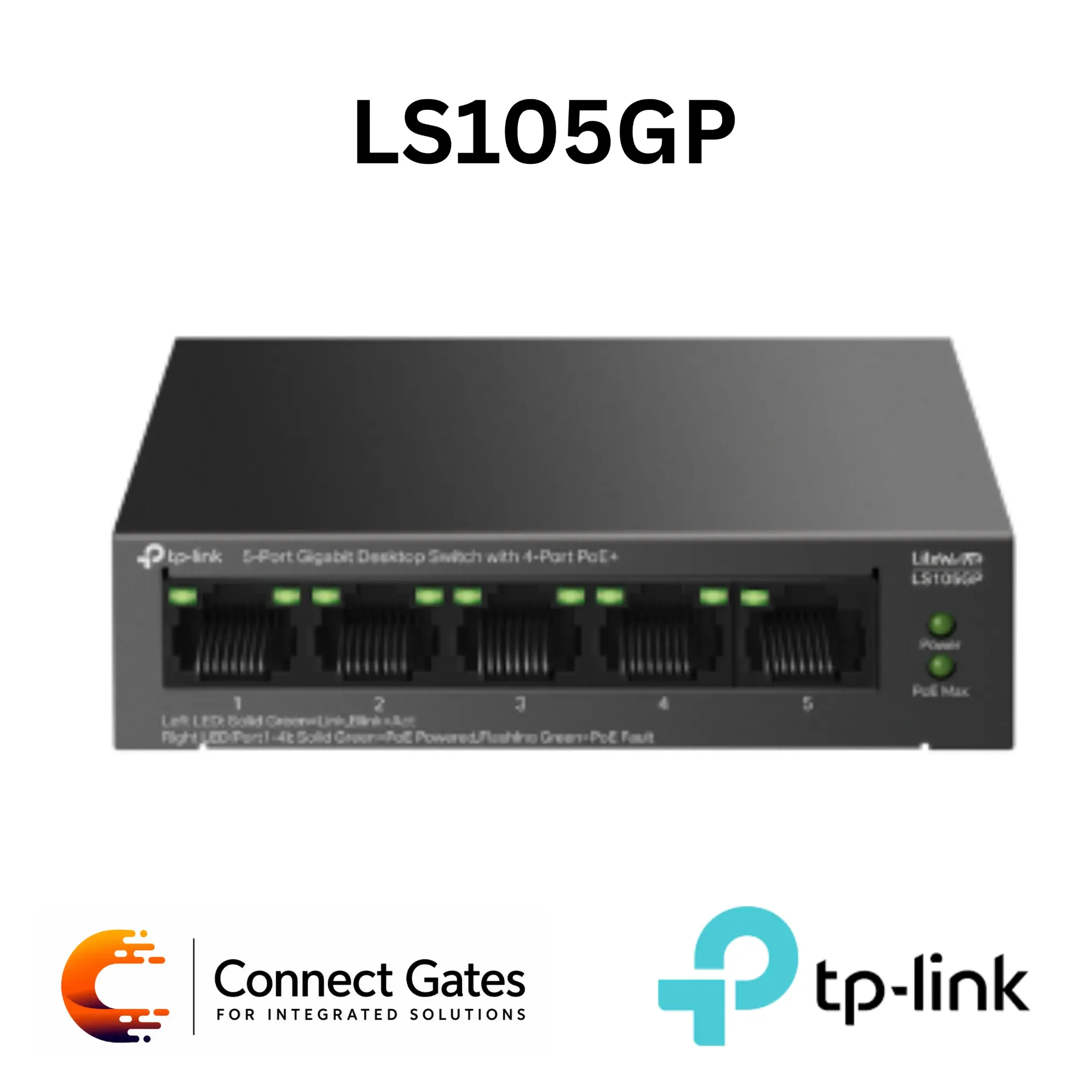

TP-Link LS105GP – 5-Port Gigabit Desktop PoE+ Switch with 4 PoE+ Ports, 1 Gigabit Port, 65W PoE Budget, Extend Mode & PoE Auto Recovery
Overview:
• The TP-Link LS105GP is a 5-port Gigabit desktop PoE+ switch designed for small CCTV, IP surveillance, access point, VoIP, and wired network deployments.
• Provides 4 Gigabit PoE+ ports for powering and connecting IP cameras and PoE-enabled devices through a single network cable.
• Includes 1 Gigabit non-PoE RJ45 port for uplink connection to a router, NVR, server, or main network switch.
• Supports IEEE 802.3af/at PoE standards with a total PoE power budget of 65W.
• Features Extend Mode for PoE transmission up to 250m, suitable for long-distance IP camera installations.
• Supports PoE Auto Recovery to automatically restart unresponsive PoE-powered devices.
• Built with a durable desktop steel case and supports plug and play operation for easy deployment.
Key Features:
• 5-Port Gigabit Desktop PoE+ Switch
• 4 × Gigabit PoE+ Ports
• 1 × Gigabit Non-PoE RJ45 Port
• IEEE 802.3af/at PoE Support
• 65W PoE Power Budget
• Extend Mode for up to 250m PoE Transmission
• PoE Auto Recovery
• Plug and Play Operation
• Desktop Steel Case
• Suitable for CCTV, IP Cameras, Access Points & PoE Devices
Technical Specifications:
• Product Type: Gigabit Desktop PoE+ Switch
• Brand: TP-Link
• Model: LS105GP
• Total Ports: 5 Ports
• PoE Ports: 4 × Gigabit PoE+ Ports
• Non-PoE Port: 1 × Gigabit RJ45 Port
• Port Speed: 10/100/1000Mbps
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 65W
• PoE Transmission: Extend Mode up to 250m
• PoE Feature: PoE Auto Recovery
• Case Material: Steel Case
• Installation: Desktop
• Operation: Plug and Play
Applications:
• Small CCTV Networks
• IP Camera Deployment
• Wireless Access Point Powering
• VoIP Phone Networks
• Long-Distance PoE Camera Installation
• NVR and Router Connectivity
• Small Office Network Expansion
• Desktop Network Installations
Connect Gates Recommendation:
• Recommended for small CCTV and office projects that need 4 Gigabit PoE+ ports with a 65W PoE budget.
• Best suited for IP camera systems, access points, and small PoE network deployments where Extend Mode and PoE Auto Recovery improve stability.
• For more ports, SFP uplink, or higher project scalability, Connect Gates recommends upgrading to LS1210GP, TL-SG1210P, or TL-SG1210MP.
