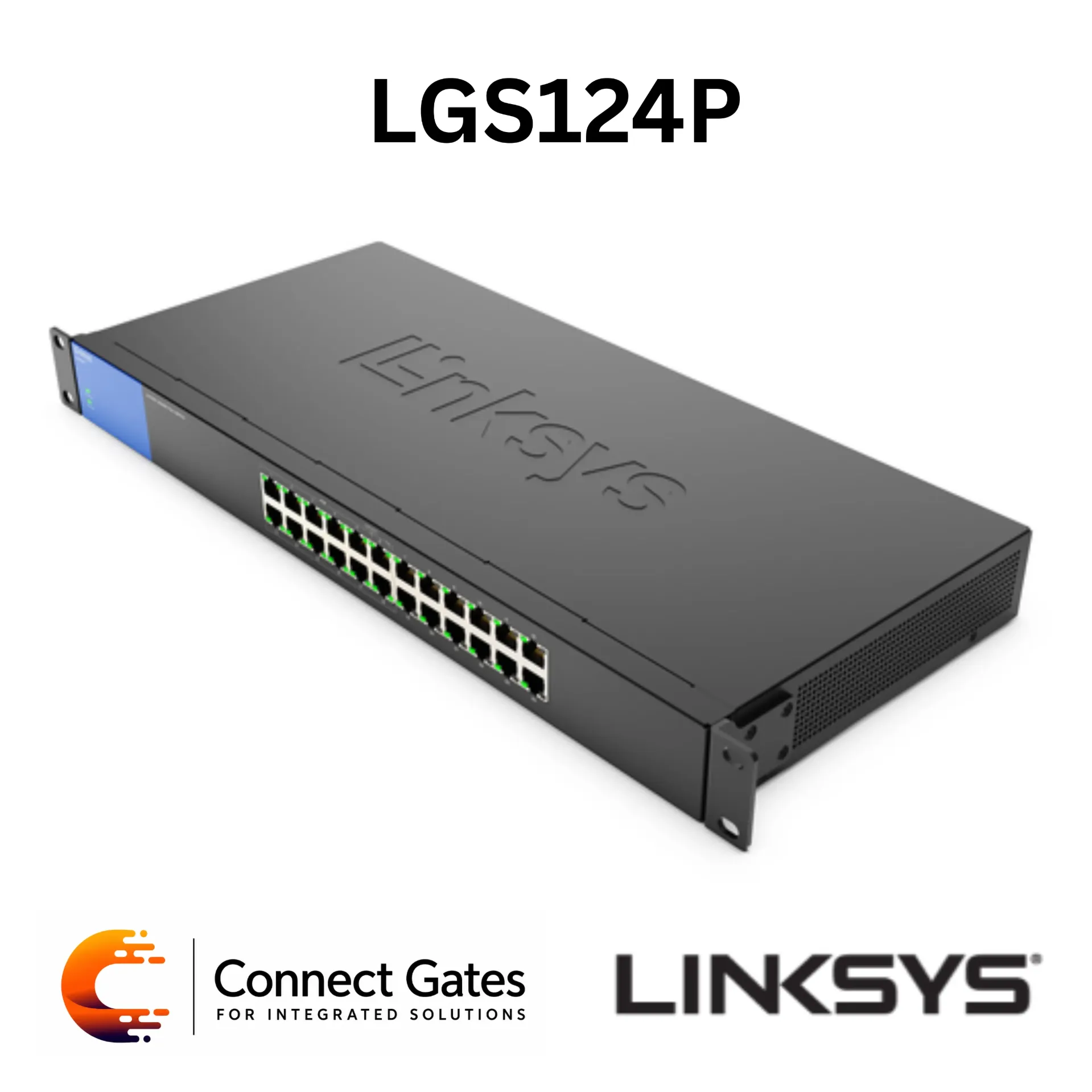

Linksys LGS124P – 24-Port Business Gigabit PoE+ Unmanaged Rackmount Switch with 12 PoE+ Ports, 120W PoE Budget & 48Gbps Non-Blocking Bandwidth
Overview:
• The Linksys LGS124P is a 24-port business Gigabit unmanaged PoE+ switch designed for office, business and rack-mounted network installations
• It provides Gigabit Ethernet connectivity with Power over Ethernet Plus support for powering devices such as IP cameras, wireless access points and VoIP phones
• The switch includes 12 PoE+ ports with a total PoE budget of 120W
• It supports plug-and-play installation with no configuration required
• Quality of Service supports 802.1p and DSCP traffic prioritization to help maintain important network traffic performance
• The datasheet lists the LGS124P with 24 Gigabit ports, 12 PoE+ ports, 48Gbps non-blocking bandwidth, internal AC power supply, rack mount support and one cooling fan
Key Features:
• 24 Gigabit Ethernet ports
• 12 PoE+ ports
• 120W total PoE budget
• 10/100/1000Mbps autosensing ports
• 48Gbps non-blocking bandwidth
• IEEE 802.3af / 802.3at PoE+ support
• Quality of Service traffic prioritization
• 802.1p and DSCP QoS support
• Plug-and-play installation
• Unmanaged switch design
• Link, speed, activity and PoE LED indicators
• Power-saving features
• Cable connected detection
• Sleep mode support
• Internal power supply
• Rack mount support
• Suitable for IP cameras, access points and VoIP phones
Technical Specifications:
• Model: LGS124P
• Product Type: 24-Port Gigabit PoE+ Unmanaged Switch
• Standards: IEEE 802.3 / 802.3u / 802.3x / 802.3ab / 802.3az / 802.3af / 802.3at
• Number of Ports: 24 Gigabit Ethernet ports
• PoE+ Ports: 12 ports, ports 1–6 and 13–18
• PoE+ Total Budget: 120W
• MAC Address Table: 8,000 entries
• Switching Bandwidth: 48Gbps non-blocking
• QoS: 802.1p and DSCP
• Performance: Full line rate forwarding
• Forwarding Rate 1000M Port: 1.488Mpps
• Forwarding Rate 100M Port: 0.1488Mpps
• Forwarding Rate 10M Port: 0.01488Mpps
• Status LEDs: Link, speed, activity and PoE indicators
• Power Supply: Internal
• Power Input: 100–240V AC, 50/60Hz
• Power Saving: Cable connected detection, sleep mode
• Power Consumption Idle / Full Use: 8.69W / 19.27W
• Fan: One
• Mounting: Rack mount
• Unit Dimensions: 440mm × 201mm × 44mm
• Unit Weight: 2.758kg
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 10% to 90% non-condensing
• Certifications: FCC Class A, CE Class A, UL, CB
• Package Contents: Linksys LGS124P 24-Port Gigabit Ethernet PoE+ Switch, Power Cord, Quick Start Guide, Rack Mount Kit
Applications:
• IP camera networks
• Wireless access point powering
• VoIP phone networks
• Small and medium business LAN networks
• Office and branch network expansion
• Retail stores and commercial buildings
• Schools and administrative buildings
• CCTV local network distribution
• Rack-mounted PoE distribution points
• Projects requiring simple PoE switching without configuration
Connect Gates Recommendation:
• Recommended for business and CCTV projects that require a 24-port Gigabit switch with PoE+ support and rack-mounted installation
• Suitable for IP cameras, access points and VoIP systems where 12 PoE+ ports, 120W PoE budget and plug-and-play operation are required
