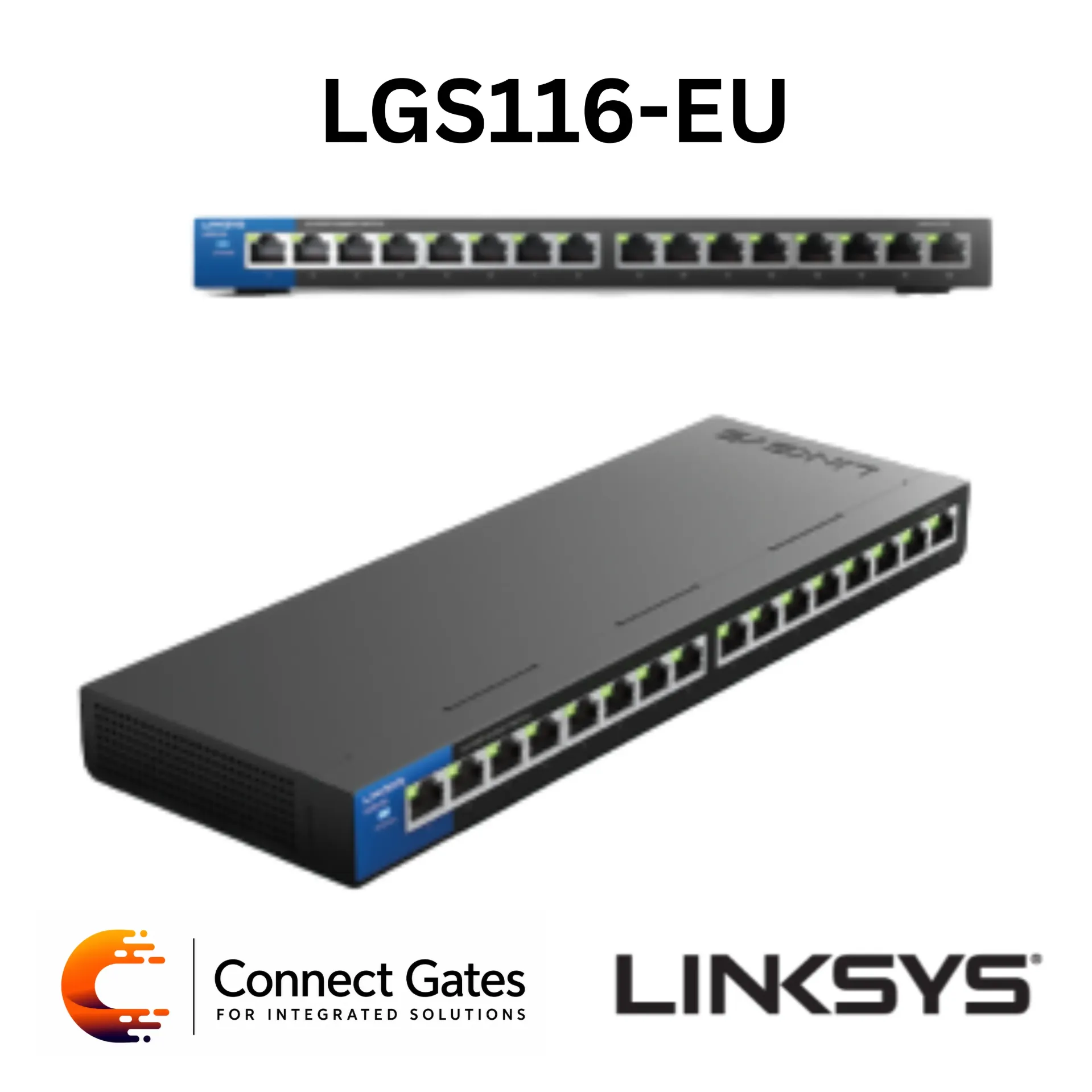

Linksys LGS116-EU – 16-Port Business Desktop Gigabit Unmanaged Switch with 32Gbps Non-Blocking Bandwidth, QoS, Metal Housing & Plug-and-Play Installation
Overview:
• The Linksys LGS116-EU is a 16-port business desktop Gigabit unmanaged switch designed to expand wired office networks easily
• It provides 10/100/1000Mbps Gigabit Ethernet connectivity for computers, printers, servers, network storage and other wired devices
• The switch supports plug-and-play installation with no configuration required
• It offers 32Gbps non-blocking switching bandwidth for smooth data transfer across connected devices
• Quality of Service supports 802.1p and DSCP traffic prioritization for important business applications
• The datasheet lists the LGS116 with 16 Gigabit ports, 8,000 MAC address entries, external 12V DC power supply, fanless metal housing and wall mount support
Key Features:
• 16 Gigabit Ethernet ports
• 10/100/1000Mbps auto-sensing ports
• 32Gbps non-blocking bandwidth
• Plug-and-play installation
• Unmanaged switch design
• Quality of Service traffic prioritization
• 802.1p and DSCP QoS support
• Power-saving features
• Cable connected detection
• Sleep mode support
• Link, speed and activity LED indicators
• Fanless operation
• Metal enclosure
• Wall mount support
• External power adapter
• Suitable for business desktop networks
Technical Specifications:
• Model: LGS116-EU
• Product Type: 16-Port Business Desktop Gigabit Unmanaged Switch
• Standards: IEEE 802.3 / 802.3u / 802.3x / 802.3ab / 802.3az
• Number of Ports: 16 Gigabit Ethernet ports
• Port Speed: 10/100/1000Mbps
• MAC Address Table: 8,000 entries
• Switching Bandwidth: 32Gbps non-blocking
• QoS: 802.1p and DSCP
• Performance: Full line rate forwarding
• Forwarding Rate 1000M Port: 1.488Mpps
• Forwarding Rate 100M Port: 0.1488Mpps
• Forwarding Rate 10M Port: 0.01488Mpps
• Status LEDs: Link, speed and activity indicators
• Power Supply: External
• Power Input: 12V DC / 1.0A
• Power Saving: Cable connected detection, sleep mode
• Power Consumption Idle / Full Use: 2.36W / 8.01W
• Fan: None
• Enclosure Type: Metal
• Mounting: Wall mount
• Unit Dimensions: 288mm × 102mm × 26mm
• Unit Weight: 0.703kg
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 10% to 90% non-condensing
• Certifications: FCC Class B, CE Class B
• Package Contents: Linksys LGS116 16-Port Gigabit Ethernet Switch, Power Adapter, Quick Start Guide
Applications:
• Small and medium office wired networks
• Desktop network expansion
• Connecting PCs, printers and network storage
• Office workstations and departments
• Retail stores and branch offices
• Home office and business networks
• File sharing and server connectivity
• Simple LAN expansion without configuration
• Projects requiring stable Gigabit switching performance
Connect Gates Recommendation:
• Recommended for office and business network expansion where reliable plug-and-play Gigabit connectivity is required
• Suitable for offices, shops, branches and workgroups that need more wired ports, stable performance and QoS support without switch configuration
