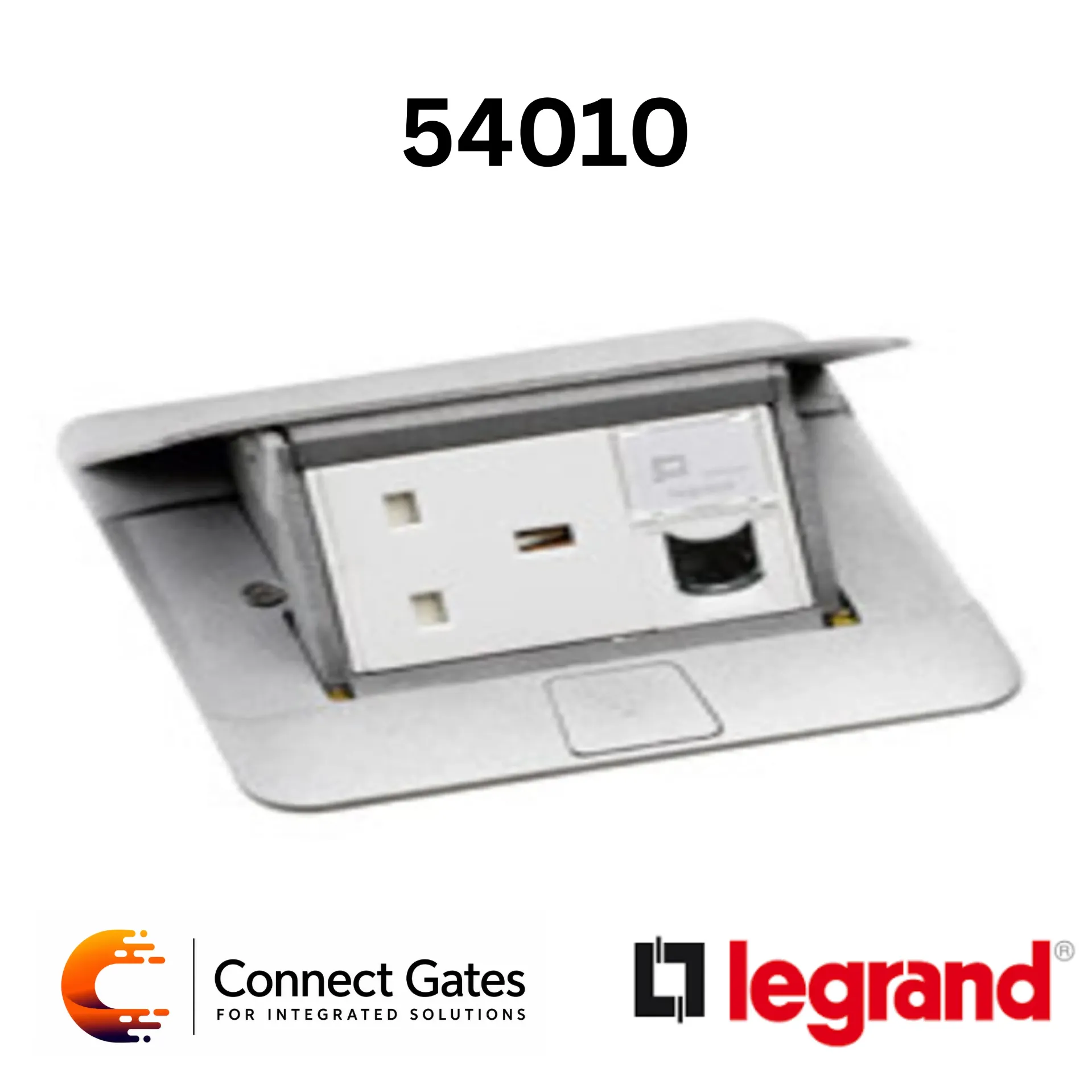

Legrand Pop-Up Floor 054010 – 3 Modules, Matt Aluminium, for Mosaic Wiring Devices.
Overview
Legrand 054010 is a Pop-Up floor unit designed for integration of wiring accessories in raised floors or concrete floors. It comes in Matt Aluminium finish, supports 3 modules, and is designed to be equipped with Legrand Mosaic functions, such as power, data, and audio/video accessories depending on the installation type.
Key Features
• Original Legrand Pop-Up floor unit.
• 3 modules capacity.
• Matt Aluminium finish for a clean and professional floor installation.
• Designed for integration of wiring accessories in raised or concrete floors.
• Compatible with Legrand Mosaic wiring devices.
• Suitable for power, data Cat6, and audio/video applications in raised floor installations.
• Safety locking system when closed and when open.
• Screws delivered with the Pop-Up unit.
• Suitable for modern offices, meeting rooms, commercial spaces, and floor service points.
Technical Specifications
• Brand: Legrand.
• Product Range: Pop-Up Floor.
• Model / Reference: 054010.
• Catalogue Reference: 0 540 10.
• Product Type: Floor Pop-Up Unit.
• Finish: Matt Aluminium.
• Module Capacity: 3 Modules.
• Device Compatibility: Legrand Mosaic functions.
• Installation Type: Raised floor or concrete floor.
• Maximum Power: 16A / 250V AC.
• Maximum Load: 3680W at 230V per circuit.
• Rated Voltage: 250V AC.
• Impact Resistance: IK07.
• Protection Rating: IP30 open / IP40 closed.
• Vertical Load Resistance: 1500N open / 3000N closed.
• Electric Strength: 2000V.
• Insulation Resistance: R > 5MΩ at 500V.
• Material: Halogen-free, fire-proofed, non-flame propagating material.
• Finish Material: Aluminium material.
• Earthing: Mandatory.
• Standards: NFC 61-314 / EN 60670-1 / EN 60670-23.
Applications
• Office floor power and data points.
• Meeting rooms and conference rooms.
• Commercial buildings.
• Showrooms and reception areas.
• Raised floor installations.
• Concrete floor installations with suitable back boxes.
• Workstations requiring floor access to power and data.
Connect Gates Recommendation
We recommend Legrand Pop-Up Floor 054010 for projects that require a neat and professional floor outlet solution with a premium Matt Aluminium finish. It is especially suitable for offices, meeting rooms, and commercial spaces where power and data points need to be accessible from the floor without affecting the interior design.
Its 3-module capacity is ideal for compact configurations such as one power socket with one data outlet, while the Pop-Up safety locking design helps keep the floor point protected and organized when not in use.
