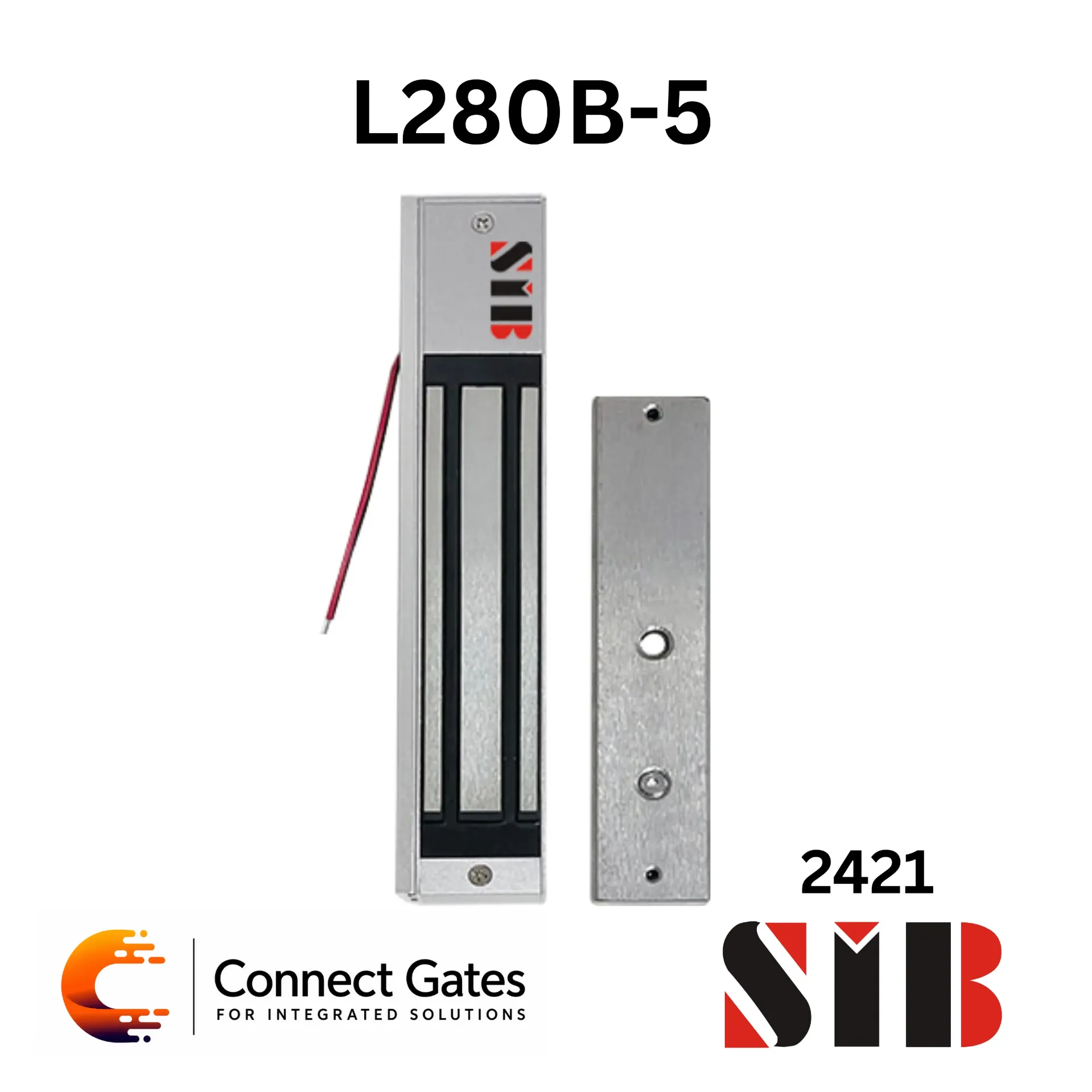

SIB L280B-5 – 280KG Magnetic Lock for Access Control with Relay NO/COM/NC & Cabinet/Door Support
Overview:
• The SIB L280B-5 is a 280KG magnetic lock designed for access control door locking and electric cabinet lock applications.
• Provides 280KG holding force, making it suitable for secure medium-duty locking requirements.
• Supports relay output with NO / COM / NC connection for flexible integration with access control systems.
• Supports 12V DC input voltage with current consumption of 500mA at 12V and 250mA at 24V.
• Suitable for file cabinets, display cabinets, wooden doors, glass doors, metal doors, and fireproof doors.
• Designed with anodized aluminum shell surface processing and zinc finish for both magnetic lock and armature plate.
Key Features:
• 280KG Magnetic Lock
• Access Control Electric Cabinet Lock
• Relay NO / COM / NC Support
• 280KG Holding Force
• 12V DC Input Voltage
• 12V / 500mA Current Consumption
• 24V / 250mA Current Consumption
• Suitable for File Cabinets and Display Cabinets
• Suitable for Wooden, Glass, Metal, and Fireproof Doors
• Anodized Aluminum Shell Surface Processing
• Zinc Finish for Magnetic Lock and Armature Plate
• Armature Plate Included
Technical Specifications:
• Product Type: Magnetic Lock Access Control / Electric Cabinet Lock
• Model: L280B-5
• Holding Force: 280KG
• Relay Output: NO / COM / NC
• Input Voltage: 12V DC
• Current Consumption: 12V / 500mA, 24V / 250mA
• Lock Size: 250 × 45 × 25 mm
• Armature Plate Size: 180 × 38 × 12 mm
• Shell Finish: Anodized Aluminum Surface Texture Processing
• Magnetic Lock Finish: Zinc
• Armature Plate Finish: Zinc
• Suitable Doors: File Cabinet / Display Cabinet / Wooden Door / Glass Door / Metal Door / Fireproof Door
• Application: Access Control Door Locking / Electric Cabinet Locking
Applications:
• Access Control Door Locking
• Electric Cabinet Locking
• File Cabinets
• Display Cabinets
• Wooden Doors
• Glass Doors
• Metal Doors
• Fireproof Doors
• Office and Commercial Access Control
• Restricted Area Door Locking
Connect Gates Recommendation:
• Connect Gates recommends the SIB L280B-5 for projects that need a 280KG magnetic lock with relay NO/COM/NC support and flexible installation on different door or cabinet types.
• Its 280KG holding force, dual current compatibility, anodized aluminum shell, and zinc-finished magnetic/armature components make it a practical choice for access control doors, cabinets, display units, wooden doors, glass doors, metal doors, and fireproof doors.
