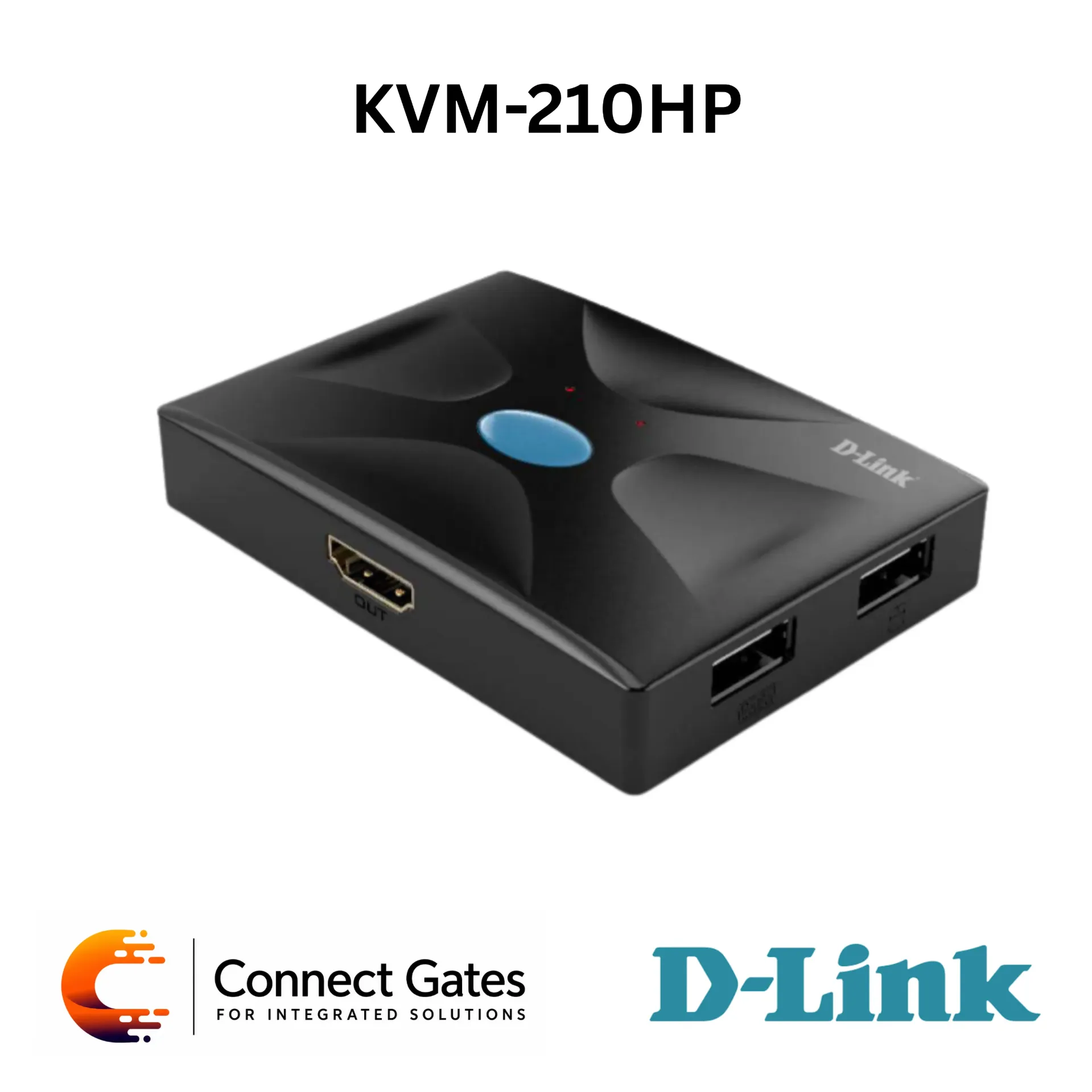

D-Link KVM-210HP – 2-Port HDMI KVM Switch with USB 2.0, 4K@30Hz Resolution, Desktop Controller, Plug-and-Play & Wide Screen Support
Overview:
• The D-Link KVM-210HP is a 2-Port HDMI KVM Switch designed to control two HDMI computers using one monitor, one keyboard, and one mouse.
• It allows users to switch between two connected computers using the switch button or the included desktop controller.
• The KVM-210HP supports resolution up to 3840×2160 at 30Hz, making it suitable for 4K display environments.
• It supports USB 2.0 devices and provides USB-A ports for keyboard, mouse, and USB device connectivity.
• The device is plug-and-play and does not require software installation, making setup simple and fast.
• It is powered through USB supply, reducing the need for an additional power adapter in standard usage.
Key Features:
• 2-Port HDMI KVM Control: Controls two HDMI computers with one monitor, keyboard, and mouse.
• 4K Resolution Support: Supports up to 3840×2160 at 30Hz.
• USB 2.0 Support: Supports USB 2.0 devices through USB-A ports.
• Desktop Controller: Allows easy switching between connected computers.
• Button Switching: Supports switching directly from the device button.
• Wide Screen Support: Suitable for modern wide-screen displays.
• Plug-and-Play: No software installation required.
• USB Powered: Operates using USB power supply.
• Compact ABS Shell: Small and lightweight design for desktop use.
Technical Specifications:
• Product Type: 2-Port HDMI KVM Switch
• Model: KVM-210HP
• Connected PCs: 2 HDMI Computers
• Video Input Interface: 2 × HDMI
• Video Output Interface: 1 × HDMI
• USB Ports: 2 × USB-A Female
• Desktop Controller Port: 1 × USB Mini 5P
• USB Protocol: USB 2.0
• Switching Method: Button and Desktop Controller
• Resolution: Up to 3840×2160 / 30Hz
• HDR Support: Dolby Vision, HDR10, HLG, SL-HDR1
• System Support: Windows Series, Linux, DOS, Mac
• ESD Protection: 3KV Touch Charge
• Power Supply: USB Supply
• Size: 83 × 56 × 16 mm
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shell Material: ABS
• Package Contents: HDMI KVM Switch, User Manual, 1.5m HDMI KVM Cable HDMI+USB to HDMI, 1.2m HDMI KVM Cable HDMI+USB to HDMI, Desktop Controller
Applications:
• Managing two HDMI computers from one monitor, keyboard, and mouse.
• Office desks and workstations with limited space.
• IT support and maintenance desks.
• Home office users who switch between two PCs or laptops.
• Small control desks where simple PC switching is required.
• Users who need 4K HDMI switching with shared USB keyboard and mouse.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link KVM-210HP for users who need a simple and compact solution to control two HDMI computers from one workspace.
• It is a practical choice for offices, home offices, IT support desks, and users who want to reduce desk clutter.
• The 4K@30Hz support makes it suitable for standard 4K office and display usage where ultra-high refresh rate is not required.
• The included desktop controller makes switching easier when the device is placed away from direct reach.
• This KVM switch is recommended when the customer needs a cost-effective plug-and-play HDMI KVM solution for two computers, keyboard, mouse, and monitor sharing.
