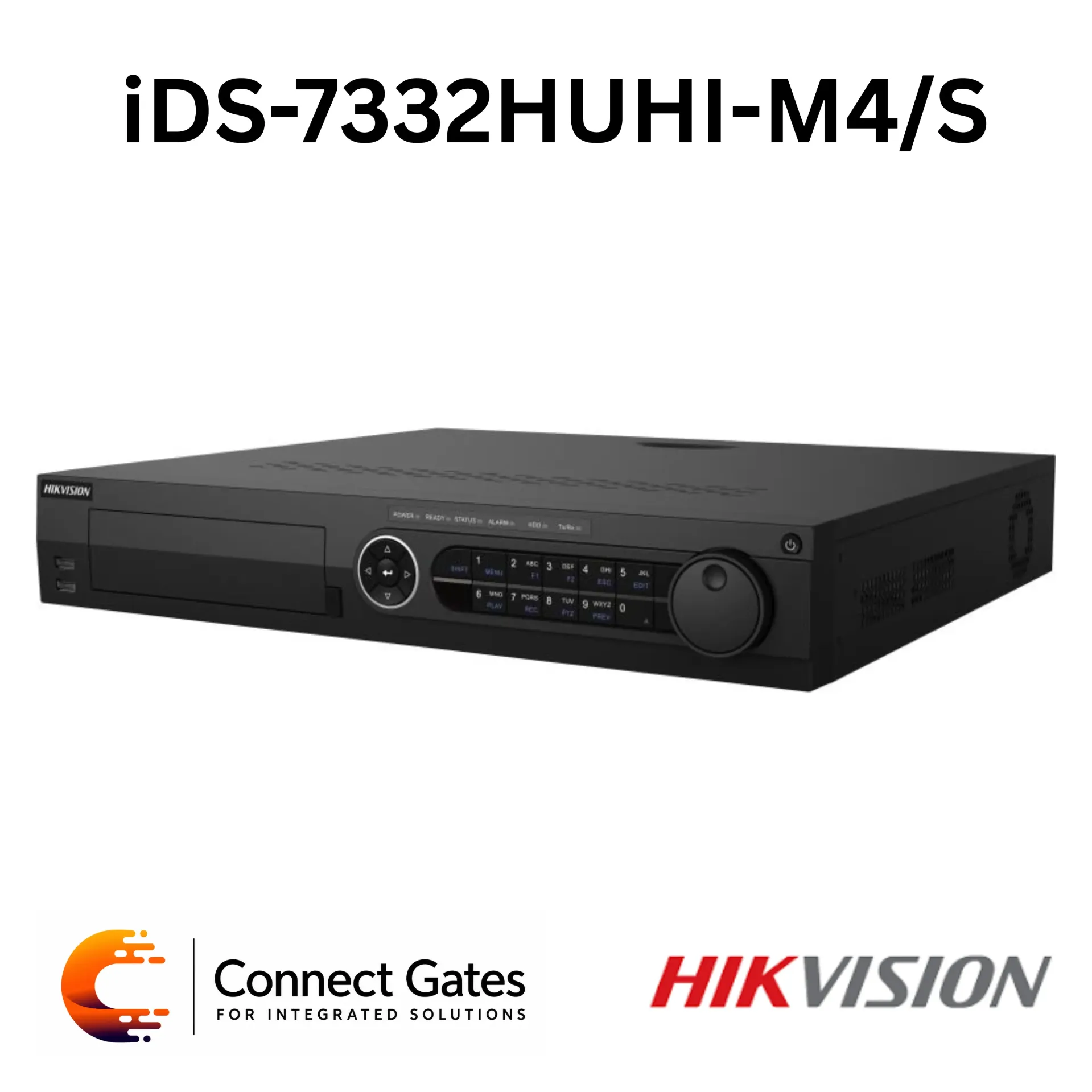

Hikvision iDS-7332HUHI-M4/S – 32-Channel 5MP AcuSense DVR with 64 IP Camera Support, 4 SATA HDD Bays, RAID, eSATA & Dual LAN
Overview:
• The Hikvision iDS-7332HUHI-M4/S is a 32-channel 5MP 1.5U AcuSense DVR designed for large and advanced hybrid CCTV surveillance systems.
• It supports HDTVI, AHD, CVI, CVBS, and IP video inputs, making it suitable for high-capacity analog systems and hybrid upgrade projects.
• The DVR supports up to 32 analog camera inputs and up to 64 network camera inputs, with IP camera resolution up to 12MP.
• It uses H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression to improve recording efficiency and reduce storage usage.
• The device supports up to 8MP encoding, Motion Detection 2.0, human and vehicle classification, perimeter protection, POS triggered recording, POS information overlay, and 32-channel 1080p decoding.
• With 4 SATA HDD bays up to 12TB each, RAID 0/1/5/6/10 support, 1 eSATA interface, dual Gigabit LAN, HDMI 1, HDMI 2 up to 4K, VGA, CVBS output, RS-232, RS-485 full-duplex, keyboard interface, alarm I/O, and 100–240VAC power input, it is a professional DVR solution for large CCTV projects requiring high storage capacity, redundancy, and advanced integration.
Key Features:
• 32-Channel DVR: Supports up to 32 analog video inputs through BNC interface.
• 5-in-1 Hybrid Support: Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras.
• IP Camera Expansion: Supports up to 64 network camera inputs.
• Up to 12MP IP Camera Support: Allows IP camera input resolution up to 12MP.
• 4 SATA HDD Bays: Supports four SATA interfaces for large storage capacity.
• Up to 12TB per HDD: Supports up to 12TB capacity for each disk.
• RAID Support: Supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 storage schemes.
• eSATA Support: Includes 1 eSATA interface for external storage expansion.
• 8MP Encoding Support: Supports up to 8MP at 8 fps and 5MP at 12 fps encoding capability.
• Advanced Compression: Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264.
• Motion Detection 2.0: Deep learning-based human and vehicle classification on all analog channels.
• Perimeter Protection: Supports up to 16-channel human and vehicle analysis on selected channels.
• 32-Channel Decoding: Supports 32-channel 1080p at 30 fps decoding capability.
• Dual LAN: Includes 2 × RJ45 10M / 100M / 1000M self-adaptive Ethernet interfaces.
• Dual HDMI Output: Includes HDMI 1 and HDMI 2, with HDMI 2 supporting up to 4K output.
• POS Integration: Supports POS triggered recording and POS information overlay.
Technical Specifications:
• Brand: Hikvision
• Model: iDS-7332HUHI-M4/S
• Product Type: 32-Channel 5MP AcuSense DVR / XVR
• Analog Video Inputs: 32 × BNC channels
• Video Format: HDTVI / AHD / CVI / CVBS / IP
• IP Video Input: 32 channels, up to 64 channels
• IP Camera Resolution: Up to 12MP
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 256 Mbps
• Supported IP Compression: H.265+ / H.265 / H.264+ / H.264
• Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
• Encoding Resolution: 8MP / 3K / 5MP / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
• Encoding Capability: Up to 8MP at 8 fps, 5MP at 12 fps
• Frame Rate: 8MP at 8 fps, 3K at 12 fps, 5MP at 12 fps, 4MP at 15 fps, 3MP at 18 fps, 1080p / 720p / WD1 / 4CIF / VGA / CIF at 25 fps / 30 fps
• Sub-Stream: WD1 / 4CIF / CIF at 25 fps / 30 fps
• Video Bitrate: 32 Kbps to 10 Mbps
• Dual Stream: Supported
• Stream Type: Video, Video & Audio
• HDTVI Input: 8MP, 3K, 5MP, 4MP, 3MP, 1080p, 720p
• AHD Input: 5MP, 4MP, 1080p, 720p
• HDCVI Input: 4MP, 1080p, 720p
• CVBS Input: PAL / NTSC
• CVBS Output: 1 × BNC, PAL 704 × 576 / NTSC 704 × 480
• HDMI 1 Output: Up to 1920 × 1080 / 60Hz
• HDMI 2 Output: Up to 4K 3840 × 2160 / 30Hz
• VGA Output: Up to 1920 × 1080 / 60Hz
• Video Output Mode: HDMI1 / VGA simultaneous output, HDMI2 / VGA independent output
• Audio Input: 4 × RCA
• Audio Output: 1 × RCA
• Two-Way Audio: 1 × RCA independent two-way audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps
• Motion Detection 2.0: Human and vehicle classification on all analog channels
• Perimeter Protection: Up to 16 channels for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only
• Synchronous Playback: 16 channels
• Decoding Capability: 32-channel 1080p at 30 fps
• RAID Support: RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10
• Remote Connections: 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
• Network Interface: 2 × RJ45 10M / 100M / 1000M self-adaptive Ethernet interfaces
• Storage Interface: 4 × SATA interfaces
• eSATA Interface: Supported
• HDD Capacity: Up to 12TB per HDD
• Serial Interface: RS-232, RS-485 full-duplex, keyboard interface
• Alarm Input / Output: 16 inputs / 4 outputs
• USB Interface: Front panel: 2 × USB 2.0, rear panel: 1 × USB 3.0
• Power Supply: 100 to 240VAC, 50 to 60Hz
• Power Consumption: ≤ 55W without HDD
• Working Temperature: -10°C to +55°C
• Working Humidity: 10% to 90%
• Dimensions: 440 × 399 × 72 mm
• Weight: ≤ 7 kg without HDD
Applications:
• Large CCTV surveillance systems
• Factories and industrial facilities
• Warehouses and logistics areas
• Schools, hospitals, and administrative buildings
• Retail chains and commercial facilities
• Residential compounds and large villas
• Upgrade projects from large analog DVR systems to hybrid CCTV systems
• Projects requiring 32 analog channels with IP expansion up to 64 cameras
• Installations requiring 4 HDD bays, RAID, eSATA, dual LAN, alarm I/O, RS-232, RS-485, and POS integration
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision iDS-7332HUHI-M4/S for large CCTV projects that need a 32-channel AcuSense DVR with higher recording resolution, large storage capacity, and RAID support.
• It is suitable for factories, warehouses, compounds, schools, hospitals, and large facilities that require many analog channels with future IP expansion.
• The DVR offers excellent value with 4 SATA HDD bays, up to 64 IP camera support, RAID 0/1/5/6/10, dual Gigabit LAN, eSATA support, alarm I/O, and HDMI 2 up to 4K output.
• For best performance, Connect Gates recommends using surveillance-grade HDDs up to 12TB each according to the required recording duration and RAID design.
• For projects requiring centralized VMS, advanced AI analytics, or very large IP camera management, Connect Gates recommends moving to a dedicated NVR or server-based VMS solution from the beginning.
