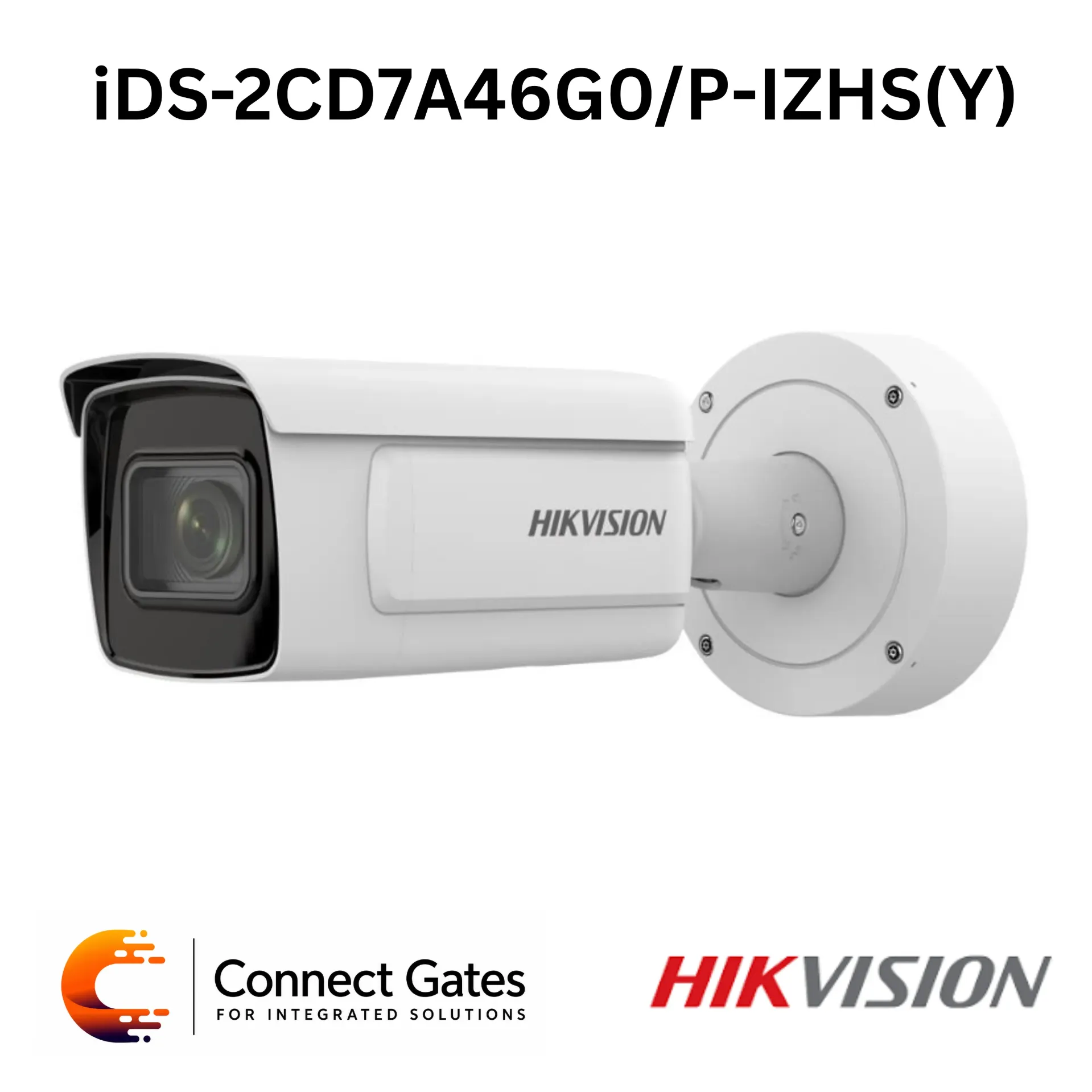

Hikvision iDS-2CD7A46G0/P-IZHSY – 4MP ANPR IR Varifocal Bullet Network Camera with DarkFighter, License Plate Recognition, 140dB WDR, H.265+, 5 Streams, IP67 & IK10
Overview:
• The Hikvision iDS-2CD7A46G0/P-IZHSY is a professional 4MP ANPR IR varifocal bullet network camera designed for traffic monitoring, vehicle detection, perimeter protection, and parking management applications.
• It provides high-quality imaging with 4MP resolution and excellent low-light performance using DarkFighter technology.
• The camera supports License Plate Recognition for vehicles and motorcycles in checkpoint scenarios, with high recognition accuracy under recommended installation and lighting conditions.
• 140dB WDR technology delivers clear images in strong backlight environments, making it suitable for entrances, exits, gates, roads, and high-contrast scenes.
• It supports up to 5 video streams, H.265+ compression, deep learning analytics, alarm integration, audio, RS-485, Wiegand, and onboard storage up to 1TB.
• The camera is built with an aluminum alloy body and is rated IP67 for water and dust resistance and IK10 for vandal protection.
Key Features:
• 4MP High Resolution: Captures detailed video up to 2688 × 1520 resolution.
• ANPR / LPR Function: Supports license plate recognition for vehicles and motorcycles in checkpoint applications.
• DarkFighter Technology: Excellent low-light performance for night and low-illumination scenes.
• 140dB WDR: Clear imaging against strong backlight and high-contrast environments.
• Varifocal Lens Options: Available with 2.8–12mm or 8–32mm lens options for different monitoring distances.
• Long IR Range: IR supplement light up to 50m with 2.8–12mm lens and up to 100m with 8–32mm lens.
• Deep Learning Analytics: Supports line crossing, intrusion, region entrance, and region exiting with human and vehicle target classification.
• Road Traffic Detection: Supports vehicle attribute detection including vehicle type, color, brand, and driving direction.
• Parking Management: Supports parking space status detection, vacant parking space alarm, and parking timeout alarm.
• High Accuracy Performance: License plate recognition rate ≥98%, capture rate ≥99%, and driving direction accuracy ≥98% under recommended conditions.
• Efficient Compression: H.265+, H.265, H.264+, and H.264 support to reduce bandwidth and storage usage.
• 5 Streams Support: Provides flexible streaming options for live view, recording, and remote monitoring.
• Audio & Alarm I/O: Supports audio input/output, alarm input/output, RS-485, and Wiegand interface with -Y model.
• Rugged Outdoor Design: IP67 weather resistance and IK10 vandal protection.
• Advanced Cybersecurity: Supports HTTPS, 802.1X, TLS 1.2/1.3, security audit log, AES encryption, and TPM 2.0.
Technical Specifications:
• Brand: Hikvision
• Model: iDS-2CD7A46G0/P-IZHSY
• Product Type: ANPR IR Varifocal Bullet Network Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Resolution: 4MP
• Minimum Illumination: Color: 0.0005 Lux @ F1.2, AGC ON / B/W: 0.0001 Lux @ F1.2, AGC ON / 0 Lux with IR
• Shutter Time: 1s to 1/100,000s
• Day & Night: IR cut filter with blue glass module to reduce ghost phenomenon
• Lens Options: 2.8–12mm / 8–32mm
• 2.8–12mm FOV: Horizontal 114.5° to 41.8°, Vertical 59.3° to 23.6°, Diagonal 141.1° to 48°
• 8–32mm FOV: Horizontal 42.5° to 15.1°, Vertical 23.3° to 8.64°, Diagonal 49.6° to 17.3°
• Focus: Auto, Semi-auto, Manual
• Iris Type: P-Iris
• Aperture: 2.8–12mm: F1.2 to F2.5 / 8–32mm: F1.7 to F1.73
• IR Supplement Light: IR
• IR Range: 2.8–12mm: up to 50m / 8–32mm: up to 100m
• Smart Supplement Light: Supported
• IR Wavelength: 850nm
• Main Stream: Up to 2688 × 1520 at 25/30fps, and up to 60fps at lower resolutions depending on frequency
• Streams: Main Stream, Sub-stream, Third Stream, Fourth Stream, Fifth Stream
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG depending on stream
• Video Bit Rate: 32Kbps to 8Mbps
• Bit Rate Control: CBR, VBR
• ROI: 4 fixed regions for each stream
• e-PTZ: Supports Patrol and Auto Tracking settings
• Audio Type: Mono sound
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Noise Filtering: Supported
• Network Interface: 1 RJ45 10/100/1000M self-adaptive Ethernet port
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• API: ONVIF Profile S, G, T, M / ISAPI / SDK / ISUP
• Simultaneous Live View: Up to 20 channels
• Users: Up to 32 users with administrator, operator, and user levels
• On-board Storage: microSD / microSDHC / microSDXC card slot, up to 1TB
• Audio Interface: With -Y: 1 input, 1 output, 3.5mm connector
• Alarm Interface: 2 inputs, 2 outputs
• RS-485: With -Y: 1 RS-485, half duplex
• Wiegand: With -Y: 1 Wiegand interface
• Basic Events: Motion detection, video tampering alarm, exception alarm, video quality diagnosis, vibration detection
• Smart Events: Scene change detection, audio exception detection, defocus detection
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
• ANPR Features: License plate recognition, vehicle attribute detection, vehicle and non-vehicle counting, blocklist and allowlist
• Blocklist / Allowlist Capacity: Up to 10,000 records
• LPR Coverage: More than 124 countries/regions across Europe, Middle East, Asia-Pacific, and Africa
• Recognition Accuracy: License plate recognition rate ≥98% under recommended conditions
• Capture Rate: ≥99% under recommended conditions
• Driving Direction Accuracy: ≥98% under recommended conditions
• Vehicle Capture Speed: Front installation up to 120km/h, side installation up to 80km/h
• Parking Management: Distant view up to 40 parking spaces, close view up to 4 parking spaces with LPR
• WDR: 140dB
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
• Image Stabilization: EIS
• Privacy Mask: 8 programmable polygon privacy masks
• Power Supply: 12VDC ±20% or PoE IEEE 802.3at Type 2 Class 4
• Power Consumption: 12VDC max. 14.28W / PoE max. 16.8W
• Material: Aluminum alloy body
• Dimensions: With -Y: Ø140 × 351mm / Without -Y: Ø144 × 347mm
• Weight: Approx. 1950g
• Operating Conditions: -40°C to 60°C, humidity 95% or less
• Storage Conditions: -30°C to 60°C, humidity 95% or less
• Protection Rating: IP67, IK10
• Anti-Corrosion Protection: -Y model supports NEMA 4X moderate protection
• Available Models: iDS-2CD7A46G0/P-IZHSY 2.8–12mm, iDS-2CD7A46G0/P-IZHSY 8–32mm, iDS-2CD7A46G0/P-IZHS 2.8–12mm, iDS-2CD7A46G0/P-IZHS 8–32mm
• Optional Accessories: DS-1475ZJ-SUS Vertical Pole Mount, DS-1476ZJ-SUS Corner Mount, DS-1475ZJ-Y Vertical Pole Mount, DS-1476ZJ-Y Corner Mount, DS-2251ZJ
Applications:
• Road traffic monitoring
• Entrance and exit vehicle control
• License plate recognition systems
• Factory and warehouse gates
• Parking management systems
• Perimeter protection
• City street monitoring
• Industrial facilities
• Logistics and transportation areas
• High-security sites requiring vehicle identification
Connect Gates Recommendation:
• Recommended for professional ANPR projects where accurate license plate recognition, strong night performance, and reliable outdoor operation are required.
• Suitable for factory gates, parking entrances, logistics yards, compounds, and traffic monitoring points.
• For best performance, installation height, vertical angle, horizontal angle, trigger distance, and lighting conditions should be carefully designed according to the site scenario.
