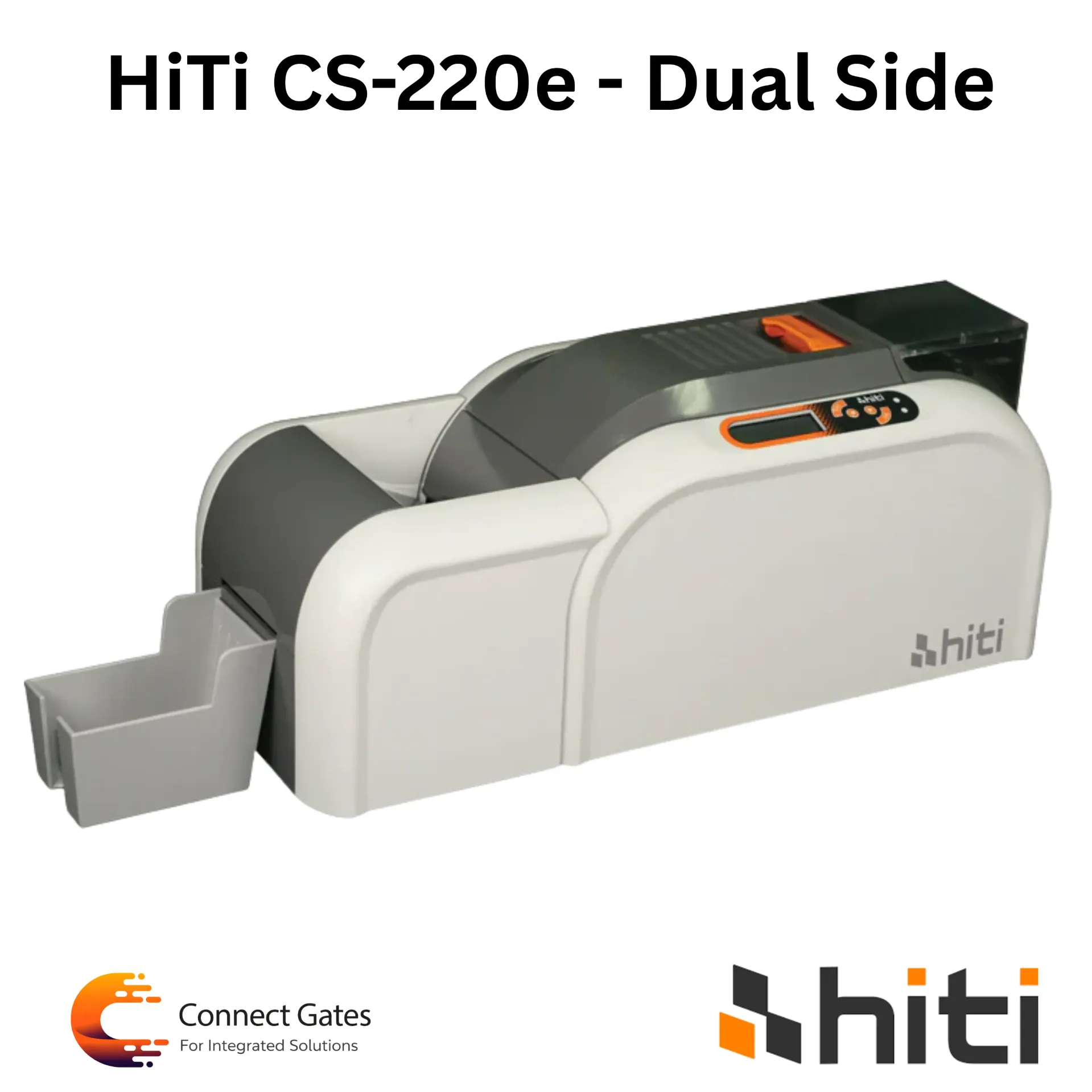

HiTi CS-220e – Dual Side Smart Card Printer
• The HiTi CS-220e Dual Side is a professional dual-sided smart card printer designed for automatic front/back card printing in one seamless process
• Provides edge-to-edge full color printing on both sides for advanced ID and secure credential applications
• Supports transparent card printing and wide smart card compatibility
• Equipped with dual-side flipper module for automatic duplex card printing
• Ideal for enterprises and institutions requiring professional dual-sided card issuance
⚙️ Technical Specifications:
• Type: Dual Side Smart Card Printer
• Printing Method: Dye Sublimation / Thermal Transfer (Direct-to-Card)
• Print Resolution: 300 dpi Continuous Tone
• Printing Mode: Automatic Dual Side Printing
• Dual Side Mechanism: Built-In Flipper Module
• Transparent Card Printing: Supported
• Print Speed:
• Full Color YMCKO: Up to 180 Cards / Hour (Single Side Equivalent)
• Monochrome Resin Black: Up to 800 Cards / Hour
• Input Hopper Capacity: 100 Cards
• Optional High Capacity Hopper: 400 Cards
• Output Hopper Capacity: 50 Cards
• Supported Card Types: PVC / Polyester / Proximity / Mifare / Magnetic Stripe / Smart Cards
• Card Thickness: 0.25 – 1.00 mm
• Accepted Card Size: CR-80 Standard
• Display: Multi-Language LCM Display
• Memory: 64MB RAM + 8MB Flash
• Connectivity: USB 2.0
• Optional Ethernet: Supported
• Operating System: Windows / macOS
• Power Supply: DC 24.5V / 4.08A
• Dimensions: 199 × 207 × 354 mm
• Weight: 4.9 kg
• Country of Origin: Taiwan
🚀 Key Features:
• Automatic Dual Side Printing
• Built-In Flipper Module
• Transparent Card Printing Capability
• Edge-to-Edge Full Card Printing

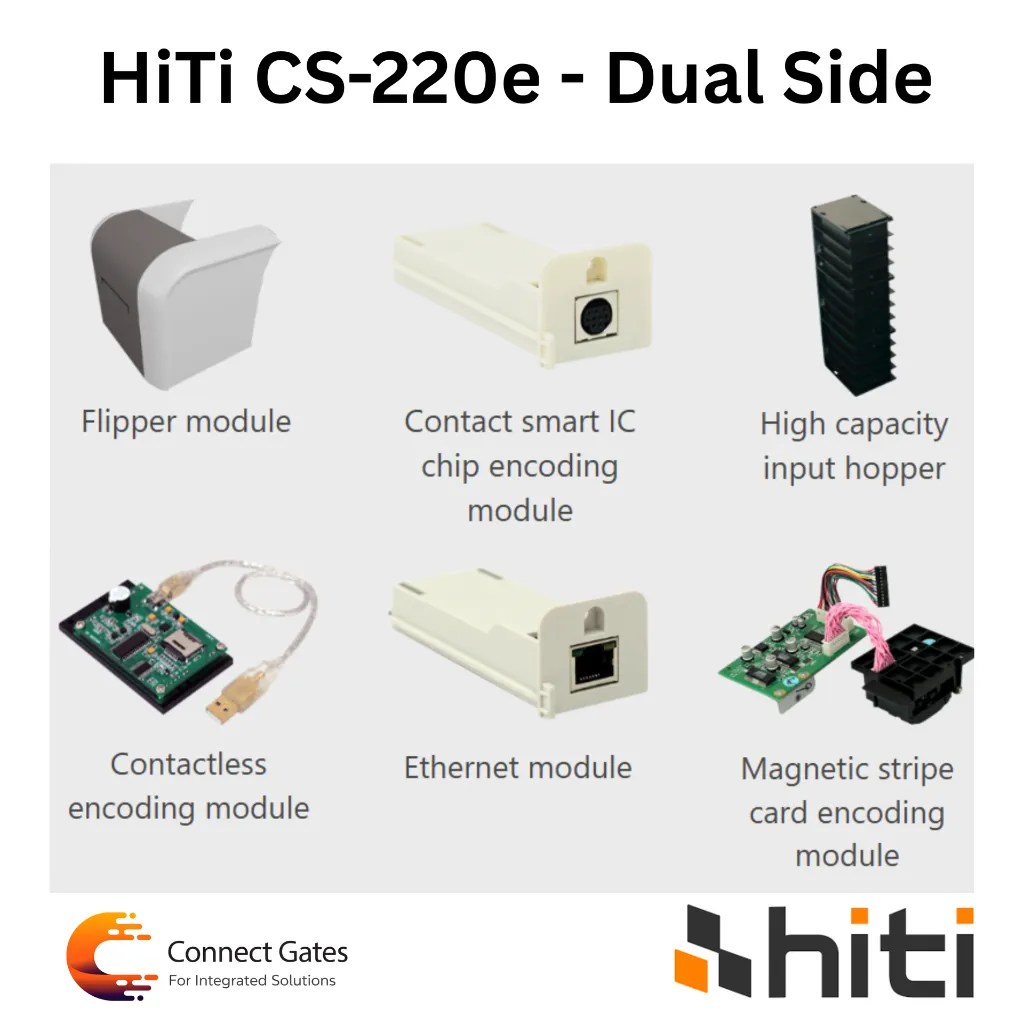

• Supports RFID / IC / Magnetic Encoding Modules
• Upgradeable Modular Design
• Integrated Print Tracking & Maintenance Logs
• Low Noise Compact Design
🎯 Applications:
• Corporate ID Cards
• Government IDs
• University Cards
• Dual-Sided Membership Cards
• Secure Access Credentials
