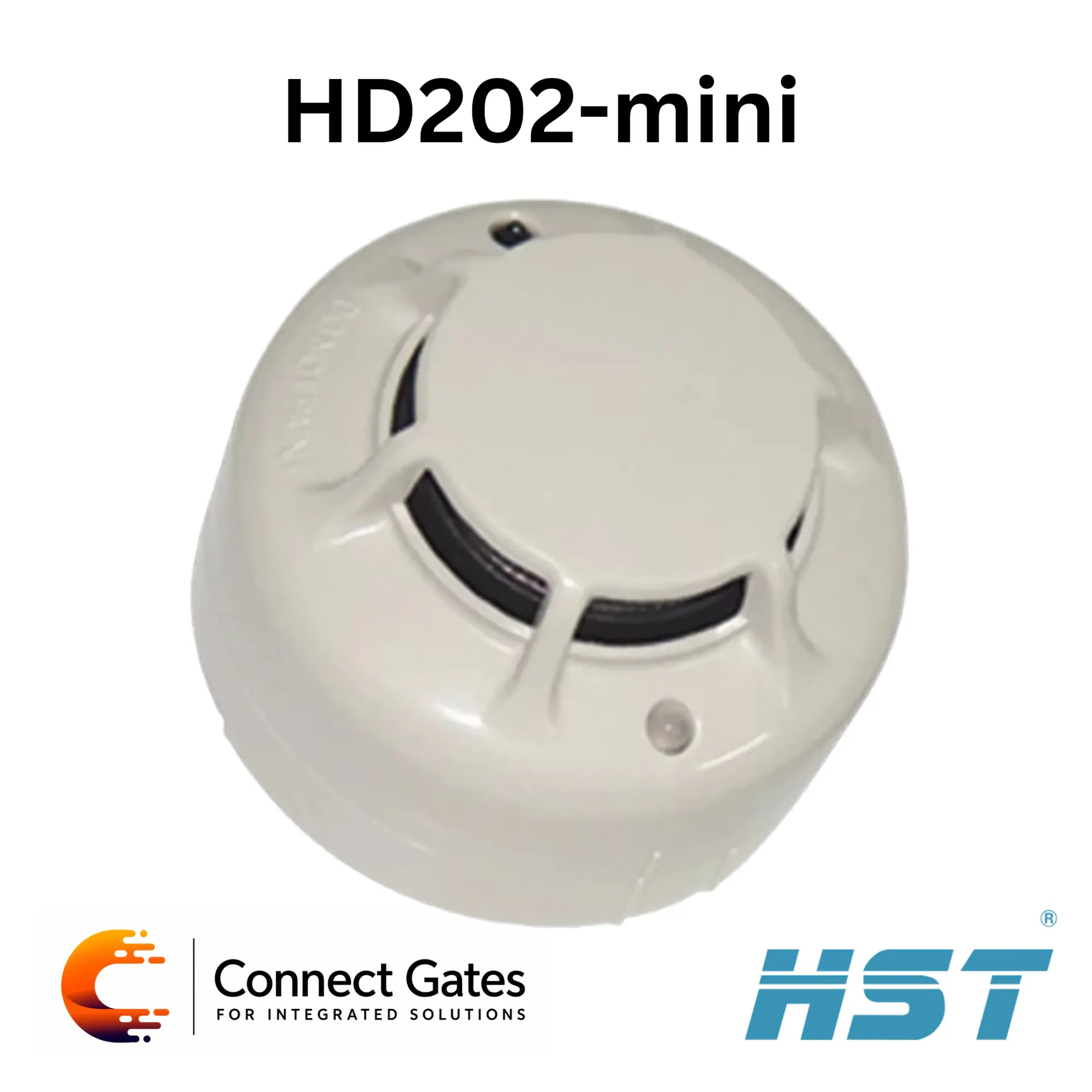

HST HD202-mini – Mini Addressable Smoke Detector
• The HST HD202-mini is a compact addressable smoke detector designed for efficient smoke detection in modern fire alarm systems
• Features advanced sensing technology for early fire detection with stable and reliable performance
• Supports addressable communication protocols for accurate monitoring and system integration
• Equipped with LED indicator for clear status visualization
• Ideal for projects requiring small-size detectors with high performance
Technical Specifications:
• Type: Addressable Smoke Detector
• Model: HD202-mini
• Operating Voltage: 15 ~ 28 VDC
• Standby Current: 650 µA @ 24 VDC (LED flashes every 5 seconds)
• Alarm Current (Max): 5 mA @ 24 VDC
• Smoke Sensitivity: 0.15 – 0.30 dB/m
• Operating Temperature: -10°C ~ 50°C
• Operating Humidity: 10% ~ 93% RH (Non-condensing)
• Dimensions: Ø64 mm × 42 mm (with base)
Key Features:
• Ultra-Compact Design
• High Accuracy Smoke Detection
• Addressable Communication Support
• LED Status Indicator
• Stable Performance Across Environments
• Easy Installation & Maintenance
Applications:
• Office Buildings
• Commercial Facilities
• Hotels & Hospitality
• Residential Projects
• Small to Medium Fire Alarm Systems
Connect Gates Recommendation:
الـ HD202-mini اختيار ممتاز لو عايز كاشف دخان صغير الحجم لكن بإمكانيات قوية، مناسب جدًا للمشاريع اللي محتاجة شكل جمالي مع أداء موثوق في أنظمة الـ Addressable.
لو حابب أعملك مقارنة احترافية بين HD201-mini vs HD202-mini بشكل بيبيع في الموقع (Smart Selling Content) قولّي وأنا أظبطهالك 🔥
