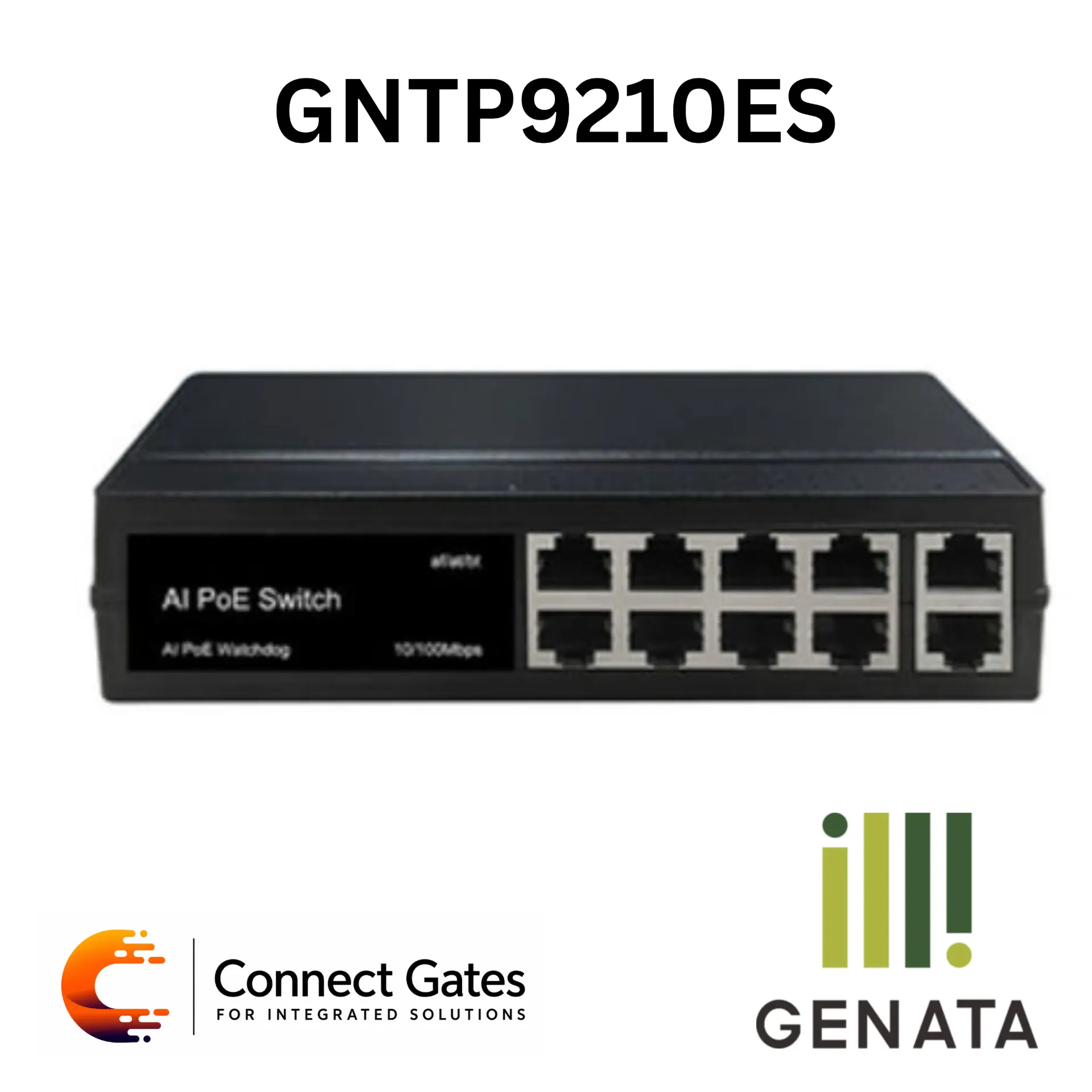

GENATA GNT-P9210ES – 8-Port AI PoE Switch with 2 Fast Ethernet Uplink Ports, 120W PoE Budget, PoE Watchdog, 60W bt PoE, 250m Transmission on Ports 1–2 & 6KV Lightning Protection
Overview:
• The GENATA GNT-P9210ES is an AI PoE Switch designed for CCTV, IP camera, and small-to-medium PoE network applications.
• It provides 8 PoE ports and 2 Fast Ethernet uplink ports, making it suitable for surveillance systems that require stable PoE power with simple uplink connectivity.
• Ports 1 to 6 support 10/100Mbps PoE up to 30W per port, while ports 7 to 8 support 10/100Mbps PoE with bt 60W high-power output.
• The switch supports 120W total PoE power budget, PoE Watchdog on ports 1 to 8, and long-distance transmission where ports 1 to 2 support up to 250m at 10Mbps, while ports 3 to 8 support up to 130m at 100Mbps.
• It includes 6KV lightning protection and 8KV ESD protection, helping improve reliability in CCTV and network installations.
Key Features:
• 8-port AI PoE switch
• 8 PoE ports
• 2 Fast Ethernet uplink ports
• Total 120W power supply
• PoE Watchdog function
• Ports 1–6 support 10/100Mbps PoE up to 30W
• Ports 7–8 support 10/100Mbps bt 60W PoE
• Ports 1–2 support 250m transmission at 10Mbps
• Ports 3–8 support 130m transmission at 100Mbps
• 2.0Gbps switching bandwidth
• 2K MAC address table
• IEEE 802.3af / at / bt PoE support
• 6KV lightning protection
• 8KV ESD protection
• AC 90–240V power input
• Wall mounted and desktop mounted installation
• Suitable for CCTV and IP camera networks
Technical Specifications:
General:
• Product Type: AI PoE Switch
• Brand: GENATA
• Model: GNT-P9210ES
• Application: CCTV, IP Camera, and PoE Network Transmission
• Installation Type: Wall Mounted, Desktop Mounted
• Warranty: Whole Device 1 Year
Ports:
• PoE Ports 1–6: 10/100Mbps PoE Ports, RJ45
• PoE Ports 7–8: 10/100Mbps PoE Ports, RJ45, Support bt 60W High Power
• Uplink Ports LAN 1–2: 10/100Mbps Uplink Ports, RJ45
• Total PoE Ports: 8 Ports
• Total Uplink Ports: 2 Fast Ethernet RJ45 Uplink Ports
Performance Specifications:
• Transmission Rate: 200Mbps Full Duplex; 10 / 100Mbps Half Duplex
• Transmission Distance Ports 1–2: 250m at 10Mbps
• Transmission Distance Ports 3–8: 130m at 100Mbps
• Switching Bandwidth: 2.0Gbps
• Network Latency: ≤16μs, Using 64-Byte Package Size
• MAC Address Table: 2K
• Frame Filter & Transmission Rate 10M Port: Up to 14,800pps
• Frame Filter & Transmission Rate 100M Port: Up to 148,800pps
Network Standards:
• IEEE 802.3i: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• IEEE 802.3x: Flow Control
• IEEE 802.3af / at / bt: Power over Ethernet
PoE and Power Specifications:
• Power Input: AC 90–240V
• Total Power Budget: ≤120W
• PoE Watchdog: Ports 1–8
• PoE Output Ports 1–6: 1/2(+52V), 3/6(GND), ≤30W
• PoE Output Ports 7–8: 1/2/4/5(+53V), 3/6/7/8(GND), Compatible with 1/2(+52V), 3/6(GND), ≤60W
• High Power PoE: bt 60W Supported
Protection Level:
• Lightning Protection: 6KV, Per IEC61000-4-5
• ESD Protection: 8KV, Per IEC61000-4-2
Physical Specifications:
• Dimensions: 163 × 83 × 40mm
• Weight: 0.5kg
Working Environment:
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90%, Non-Condensing
• Storage Humidity: 5% to 90%, Non-Condensing
Certification:
• CE: CE Mark
• FCC: FCC Part 15, Class B
• RoHS: RoHS 2.0
• VCCI: VCCI Class B EN55022 / CISPR 22
Package Content:
• Included Accessories: AC Power Cable, Installation Manual
Applications:
• IP camera networks
• CCTV surveillance systems
• Small and medium PoE camera installations
• Retail shop camera systems
• Small office surveillance networks
• Warehouse surveillance
• Building security systems
• Long-distance PoE transmission up to 250m on ports 1–2
• Sites requiring PoE Watchdog for camera link recovery
• Network installations requiring lightning and ESD protection
• Projects requiring bt 60W high-power PoE devices
• Wall mounted and desktop mounted installations
Connect Gates Recommendation:
• Connect Gates recommends the GENATA GNT-P9210ES for CCTV projects that need a compact 8-port AI PoE switch with 2 Fast Ethernet uplink ports and long-distance PoE support.
• It is suitable for IP camera systems that require 120W PoE budget, PoE Watchdog, and 250m transmission on ports 1–2 for extended camera runs.
• The bt 60W high-power PoE, 2.0Gbps switching bandwidth, 6KV lightning protection, and 8KV ESD protection make it practical for stable surveillance installations.
• For proper installation, Connect Gates recommends checking total PoE power consumption, camera power requirements, uplink bandwidth, cable distance, mounting method, grounding quality, and lightning protection requirements before installation.
