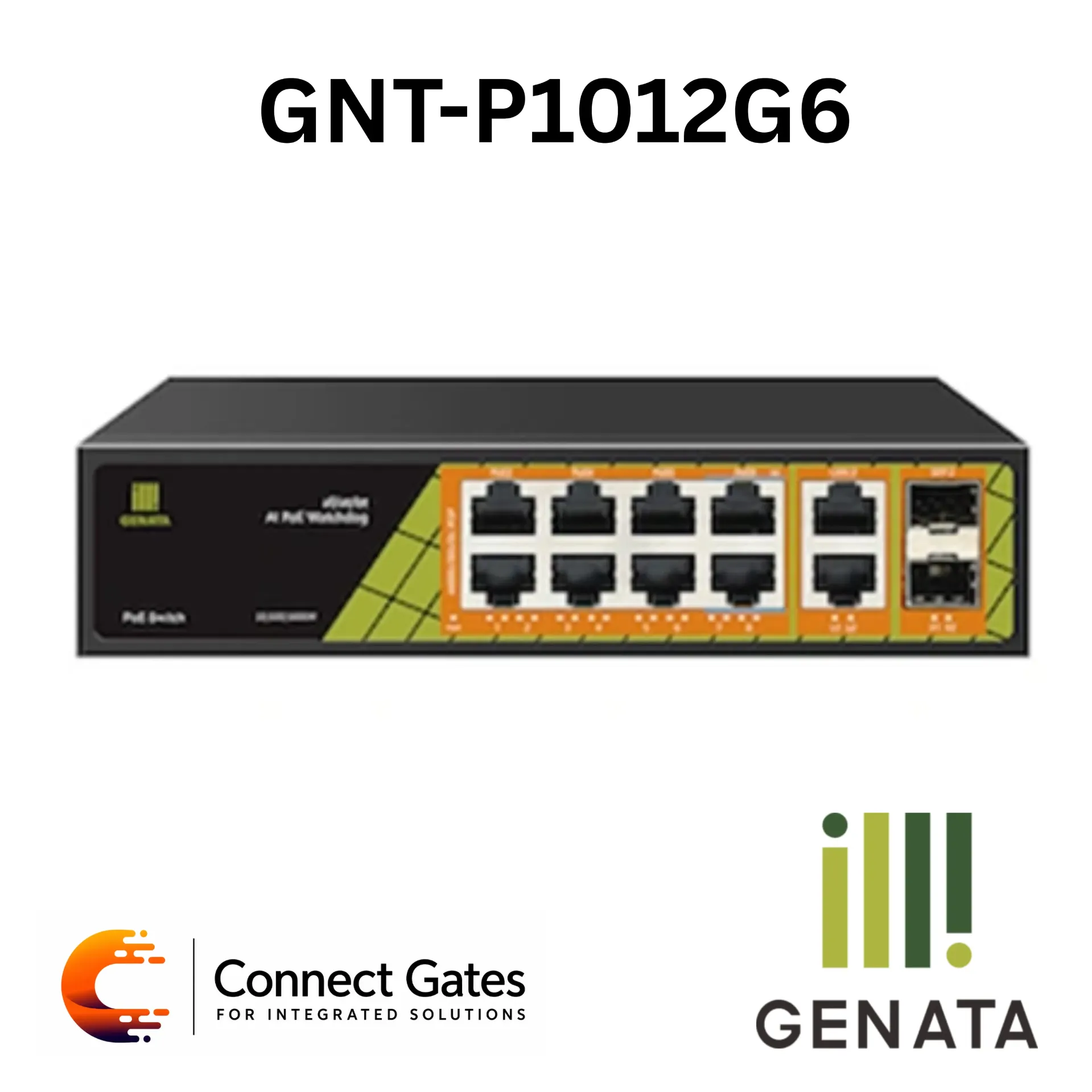

GENATA GNT-P1012G6 – 8-Port Gigabit AI PoE Switch with 2 Gigabit Uplink Ports, 2 Gigabit SFP Ports, 120W PoE Budget, AI Watchdog, 60W bt PoE & 6KV Lightning Protection
Overview:
• The GENTA GNT-P1012G6 is an AI PoE Switch designed for CCTV, IP camera, and professional PoE network applications.
• It provides 8 Gigabit PoE ports, 2 Gigabit uplink ports, and 2 Gigabit SFP ports, making it suitable for small and medium IP camera systems requiring high-speed PoE and fiber uplink support.
• Ports 1 to 6 support 10/100/1000Mbps PoE up to 30W per port, while ports 7 to 8 support 10/100/1000Mbps PoE with bt 60W high-power output.
• The switch supports 120W total PoE power budget, AI Watchdog on ports 1 to 8, and transmission distance up to 130m.
• It includes 6KV lightning protection and 8KV ESD protection, helping improve reliability in CCTV and network installations.
Key Features:
• 8-port Gigabit AI PoE switch
• 8 Gigabit PoE ports
• 2 Gigabit uplink ports
• 2 Gigabit SFP ports
• Total 120W power supply
• AI Watchdog function
• Ports 1–6 support Gigabit PoE up to 30W
• Ports 7–8 support Gigabit bt 60W PoE
• Up to 130m transmission distance
• 24Gbps switching bandwidth
• 8K MAC address table
• IEEE 802.3af / at / bt PoE support
• 6KV lightning protection
• 8KV ESD protection
• AC 90–240V power input
• Wall, rack, and desktop installation
• Suitable for CCTV and IP camera networks
Technical Specifications:
General:
• Product Type: AI PoE Switch
• Brand: GENTA
• Model: GNT-P1012G6
• Application: CCTV, IP Camera, and PoE Network Transmission
• Installation Type: Wall Mounted, Rack Mounted, Desktop Mounted
• Warranty: Whole Device 1 Year
Ports:
• PoE Ports 1–6: 10/100/1000Mbps PoE Ports, RJ45
• PoE Ports 7–8: 10/100/1000Mbps PoE Ports, RJ45, Support bt 60W High Power
• Uplink Ports LAN 1–2: 10/100/1000Mbps Uplink Ports, RJ45
• SFP Ports 1–2: 10/100/1000Mbps SFP Ports
• Total PoE Ports: 8 Ports
• Total Uplink Ports: 2 RJ45 Uplink Ports
• Total SFP Ports: 2 SFP Ports
Performance Specifications:
• Transmission Rate: 2000Mbps Full Duplex; 10 / 100 / 1000Mbps Half Duplex
• Transmission Distance: 130m
• Switching Bandwidth: 24Gbps
• Network Latency: ≤16μs, Using 64-Byte Package Size
• MAC Address Table: 8K
• Frame Filter & Transmission Rate 10M Port: Up to 14,800pps
• Frame Filter & Transmission Rate 100M Port: Up to 148,800pps
• Frame Filter & Transmission Rate 1000M Port: Up to 1,488,000pps
Network Standards:
• IEEE 802.3i: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.3x: Flow Control
• IEEE 802.3af / at / bt: Power over Ethernet
PoE and Power Specifications:
• Power Input: AC 90–240V
• Total Power Budget: ≤120W
• AI Watchdog: Ports 1–8
• PoE Output Ports 1–6: 1/2(+52V), 3/6(GND), ≤30W
• PoE Output Ports 7–8: 1/2/4/5(+53V), 3/6/7/8(GND), Compatible with 1/2(+52V), 3/6(GND), ≤60W
• High Power PoE: bt 60W Supported
Protection Level:
• Lightning Protection: 6KV
• ESD Protection: 8KV Protection Level
Physical Specifications:
• Dimensions: 187 × 139 × 43mm
• Weight: 1.0kg
Working Environment:
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90%, Non-Condensing
• Storage Humidity: 5% to 90%, Non-Condensing
Certification:
• CE: CE Mark
• FCC: FCC Part 15, Class B
• RoHS: RoHS 2.0
Package Content:
• Included Accessories: AC Power Cable, User Manual
Applications:
• IP camera networks
• CCTV surveillance systems
• PoE camera power and data transmission
• Fiber uplink CCTV network applications
• Small office surveillance networks
• Retail shop camera systems
• Small warehouse surveillance
• Building security systems
• Long-distance PoE transmission up to 130m
• Sites requiring AI Watchdog for camera link recovery
• Network installations requiring lightning and ESD protection
• Projects requiring bt 60W high-power PoE devices
• Installations requiring wall, rack, or desktop mounting
Connect Gates Recommendation:
• Connect Gates recommends the GENTA GNT-P1012G6 for small and medium CCTV projects that need an 8-port Gigabit AI PoE switch with dual SFP fiber uplink support.
• It is suitable for IP camera systems that require 8 Gigabit PoE ports, 2 Gigabit uplink ports, 2 Gigabit SFP ports, and bt 60W high-power PoE for selected devices.
• The 120W PoE budget, AI Watchdog function, 24Gbps switching bandwidth, 6KV lightning protection, and 8KV ESD protection make it practical for professional small surveillance networks.
• For proper installation, Connect Gates recommends checking total PoE power consumption, camera power requirements, SFP/fiber uplink design, uplink bandwidth, mounting method, grounding quality, and lightning protection requirements before installation.
