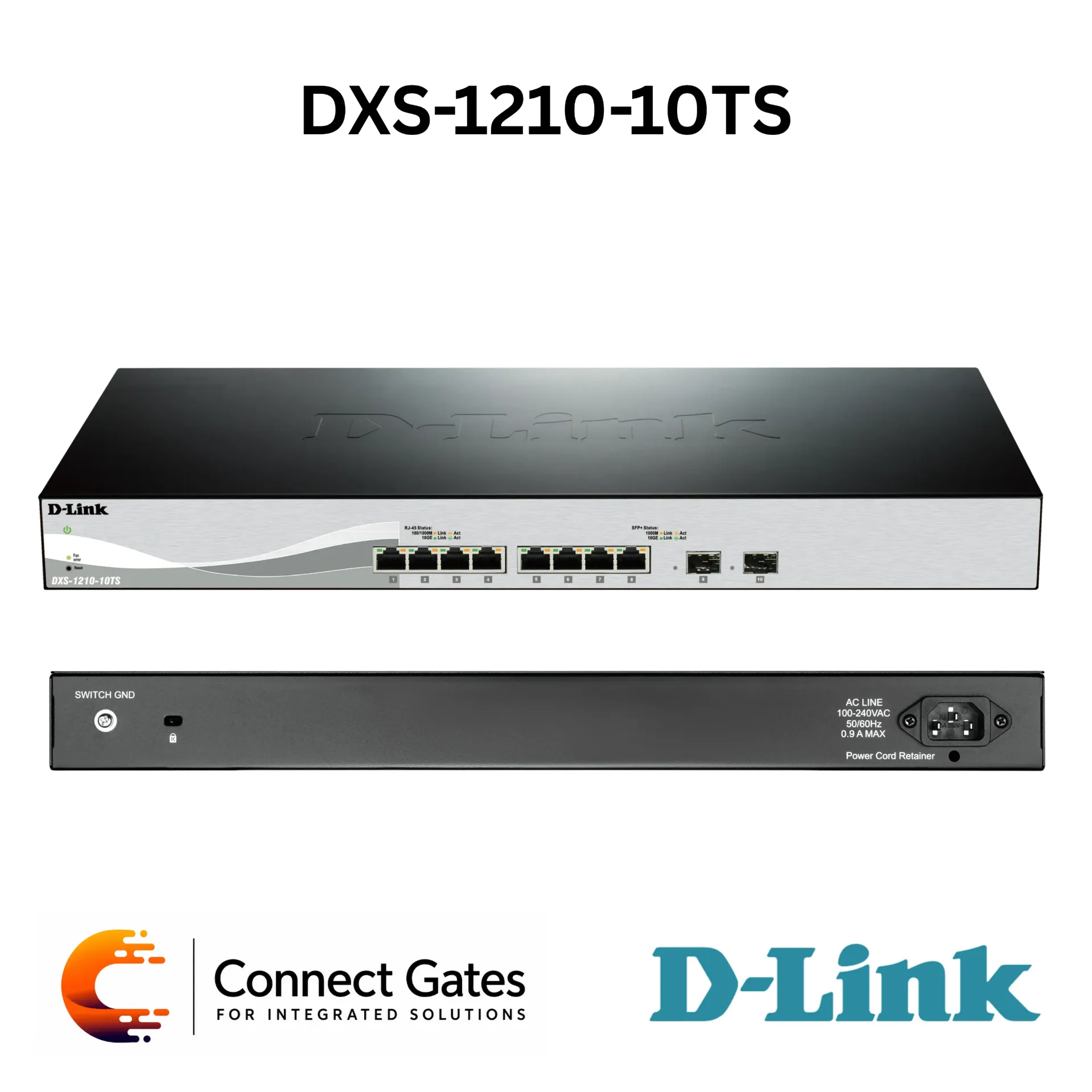

D-Link DXS-1210-10TS – 8-Port 10GBASE-T Smart Managed Switch with 2 × SFP+ Uplink Ports
Overview:
• The D-Link DXS-1210-10TS is a 10 Gigabit Ethernet Smart Managed Switch designed for SMB networks requiring high-speed 10G connectivity.
• It provides 8 × 10GBASE-T RJ45 ports for high-bandwidth copper connections to servers, storage, NAS devices, workstations, and core network devices.
• The switch includes 2 × SFP+ ports for 10G fiber uplinks or SFP+ Direct Attach Cable connections.
• The DXS-1210 Series is suitable for virtualization, cloud services, server-to-server applications, and high-performance business networks.
• It supports Layer 2 and Layer 3 Lite features including VLAN, QoS, Static Routing, Auto Surveillance VLAN, Auto Voice VLAN, STP, LACP, Port Mirroring, Loopback Detection, Cable Diagnostics, IGMP Snooping, MLD Snooping, and ERPS.
• Management and security features include Web GUI, D-Link Network Assistant, CLI through Telnet, SNMP, D-View 7 support, ACL, Safeguard Engine, IP-MAC-Port Binding, Port Security, ARP Spoofing Prevention, and IPv4/IPv6 support.
Key Features:
• 10G Smart Managed Switch: Designed for high-speed business network environments.
• 8 × 10GBASE-T Ports: Provides 10Gbps copper connectivity for servers, NAS, storage, and workstations.
• 2 × SFP+ Uplink Ports: Supports 10G fiber uplinks or SFP+ Direct Attach Cable connections.
• 200Gbps Switching Capacity: Delivers high switching performance for 10G traffic.
• Low-Latency Performance: Suitable for virtualization, cloud services, and server-to-server applications.
• Layer 3 Lite Features: Supports static routing and inter-VLAN routing.
• Auto Surveillance VLAN: Prioritizes video surveillance traffic.
• Auto Voice VLAN: Automatically prioritizes VoIP traffic.
• Advanced Layer 2 Features: Supports STP, RSTP, MSTP, LACP, Port Mirroring, Loopback Detection, IGMP Snooping, MLD Snooping, Jumbo Frame, and ERPS.
• Advanced Security: Supports ACL, IP-MAC-Port Binding, Port Security, Safeguard Engine, DHCP Server Screening, and ARP Spoofing Prevention.
• D-Link Green Technology: Saves power using link status detection, LED shut-off, port shut-off, and system hibernation.
• Smart Fan Design: Internal heat sensors adjust fan speed according to temperature.
Technical Specifications:
• Product Type: 10 Gigabit Ethernet Smart Managed Switch
• Model: DXS-1210-10TS
• Series: DXS-1210 Series
• Ethernet Ports: 8 × 10GBASE-T Ports
• SFP+ Ports: 2 × 10G SFP+ Ports
• Total 10G Interfaces: 10
• Port Standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z
• 10G Copper Cable Support: Cat.6 up to 30m, Cat.6A / Cat.7 up to 100m
• Media Interface Exchange: Auto MDI/MDIX
• Switching Capacity: 200Gbps
• Forwarding Rate: 148.8Mpps
• Transmission Method: Store-and-Forward
• MAC Address Table: Up to 16,000 Entries
• Static MAC Addresses: 1K
• Jumbo Frame: Up to 9KB
• L2 Features: IGMP Snooping, MLD Snooping, LLDP, LLDP-MED, STP, RSTP, MSTP, Flow Control, Port Mirroring, LACP, Loopback Detection, ERPS
• VLAN: 802.1Q VLAN, Port-Based VLAN, 4K VLAN Groups, Voice VLAN, Auto Surveillance VLAN, GVRP, Asymmetric VLAN
• QoS: 802.1p, DSCP, ToS, IPv6 Traffic Class, TCP/UDP Port, VLAN ID, MAC Address, EtherType, IP Address, Protocol Type, IPv6 Flow Label
• Queue Handling: Strict, WRR, DRR, WDRR, Strict + WDRR
• Queues: 8 Queues per Port
• Bandwidth Control: Port-Based Ingress / Egress, 64Kbps Minimum Granularity
• L3 Features: 8 IPv4 / IPv6 Interfaces, ARP, 768 Static ARP, Default Route, IPv6 Neighbor Discovery, Static Route
• Static Routes: Up to 64 IPv4 Entries, Up to 64 IPv6 Entries
• ACL: Up to 50 Access Lists, 256 ACL Rules, VLAN Access Map Support
• Security: Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, IPv6 Snooping, IPv6 Source Guard, DHCPv6 Guard, IPv6 ND Inspection, IPv6 RA Guard, Traffic Segmentation, SSH, SSL, ARP Spoofing Prevention, DoS Attack Prevention, Port Security, Duplicate Address Detection
• AAA: Web-Based Access Control, 802.1X Authentication, RADIUS, TACACS+, Guest VLAN, Compound Authentication, MAC-Based Access Control
• OAM: Cable Diagnostics
• Management: Web GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, SNMP v1/v2c/v3, SNMP Trap, Smart Wizard, LLDP, LLDP-MED, DHCP Relay, System Log, BootP/DHCP Client, SNTP, ICMPv6, IPv4/IPv6 Dual Stack, DHCP Auto Configuration, RMON, Trusted Host, Dual Images, Dual Configurations, DNS Client, Debug Command
• Green Technology: LED Shut-Off, System Hibernation, Port Shut-Off
• Power Input: 100 to 240V AC
• Maximum Power Consumption: 68.67W
• Standby Power Consumption: 31.59W
• Dimensions: 440 × 210 × 44 mm
• Weight: 3.10kg
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• Diagnostic LEDs: Link / Activity / Speed per 10GBASE-T Port, Link / Activity / Speed per 10G SFP+ Port, Power / Fan
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Safety: cUL, CB, CE, CCC, BSMI
• Category: D-Link Managed Switches
Applications:
• 10G server and storage network connections.
• SMB core or aggregation switching.
• Virtualization and cloud service environments.
• High-speed NAS, workstation, and server-to-server connectivity.
• 10G copper backbone connectivity using Cat.6 / Cat.6A / Cat.7 cabling.
• Fiber uplinks using SFP+ modules or Direct Attach Cables.
• CCTV, VoIP, and business networks requiring VLAN, QoS, Static Routing, and advanced security.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DXS-1210-10TS for customers who need a compact 10G managed switch mainly for copper-based 10G connectivity.
• It is suitable for server rooms, storage networks, NAS systems, virtualization environments, and high-performance SMB networks.
• The 8 × 10GBASE-T ports make it practical for connecting 10G servers and workstations over copper cabling.
• The 2 × SFP+ ports provide flexibility for fiber uplinks or short-distance DAC connections.
• This model is recommended when the customer needs cost-effective 10G managed switching with VLAN, QoS, Static Routing, security, and mixed copper/fiber uplink capability.
