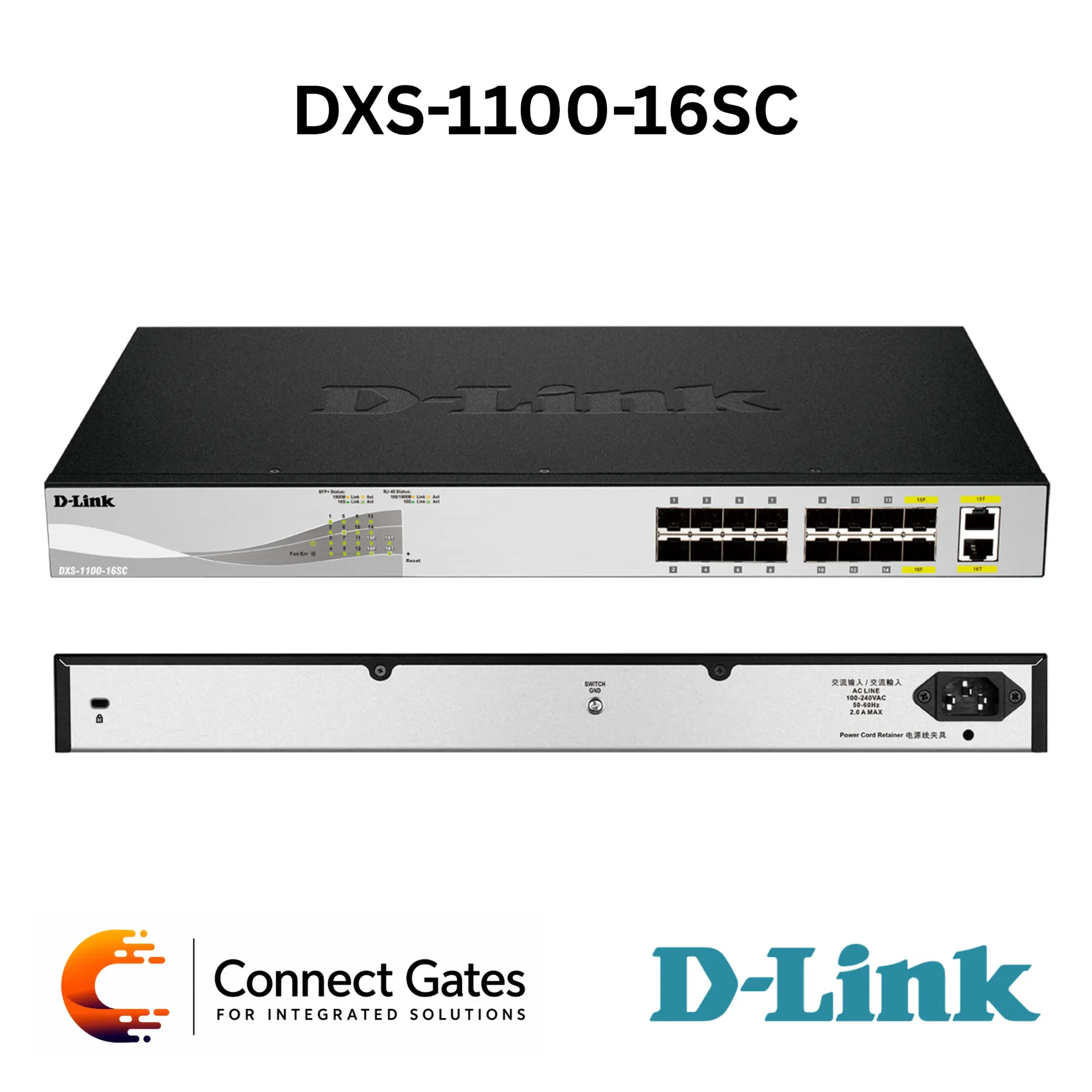

D-Link DXS-1100-16SC – 16-Port 10 Gigabit Smart Managed Switch with 14 × SFP+ Ports, 2 × 10G Combo Ports, 320Gbps Switching Capacity, VLAN & Auto Surveillance VLAN
Overview:
• The D-Link DXS-1100-16SC is a 10 Gigabit Ethernet Smart Managed Switch designed for SMB networks, server rooms, network aggregation, fiber backbone connectivity, and high-speed data networks.
• It provides 14 × SFP+ ports and 2 × 10GBASE-T / SFP+ combo ports, making it suitable for projects that need high-density 10G fiber connectivity with flexible copper/fiber combo ports.
• The switch delivers 320Gbps switching capacity and 238.096Mpps forwarding rate, providing strong performance for high-bandwidth applications.
• It supports smart Layer 2 features including 802.1Q VLAN, Port-Based VLAN, Auto Surveillance VLAN, Voice VLAN, QoS, IGMP Snooping, MLD Snooping, LLDP/LLDP-MED, STP/RSTP, Link Aggregation, Jumbo Frame, and Loopback Detection.
• Management is available through Web-Based GUI, D-Link Network Assistant Utility, SNMP, and TFTP Client, with Dual Images, Dual Configurations, RMON, and D-Link Green power-saving features.
Key Features:
• 16-port 10 Gigabit smart managed switch
• 14 × SFP+ ports
• 2 × 10GBASE-T / SFP+ combo ports
• 320Gbps switching capacity
• 238.096Mpps forwarding rate
• Smart Layer 2 management
• 802.1Q VLAN support
• Port-Based VLAN
• Auto Surveillance VLAN
• Voice VLAN
• QoS support
• IGMP Snooping
• MLD Snooping
• LLDP and LLDP-MED
• STP and RSTP support
• Link Aggregation support
• Jumbo Frame up to 9,216 bytes
• Loopback Detection
• Cable Diagnostics
• D-Link Safeguard Engine
• ARP Spoofing Prevention
• DoS Attack Prevention
• Web GUI and DNA management
• SNMP support
• Dual images and dual configurations
• 2 smart fans
• D-Link Green power saving
Technical Specifications:
General:
• Brand: D-Link
• Model: DXS-1100-16SC
• Product Type: 10 Gigabit Ethernet Smart Managed Switch
• Series: DXS-1100 Series
• Hardware Version: A1
• Size: 17-Inch Rackmount Width, 1U Height
• Number of Ports: 14 × SFP+ Ports + 2 × 10GBASE-T / SFP+ Combo Ports
• Application: Fiber Backbone Networks, Server Rooms, Network Aggregation, Storage Networks, 10G Core Connectivity
Port Standards and Functions:
• Fast Ethernet Standard: IEEE 802.3u 100BASE-TX
• Gigabit Ethernet Standard: IEEE 802.3ab 1000BASE-T
• Energy Efficient Ethernet: IEEE 802.3az Compliance
• 10G Copper Standard: IEEE 802.3an 10GBASE-T 10GbE over Copper
• 10G Fiber Standard: IEEE 802.3ae 10GbE over Fiber
• Fiber Standard: IEEE 802.3z 1000BASE-X
• Flow Control: IEEE 802.3x Flow Control
• Auto MDI/MDIX: Supported for 1000/10GBASE-T
Performance:
• Switching Capacity: 320Gbps
• Maximum Forwarding Rate: 238.096Mpps
• MAC Address Table Size: 16,384 Entries
• Packet Buffer: 2MB
• Flash Memory: 128MB
Power Consumption:
• Power Input: 100 to 240VAC
• Maximum Power Consumption: 60.0W
• Standby Power Consumption: 14.35W
Physical Specifications:
• MTBF: 254,038 Hours
• Acoustics: 48.0dB(A)
• Heat Dissipation: 204.73BTU/hr
• Weight: 2.91kg
• Dimensions: 440 × 250 × 44mm
• Ventilation: 2 × Smart Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0% to 95% Non-Condensing
• Storage Humidity: 0% to 95% Non-Condensing
• EMI: CE, FCC, RCM, VCCI, BSMI, CCC
• Safety: cUL, CB, CE, CCC, BSMI
VLAN Features:
• 802.1Q VLAN: Supported
• Port-Based VLAN: Supported
• VLAN Groups: 128 VLAN Groups
• Configurable VID: 1 to 4094
• Voice VLAN: Supported
• Auto Surveillance VLAN: Supported
• Asymmetric VLAN: Supported
Layer 2 Features:
• MAC Address Table: Up to 16,384 Entries
• Static MAC Address: 512 Entries
• IGMP Snooping: IGMP v1/v2 Snooping
• IGMP Groups: Supports up to 512 IGMP Groups
• Static Multicast Addresses: Supports 512 Static Multicast Addresses
• MLD Snooping: MLD v1 Snooping, MLD v2 Awareness
• MLD Groups: Supports up to 512 MLD Groups
• LLDP: Supported
• LLDP-MED: Supported
• Spanning Tree Protocol: 802.1D STP, 802.1w RSTP
• Flow Control: 802.3x Flow Control
• HOL Blocking Prevention: Supported
• Port Mirroring: One-to-One, Many-to-One, Tx/Rx/Both
• Link Aggregation: 802.1AX / 802.3ad
• Link Aggregation Groups: Maximum 5 Groups, 4 Ports per Group
• Jumbo Frame: Up to 9,216 Bytes
• Loopback Detection: Supported
Quality of Service:
• QoS Classification: 802.1p Priority
• Priority Queue: 802.1p Priority Queue
• Queues: 8 Queues per Port
• Queue Handling: Strict Priority Queue, Weighted Round Robin
• Bandwidth Control: Port-Based Ingress / Egress
• Minimum Granularity: 64Kbps
Layer 3 Features:
• IPv6 Neighbor Discovery: Supported
Security Features:
• Storm Control: Broadcast / Multicast / Unicast Storm Control
• D-Link Safeguard Engine: Supported
• Traffic Segmentation: Supported
• SSL: Supports v1 / v2 / v3
• SSL Support: IPv4 / IPv6
• ARP Spoofing Prevention: Max. 128 Entries
• DoS Attack Prevention: Supported
• Port Security: Up to 64 MAC Addresses per Port
• Duplicate Address Detection: Supported
Operations, Administration and Maintenance:
• Cable Diagnostics: Supported
AAA Features:
• Authentication for Management Access: Supported
Management Features:
• Web-Based GUI: Supported
• D-Link Network Assistant Utility: Supported
• TFTP Client: Supported
• SNMP: v1 / v2c / v3
• SNMP Trap: Supported
• LLDP / LLDP-MED: Supported
• System Log: Supported
• SNTP: Supported
• ICMPv6: Supported
• Dual Images: Supported
• Dual Configurations: Supported
• RMON: v1 / v2
Green Technology:
• Power Saving by Link Status: Supported
• Power Saving by Cable Length: Supported
• LED Shutoff: Supported
• Port Shutoff: Supported
• System Hibernation: Supported
Optional Accessories:
• DEM-CB100S: 10GbE SFP+ 1m Direct Attach Cable
• DEM-CB300S: 10GbE SFP+ 3m Direct Attach Cable
• DEM-CB700S: 10GbE SFP+ 7m Direct Attach Cable
• DEM-431XT: 10GBASE-SR Multi-Mode SFP+ Transceiver
• DEM-432XT: 10GBASE-LR Single-Mode SFP+ Transceiver, 10km
• DEM-433XT: 10GBASE-ER Single-Mode SFP+ Transceiver, 40km
• DEM-434XT: 10GBASE-ZR Single-Mode SFP+ Transceiver, 80km
• DXE-810S: Single Port 10GbE SFP+ PCI Express Adapter
• DXE-810T: Single Port 10GBASE-T RJ-45 PCI Express Adapter
• DXE-820T: Dual Port 10GBASE-T RJ-45 PCI Express Adapter
Applications:
• 10G fiber backbone networks
• Server room switching
• Network aggregation
• Storage network connectivity
• Server-to-server connectivity
• Core or aggregation switching
• High-bandwidth CCTV and data networks
• Fiber-based 10G uplink networks
• Virtualization and cloud service environments
• VLAN-based business network segmentation
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DXS-1100-16SC for projects that require high-density 10G SFP+ fiber connectivity with flexible combo uplink options.
• It is suitable for server rooms, fiber backbone networks, storage networks, and network aggregation where 10G fiber performance is required.
• The combination of 14 × SFP+ ports, 2 combo ports, and 320Gbps switching capacity makes it a strong choice for high-speed core and aggregation layers.
• For proper installation, Connect Gates recommends checking the SFP+ module type, fiber distance, 10G cable type for combo ports, rack cooling, VLAN plan, and required uplink design before deployment.
