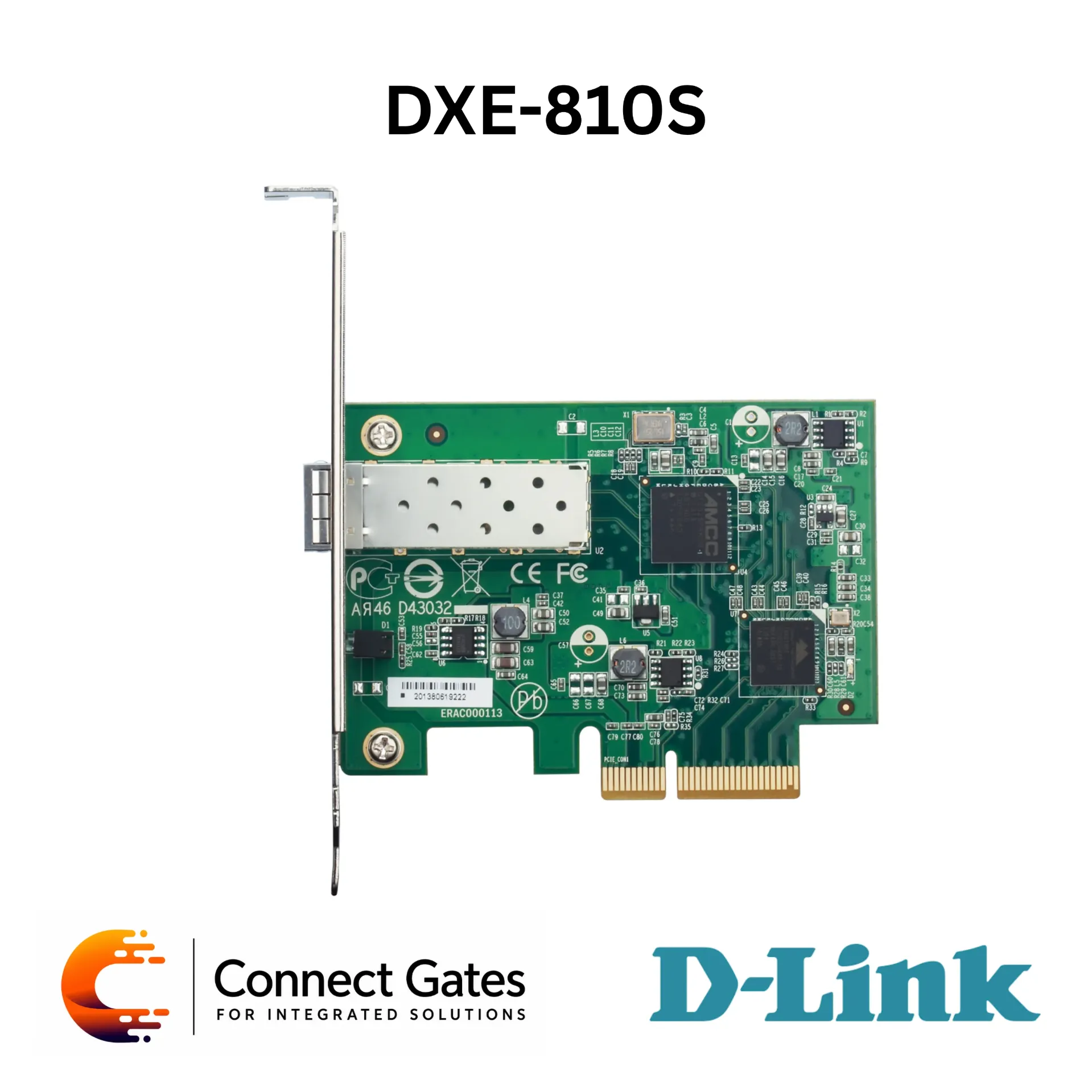

D-Link DXE-810S – Single Port 10GbE SFP+ PCI Express Adapter with PCIe x4 Interface, 20Gbps Full-Duplex Throughput, VLAN, Jumbo Frames & Checksum Offloading
Overview:
• The D-Link DXE-810S is a Single Port 10GbE SFP+ PCI Express Adapter designed for servers, workstations, and high-performance network environments.
• It uses the PCI Express x4 interface and provides 10Gbps full-duplex data transfer, with network operation up to 20Gbps full-duplex throughput.
• The adapter supports SFP+ connectivity, allowing flexible deployment using compatible 10G SFP+ transceivers or direct attach cables depending on the required distance and application.
• It includes advanced enterprise features such as IEEE 802.1Q VLAN tagging, IEEE 802.3x Flow Control, SNMP statistics, 16KB Jumbo Frame support, and TCP / UDP / IP checksum offloading.
• The DXE-810S is suitable for high-speed server connectivity, virtualization, storage networks, backup systems, backbone uplinks, and data-intensive business applications.
Key Features:
• Single Port 10GbE SFP+ PCI Express adapter
• PCI Express x4 2.0 interface
• Supports PCIe x4 / x8 / x16 slots
• 10Gbps full-duplex data transfer
• Up to 20Gbps full-duplex throughput
• SFP+ interface for flexible 10G connectivity
• Transmission distance depends on selected transceiver
• IEEE 802.3ae 10Gbps Ethernet support
• IEEE 802.3aq 10GBASE-LRM support
• IEEE 802.1Q VLAN tagging
• IEEE 802.3x Flow Control
• 16KB Jumbo Frame support
• SNMP statistics support
• TCP / UDP / IP checksum offloading
• Compatible with Windows, Linux, VMware ESXi, and Windows Hyper-V
Technical Specifications:
General:
• Brand: D-Link
• Model: DXE-810S
• Product Type: PCI Express 10 Gigabit Ethernet Adapter
• Description: Single Port 10GbE SFP+ PCI Express Adapter
• Interface Type: PCI Express
• Network Interface: SFP+
• Application: Servers, Workstations, High-Speed LAN, Storage Networks, Virtualization, Backbone Connectivity
Standards:
• VLAN Standard: IEEE 802.1Q VLAN Tagging
• Flow Control: IEEE 802.3x Flow Control
• PCI Express Standard: PCI Express x4 2.0, 5GT/s Compliant
• 10 Gigabit Ethernet Standard: IEEE 802.3ae 10Gbps Ethernet
• 10GBASE-LRM Standard: IEEE 802.3aq 10GBASE-LRM
Interface and Slot:
• Network Port: 1 × 10GbE SFP+ Port
• Interface Slot: PCI Express x4 / x8 / x16 Slot
• Bus Architecture: High-Speed PCI Express
• Adapter Type: Internal PCIe Network Adapter
Data Transfer and Operation:
• Data Transfer Rate: 10Gbps Full Duplex
• Network Operation Mode: Full Duplex up to 20Gbps
• Transmit Distance: Depends on selected SFP+ transceiver or direct attach cable
Advanced Features:
• Jumbo Frame: 16KB Jumbo Frame Support
• VLAN Tagging: IEEE 802.1Q VLAN Tagging
• Flow Control: IEEE 802.3x Flow Control
• Network Management: SNMP Statistics
• Checksum Offloading: TCP, UDP and IP Checksum Offloading
• CPU Load Reduction: Transfers checksum processing from CPU to network adapter
Power Specifications:
• Maximum Power Consumption: 4.47W
• Input Voltage: 3.3V and 12V
Driver Support:
• Windows: Windows 8.1, Windows 8, Windows 7
• Windows Server: Windows Server 2008R2, 2012, and 2012R2
• Virtualization: Windows Hyper-V
• Linux: Linux Kernel 2.6.x – 3.x.x
• VMware: VMware ESXi 4.x – 5.x
LED Indicators:
• Diagnostic LED: Link / Activity
Physical Specifications:
• Dimensions: 108 × 120 × 19mm
Environmental Specifications:
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 10% to 90% Non-Condensing
Certifications:
• Certifications: CE, FCC, C-Tick, BSMI
Compatible Accessories:
• DEM-CB100S: 10GbE SFP+ 1m Direct Attach Cable
• DEM-CB300S: 10GbE SFP+ 3m Direct Attach Cable
• DEM-CB700S: 10GbE SFP+ 7m Direct Attach Cable
• DEM-431XT: 10GBASE-SR SFP+ Transceiver
• DEM-432XT: 10GBASE-LR SFP+ Transceiver 10km
• DEM-433XT: 10GBASE-ER SFP+ Transceiver 40km
• DEM-435XT: 10GBASE-LRM SFP+ Transceiver
• DEM-436XT-BXD: 10GBASE-LR BiDi SFP+ Transceiver 20km, TX 1330nm / RX 1270nm
• DEM-436XT-BXU: 10GBASE-LR BiDi SFP+ Transceiver 20km, TX 1270nm / RX 1330nm
Applications:
• 10Gbps server connectivity
• High-performance workstation networking
• Virtualization host networking
• NAS and storage network access
• Server backbone connections
• Large file transfer environments
• Backup and replication networks
• Data center and enterprise network uplinks
• 10G fiber network expansion using SFP+ modules
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DXE-810S for servers and workstations that require reliable 10 Gigabit SFP+ network connectivity.
• It is suitable for projects that need high-speed access to storage servers, virtualization platforms, backup systems, and backbone fiber links.
• The SFP+ flexibility, PCI Express x4 interface, 20Gbps full-duplex throughput, Jumbo Frame support, and checksum offloading make it practical for professional high-bandwidth environments.
• For proper installation, Connect Gates recommends checking the available PCIe slot, SFP+ module or DAC compatibility, switch 10G SFP+ support, driver support, and required network distance before deployment.
