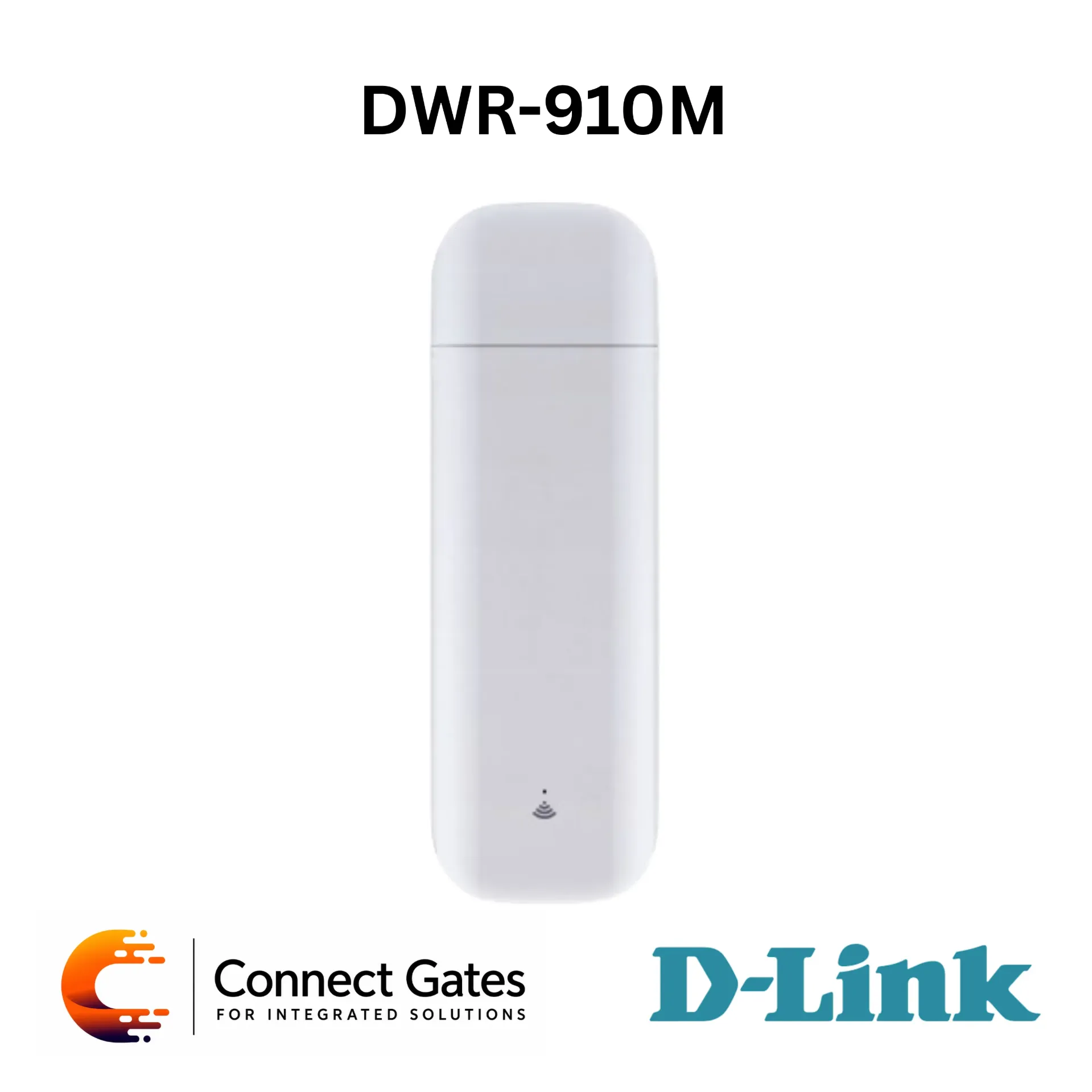

D-Link DWR-910M – 4G LTE USB Wingle with 150Mbps Downlink, Wi-Fi Sharing, SIM Slot, USB 2.0, SMS, Phonebook, IPv6 & 8-Client Support
Overview:
• The D-Link DWR-910M is a 4G LTE USB Wingle designed to share a fast mobile internet connection with multiple PCs, notebooks, smartphones, tablets, and wireless devices.
• It supports 4G LTE Cat4 mobile broadband with download speeds up to 150Mbps and upload speeds up to 50Mbps, depending on network coverage and signal strength.
• The device connects directly through USB 2.0 and can be powered from a PC, laptop, or any powered USB port, making it suitable for travel and mobile internet sharing.
• It creates a Wireless N Wi-Fi hotspot and supports up to 8 connected Wi-Fi clients.
• The DWR-910M includes built-in drivers and software, allowing plug-and-play setup without needing a CD-ROM.
• It supports Web GUI configuration, SMS, phonebook, APN setup, traffic display, statistics, auto channel selection, WPA/WPA2/WEP security, MAC filtering, 3G fallback, IPv6, internal LTE antennas, and internal Wi-Fi antenna.
Key Features:
• 4G LTE USB Wingle.
• USB 2.0 plug for PC, laptop, or powered USB port.
• SIM slot for mobile broadband connection.
• LTE Cat4 downlink speed up to 150Mbps.
• LTE uplink speed up to 50Mbps.
• DC-HSPA+ downlink speed up to 42Mbps.
• DC-HSPA+ uplink speed up to 11Mbps.
• Wireless N Wi-Fi sharing.
• Supports up to 8 connected Wi-Fi clients.
• Compatible with 802.11b/g/n wireless devices.
• 2.4GHz Wi-Fi frequency range.
• Built-in drivers and software.
• Web GUI management.
• SMS and phonebook support.
• APN setup, traffic display, and statistics.
• WPA2-PSK, WPA-PSK, WEP, and MAC filter security.
• Auto channel selection.
• 3G fallback support.
• IPv6 support.
• Internal LTE and Wi-Fi antennas.
• Compact pocket-size design.
Technical Specifications:
• Product Type: 4G LTE USB Wingle
• Brand: D-Link
• Model: DWR-910M
• Mobile Network: 4G LTE / DC-HSPA+ / HSPA / WCDMA / GSM / GPRS / EDGE
• Device Interface: USB 2.0
• SIM Interface: SIM Slot
• LTE Category: 3GPP Rel-9 FDD-LTE Cat4
• Wireless Standard: IEEE 802.11b/g/n
• Wi-Fi Frequency Range: 2.4GHz to 2.4835GHz
• EIRP: 18.7dBm
• LTE FDD Bands: B1 / B3 / B7 / B8 / B20
• LTE TDD Bands: B38 / B40 / B41
• UMTS / HSDPA / HSUPA / HSPA+ Bands: B1 / B8
• UMTS Frequency: 900 / 2100MHz
• GSM Bands: B3 / B8
• LTE Downlink Speed: Up to 150Mbps
• LTE Uplink Speed: Up to 50Mbps
• DC-HSPA+ Downlink Speed: Up to 42Mbps
• DC-HSPA+ Uplink Speed: Up to 11Mbps
• Wi-Fi Access Point: 802.11n up to 75Mbps, 802.11g up to 54Mbps, 802.11b up to 11Mbps
• Connected Clients: Up to 8 Wi-Fi Clients
• Wireless Security: WPA2-PSK Auto TKIP / AES, WPA-PSK Auto TKIP / AES, WEP 64 / 128-bit
• MAC Filter: Supported
• Antenna: Internal LTE Main Antenna, Internal TDS Antenna, Internal Wi-Fi Antenna
• LED Indicators: 3-in-1 LED Indicator, Power LED, Wi-Fi LED, Network LED
• Plug and Play: Built-in Drivers and Software, No CD-ROM Required
• Connection Software Features: Web GUI, Phonebook, SMS, Wizard, APN, Traffic Display and Statistics
• Wi-Fi Features: Auto Channel Selection
• Advanced Features: 3G Fallback, IPv6 Support
• Software Requirements: Windows 8 / 7 / Vista / XP, Mac OS X 10.5 or Higher, Ubuntu Linux 10.04 or Higher
• System Requirements: 128MB RAM or Greater, 50MB Available Disk Space
• Power: 5V DC
• Dimensions: 71 × 22 × 4.2 mm
• Weight: Less than 30g
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -40°C to 70°C
Applications:
• Portable 4G LTE internet sharing during travel.
• Mobile Wi-Fi hotspot for notebooks, smartphones, tablets, and wireless devices.
• Temporary internet access for meetings, cafés, exhibitions, and outdoor work.
• Backup mobile internet for personal or small team use.
• USB-powered internet sharing without fixed broadband.
• Lightweight mobile connectivity for users needing LTE internet in compact USB form.
Connect Gates Recommendation:
• Recommended for customers who need a compact USB-powered 4G LTE device for personal internet sharing.
• Suitable for travel, business trips, temporary internet access, backup connectivity, and light mobile office use.
• Best used when the client needs LTE Cat4 speed, simple USB power, Wi-Fi sharing, up to 8 clients, SMS/phonebook support, 3G fallback, and IPv6 support.
