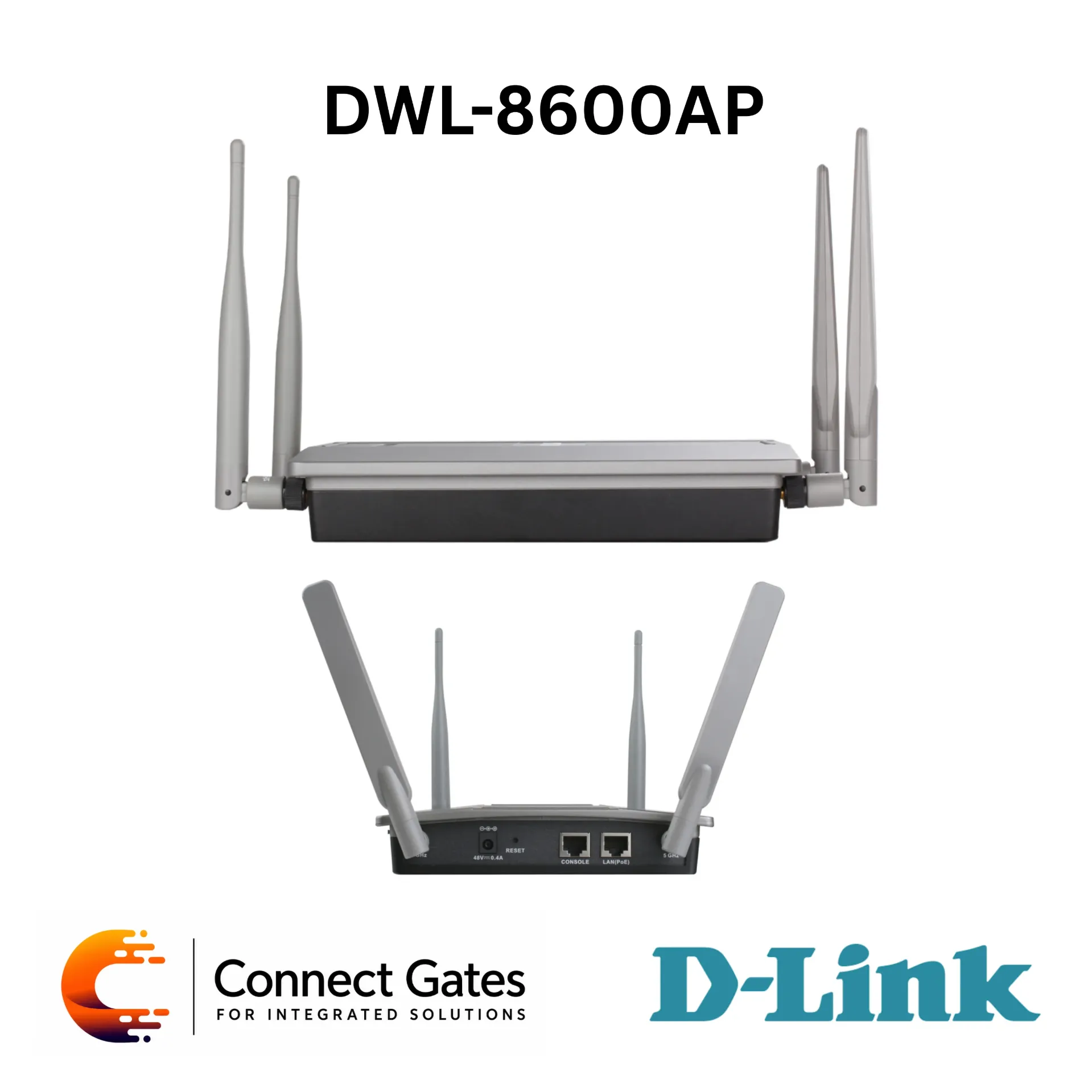

D-Link DWL-8600AP – Dual-Band Unified Wireless Access Point with 2.4GHz / 5GHz Wi-Fi, LAN PoE Port, Console Port, Wall Mount Kit & Unified AP Deployment Support
Overview:
• The D-Link DWL-8600AP is a dual-band wireless access point designed for business wireless network deployment.
• It supports both 2.4GHz and 5GHz wireless operation, with dedicated LED indicators for each wireless band, LAN activity, and power status.
• The access point includes LAN with PoE support, allowing the device to be powered either by the supplied power adapter or through a PoE switch using an Ethernet cable.
• It includes a Console port for management / service access, a reset button, antenna connectors, and wall-mounting accessories for fixed installation.
• The package includes the wireless access point, power adapter, power cable, PoE injector, Ethernet cable, console cable, CD, and wall-mount bracket.
• The uploaded file is mainly an installation manual, so the available technical information is focused on hardware interfaces, package contents, installation method, and basic system requirements.
Key Features:
• Dual-band wireless access point.
• Supports 2.4GHz wireless operation.
• Supports 5GHz wireless operation.
• LAN port with PoE support.
• Can be powered by supplied power adapter.
• Can be powered through PoE switch / PoE connection.
• Console port for management / service access.
• Reset button for system reset.
• Dedicated LED indicators for Power, LAN, 2.4GHz, and 5GHz.
• 5GHz antenna connectors.
• 2.4GHz antenna connectors located on the opposite side of the access point.
• Wall-mount bracket included.
• PoE injector included in the package.
• Ethernet cable and console cable included.
• Suitable for wall-mounted business wireless deployment.
• Compatible with Windows, Macintosh, and Linux-based management computers.
• Browser-based configuration supported through common web browsers.
Technical Specifications:
• Product Type: Dual-Band Wireless Access Point
• Brand: D-Link
• Model: DWL-8600AP
• Wireless Bands: 2.4GHz and 5GHz
• LAN Interface: LAN Port with PoE Support
• Power Options: Power Adapter or PoE Connection
• Console Interface: Console Port
• Reset: System Reset Button
• Antenna Connection: 5GHz Antenna Connectors, 2.4GHz Antenna Connectors on Opposite Side
• LED Indicators: Power, LAN, 2.4GHz, 5GHz
• Included Accessories: Power Adapter, Power Cable, PoE Injector, Ethernet Cable, Console Cable, CD, Wall-Mount Bracket
• Minimum Management Requirements: Computer with Network Card and Windows / Macintosh / Linux-Based Operating System
• Browser Requirement: Internet Explorer 6.0 or Mozilla Firefox 3.0 or Chrome 2.0 or Safari 2.0 and above
• Installation Method: Wall-Mount Installation using Included Bracket
• Document Type: Installation Manual
• Document Version: 1.0
• Manual Date: 2012/05/17
Applications:
• Indoor business wireless network deployment.
• Offices, schools, administration areas, and legacy enterprise wireless environments.
• Wall-mounted access point installation.
• Wireless coverage expansion using 2.4GHz and 5GHz bands.
• PoE installations where local power outlets are not available.
• Legacy D-Link unified wireless environments.
• Replacement or support scenarios for existing DWL-8600AP deployments.
• Projects requiring access point installation with console access and PoE power.
Connect Gates Recommendation:
• Recommended only for legacy D-Link wireless environments where DWL-8600AP is already used or required for compatibility.
• Suitable for replacement, support, or expansion in existing older D-Link unified wireless deployments.
• Best used when the client specifically needs DWL-8600AP compatibility, dual-band operation, PoE support, console access, and wall-mounted installation.
• For new wireless projects, Connect Gates recommends using newer Wi-Fi 6 or Wi-Fi 7 access points such as DAP-X2810, DAP-X2850, DLA-X301, DLA-X541, or DLA-BE36 for higher performance, newer security, and longer-term support.
