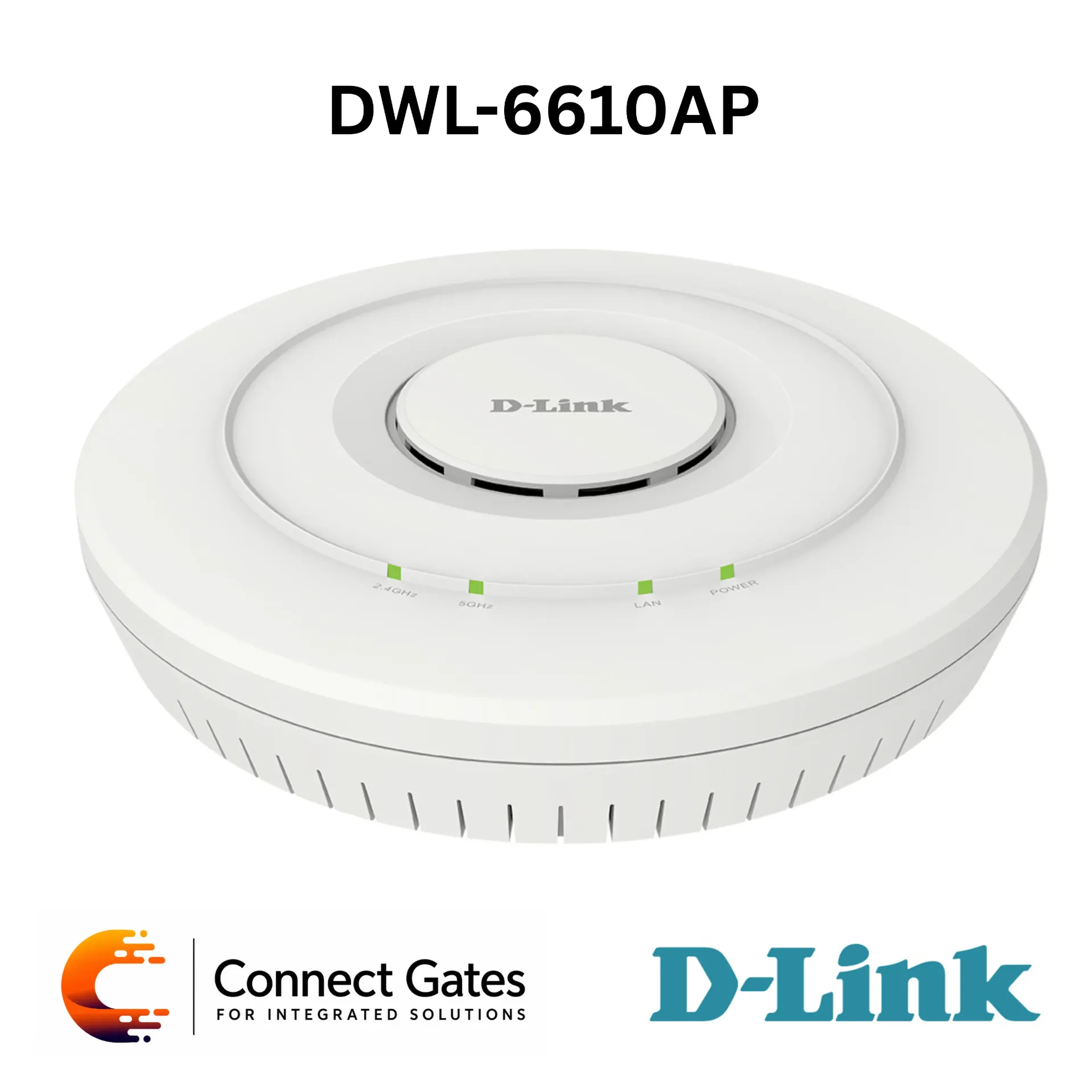

D-Link DWL-6610AP – Dual-Band 802.11n/ac Unified Wireless Access Point with AC1200 Wi-Fi, Gigabit PoE LAN, 32 SSIDs, Band Steering, Airtime Fairness & Unified Controller Support
Overview:
• The D-Link DWL-6610AP is a Dual-Band 802.11n/ac Unified Wireless Access Point designed for small-to-medium business and enterprise wireless deployments.
• It supports dual-band wireless connectivity with combined data rates up to 1167Mbps, including up to 867Mbps on 5GHz using 802.11ac and up to 300Mbps on 2.4GHz using 802.11n.
• The access point uses a 2 × 2 antenna design with internal omnidirectional antennas to deliver stable wireless coverage and support more connected wireless clients.
• When used with D-Link Unified Controllers, the DWL-6610AP can be centrally managed, allowing administrators to deploy, configure, monitor, and manage multiple access points efficiently.
• It also supports self-configuring cluster mode, allowing a small number of access points to share configuration after one unit is configured.
• The DWL-6610AP includes one Gigabit Ethernet PoE LAN port, IEEE 802.3af PoE support, up to 32 SSIDs, 802.1Q VLAN, station isolation, WPA / WPA2 security, MAC filtering, rogue AP detection, band steering, airtime fairness, automatic RF management, WMM QoS, SNMP, Telnet, SSH, HTTP / HTTPS, and serial console management.
Key Features:
• Dual-Band 802.11n/ac Unified Wireless Access Point.
• Supports 2.4GHz 802.11n and 5GHz 802.11ac wireless.
• Combined wireless speed up to 1167Mbps.
• 5GHz speed up to 867Mbps.
• 2.4GHz speed up to 300Mbps.
• One Gigabit Ethernet LAN port.
• IEEE 802.3af Power over Ethernet support.
• 2 × 2 antenna implementation.
• Internal omnidirectional antennas.
• 4dBi antenna gain for 2.4GHz and 5GHz.
• Self-configuring cluster feature.
• Centralized management with D-Link Unified Controllers.
• Up to 32 virtual access points / SSIDs.
• 16 SSIDs per radio.
• Supports 802.1Q VLAN.
• Supports station isolation.
• Supports band steering for efficient traffic management.
• Supports airtime fairness for improved client performance.
• Supports automatic channel selection.
• Supports automatic power adjustment.
• Supports WPA / WPA2 Personal and Enterprise.
• Supports AES and TKIP encryption.
• Supports MAC address filtering.
• Supports rogue and valid AP classification.
• Supports WMM Quality of Service.
• UL2043 certified chassis for plenum-rated SKU.
• Suitable for medium-to-large Wi-Fi networks.
Technical Specifications:
• Product Type: Dual-Band Unified Wireless Access Point
• Brand: D-Link
• Model: DWL-6610AP
• Hardware Revision: B1
• Wireless Standard: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/a/n 5GHz
• Ethernet Interface: 1 × 10/100/1000BASE-T LAN PoE Port
• LAN Port: 1 × Gigabit Ethernet PoE LAN
• Power over Ethernet: IEEE 802.3af PoE
• Console Port: Serial Console RJ45
• Wireless Speed: Up to 1167Mbps Combined
• 2.4GHz Speed: Up to 300Mbps
• 5GHz Speed: Up to 867Mbps
• Operating Frequency: 2400 to 2483.5MHz, 5150 to 5850MHz
• Operating Channels: 1 to 13 Channels for 2.4GHz, 36 to 165 Channels for 5GHz
• Antenna Type: Internal Omnidirectional Antennas
• Antenna Gain: 4dBi for 2.4GHz, 4dBi for 5GHz
• SSID Support: Up to 32 SSIDs, 16 per Radio
• VLAN Support: 802.1Q VLAN
• SSID Security: Station Isolation
• Wireless Security: WPA Personal / Enterprise, AES, TKIP
• Authentication: MAC Address Filtering
• Detection & Prevention: Rogue and Valid AP Classification
• System Management: Web-Based UI HTTP / HTTPS, Serial Console RJ45, SNMP v1/v2c/v3, Telnet / SSH
• Power Supply: 12V / 1.5A External Power Adapter or IEEE 802.3af PoE
• Maximum Power Consumption: 10.2W
• Enclosure: Plastic Bottom Cover, Plastic Top Cover, UL2043 Certified Chassis
• Dimensions: 205 × 39 mm
• Weight: 0.476kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90%, Non-Condensing
• Storage Humidity: 5% to 95%, Non-Condensing
• Certifications: CE, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043
• Order Information: DWL-6610AP Dual-Band 802.11n/ac Unified Wireless Access Point
Applications:
• Indoor business wireless network deployment.
• Small-to-medium business and enterprise Wi-Fi networks.
• Offices, schools, clinics, administration buildings, branches, and corporate environments.
• Managed wireless networks using D-Link Unified Controllers.
• Dual-band Wi-Fi coverage for staff, visitors, and business users.
• Guest and staff Wi-Fi with SSID and VLAN segmentation.
• Secure enterprise Wi-Fi using WPA / WPA2 Enterprise and MAC filtering.
• High client-density environments requiring band steering and airtime fairness.
• AP clustering deployments for easier configuration.
• Ceiling-mounted indoor access point installations.
Connect Gates Recommendation:
• Recommended for legacy D-Link unified wireless environments that need dual-band AC performance with controller-based management.
• Suitable for offices, schools, clinics, enterprise buildings, branches, and indoor business networks that require centralized AP control.
• Best used when the client needs AC1200 dual-band Wi-Fi, Gigabit PoE, up to 32 SSIDs, VLAN segmentation, band steering, airtime fairness, rogue AP detection, and D-Link Unified Controller support.
• For new high-density wireless projects, Connect Gates recommends considering newer Wi-Fi 6 access points such as DAP-X2810 or DAP-X2850 for better capacity, WPA3 security, and longer-term performance.
