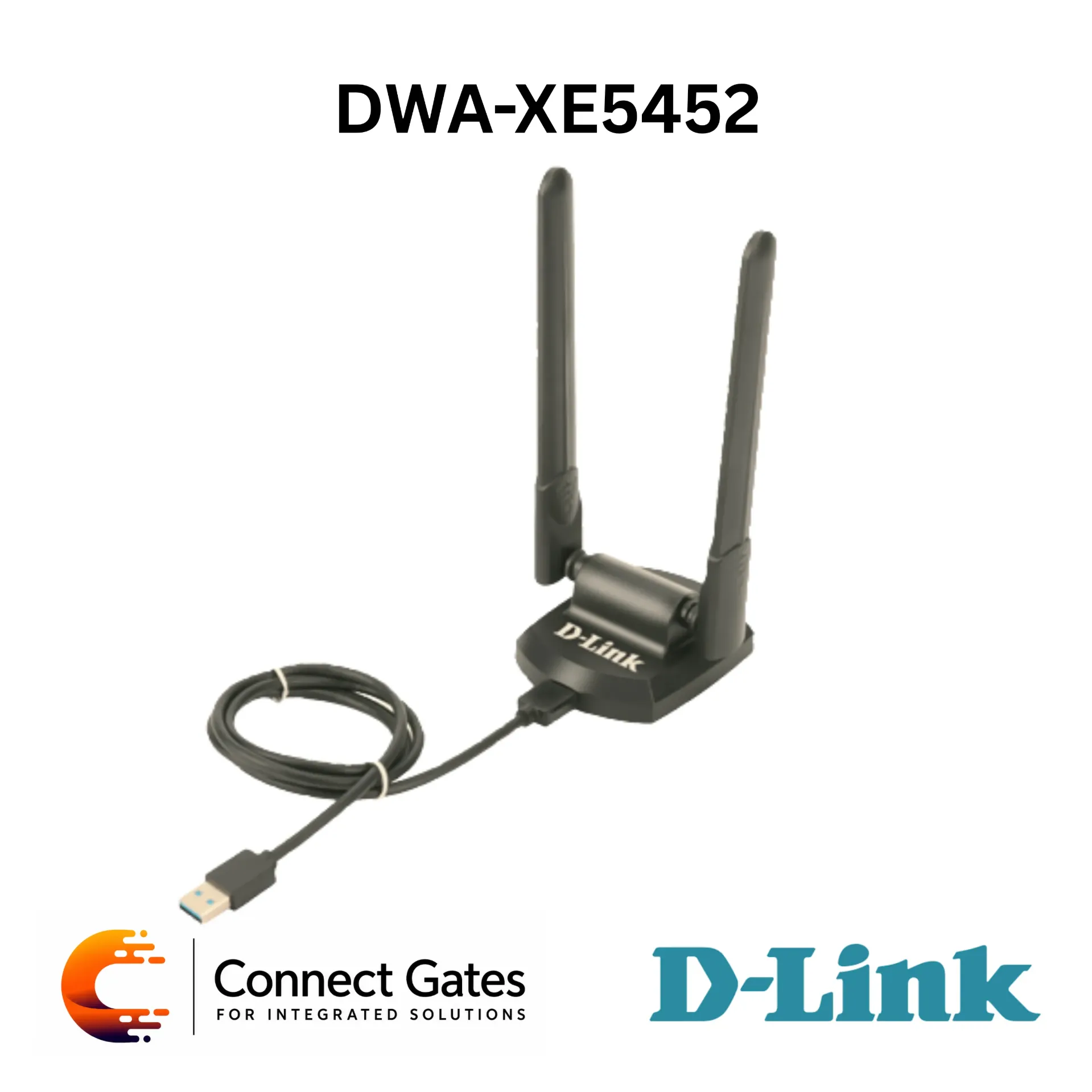

D-Link DWA-XE5452 – AX5400 High Gain Wi-Fi 6E USB Adapter with Tri-Band Wi-Fi, USB 3.0, 2×5dBi External Antennas, Beamforming, WPA3 Security, OFDMA & MU-MIMO
Overview:
• The D-Link DWA-XE5452 is an AX5400 High Gain Wi-Fi 6E USB Adapter designed to upgrade desktop PCs to modern Wi-Fi 6E connectivity.
• It supports tri-band wireless operation across 2.4GHz, 5GHz, and 6GHz bands for flexible connectivity and improved wireless performance.
• The adapter delivers fast Wi-Fi 6E speeds up to 574Mbps on 2.4GHz, 2402Mbps on 5GHz, and 2402Mbps on 6GHz.
• The external high-gain antennas and Beamforming help concentrate Wi-Fi signals toward the router for better reception and more reliable connections from longer distances.
• USB 3.0 support provides faster data transfer performance and helps maximize Wi-Fi 6E throughput for compatible computers.
• The DWA-XE5452 is suitable for lag-free 4K streaming, low-latency gaming, fast downloads, HD streaming, online gaming, and large file downloads.
Key Features:
• AX5400 Wi-Fi 6E Performance: Provides high-speed wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands.
• Tri-Band Wireless: Supports 2.4GHz, 5GHz, and 6GHz for flexible and high-performance connectivity.
• Fast Wireless Speeds: Up to 574Mbps on 2.4GHz, 2402Mbps on 5GHz, and 2402Mbps on 6GHz.
• USB 3.0 Interface: Offers up to 10x faster transfer speeds than USB 2.0 and supports high-throughput performance.
• High-Gain Antennas: Includes two 5dBi external antennas for better signal reception.
• Beamforming Support: Helps direct wireless signals toward the router for improved connection stability.
• WPA3 Security: Supports the latest Wi-Fi encryption standard for stronger wireless protection.
• OFDMA & MU-MIMO: Helps lower latency and improve wireless efficiency in compatible Wi-Fi 6E networks.
• Status LED: Provides device status indication.
Technical Specifications:
• Product Type: AX5400 High Gain Wi-Fi 6E USB Adapter
• Model: DWA-XE5452
• Wireless Technology: Wi-Fi 6E / IEEE 802.11ax
• Interface: USB 3.0
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Wireless Bands: Tri-Band 2.4GHz, 5GHz, and 6GHz
• 2.4GHz Wireless Speed: Up to 574Mbps
• 5GHz Wireless Speed: Up to 2402Mbps
• 6GHz Wireless Speed: Up to 2402Mbps
• Main Chipset: RTL8832CU
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.35GHz
• 2.4GHz EIRP: 18dBm
• 5GHz EIRP: 23dBm
• Antennas: 2 × 5dBi External Antennas
• Wi-Fi Encryption: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
• Channel Bandwidth: 20/40/80/160MHz
• LED Indicator: Status LED
• OS Support: Windows 10 / Windows 11
• Required Interface: USB 3.0
• Dimensions: 205 × 89 × 40 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, RoHS
• Package Contents: AX5400 High Gain Wi-Fi 6E USB Adapter, Quick Installation Guide, 1m USB 3.0 Cable
Applications:
• Upgrading desktop PCs to Wi-Fi 6E connectivity.
• High-speed wireless internet access over 2.4GHz, 5GHz, and 6GHz bands.
• 4K streaming and HD media usage.
• Low-latency online gaming.
• Large file downloads and heavy data transfer.
• Home office and high-performance wireless networking.
• Suitable for users who need stronger reception through external high-gain antennas.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-XE5452 for users who need a premium Wi-Fi upgrade with the latest Wi-Fi 6E technology.
• It is a strong choice for desktop PCs that require high-speed tri-band connectivity, especially where 5GHz and 6GHz performance is important.
• The two 5dBi external antennas and Beamforming make it suitable for users who need better signal reception and more stable wireless connectivity from longer distances.
• WPA3 security, OFDMA, and MU-MIMO make this adapter more suitable for modern routers and high-performance home or office networks.
• This adapter is recommended for 4K streaming, online gaming, large file downloads, home office usage, and customers who want maximum wireless performance through USB 3.0.
