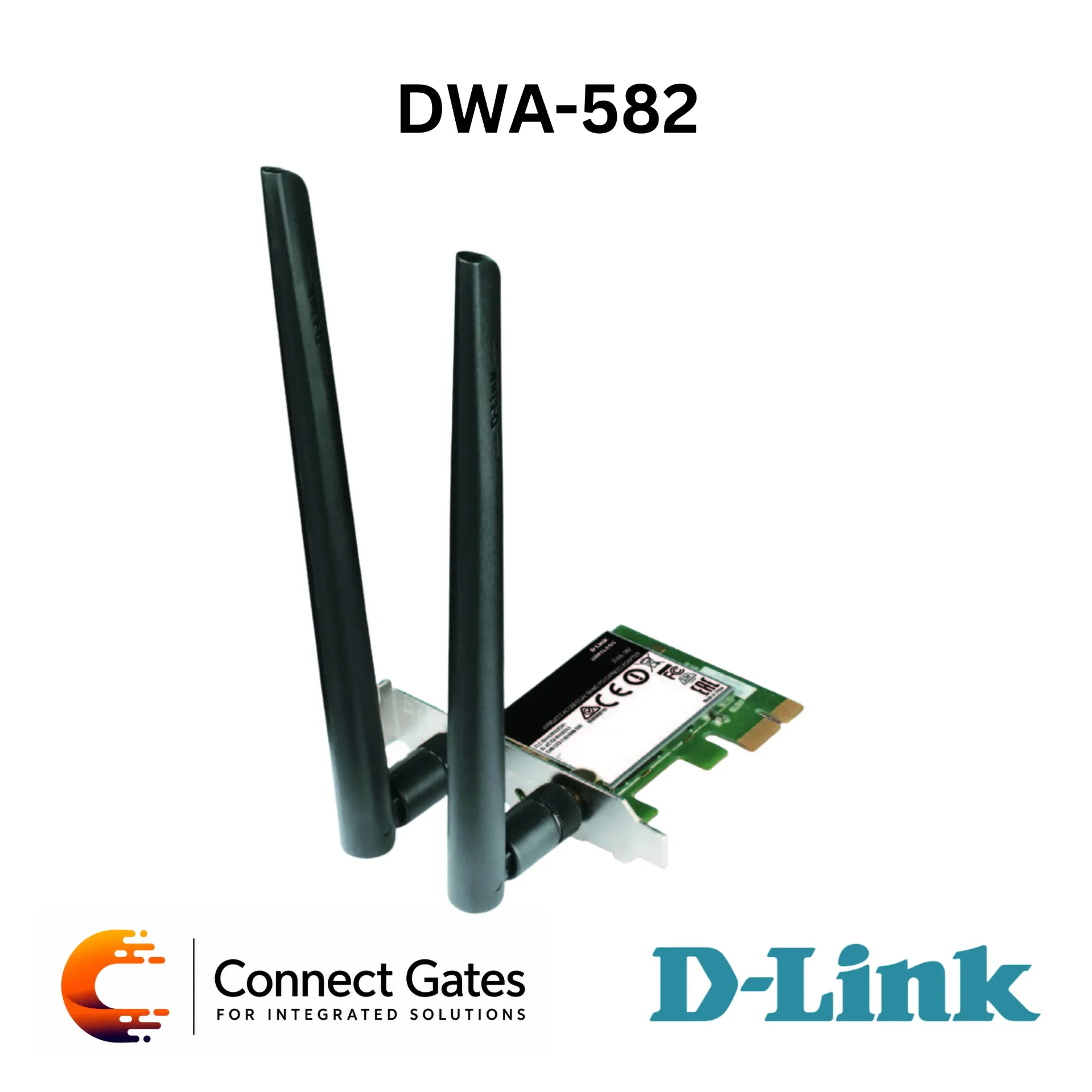

D-Link DWA-582 – Wireless AC1200 Dual Band PCI Express Adapter with 2.4GHz/5GHz Wi-Fi, Two 4dBi External Antennas, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-582 is a Wireless AC1200 Dual Band PCI Express Adapter designed to connect desktop computers to high-speed wireless networks.
• It provides fast Wireless AC connectivity with improved reception and stronger wireless coverage for reliable home and office networking.
• The adapter supports dual-band operation, allowing users to browse and check e-mail on the 2.4GHz band, while using the lower-interference 5GHz band for online gaming, VoIP calls, HD streaming, and high-bandwidth applications.
• PCI Express installation provides a high-bandwidth internal connection with better performance compared to legacy PCI interfaces.
• The DWA-582 can be installed in PCIe x1, x4, x8, or x16 slots, making it compatible with a wide range of desktop PCs.
• It includes two external 4dBi dipole antennas for improved reception and better wireless stability.
Key Features:
• Wireless AC1200 Technology: Provides high-speed dual-band Wireless AC connectivity.
• Dual-Band Wi-Fi: Supports 2.4GHz and 5GHz bands for flexible wireless performance.
• PCI Express Interface: Internal PCIe installation for stable and high-bandwidth connectivity.
• Two External Antennas: Two 4dBi external dipole antennas improve signal reception and coverage.
• WPA/WPA2 Security: Supports secure wireless encryption for protected network access.
• WPS Support: Supports WPS PBC/PIN for easy secure connection setup.
• Backward Compatibility: Compatible with older 802.11n/g/b wireless networks.
• QoS & WMM Support: Helps optimize wireless performance for multimedia and network traffic.
• Activity LED: Includes activity LED for connection/status indication.
Technical Specifications:
• Product Type: Wireless AC Dual Band PCI Express Adapter
• Model: DWA-582
• Wireless Technology: Wireless AC1200
• Interface: PCI Express PCIe
• Wireless Bands: Dual-Band 2.4GHz and 5GHz
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.850GHz
• Antennas: Two 4dBi External Dipole Antennas
• Maximum Wireless Output Power EIRP: 18dBm
• Security: WPA, WPA2, WEP 64/128-bit
• WPS: Supported – PBC/PIN
• LED Indicator: Activity
• Advanced Features: Advanced Quality of Service QoS, WMM, RoHS Compliant
• Operating Voltage: 3.3V DC ±10%
• Power Consumption: Max. 3.3V / 1A
• Dimensions: 121 × 79 × 25 mm
• Weight: 48.8g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 0% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC, C-Tick, NCC, Wi-Fi Certified
• Order Information: DWA-582 – Wireless AC1200 Dual Band PCI Express Adapter
Applications:
• Upgrading desktop PCs to high-speed Wireless AC connectivity.
• Connecting desktop computers to dual-band home or office Wi-Fi networks.
• HD video streaming over the 5GHz wireless band.
• Online gaming and VoIP calls with lower interference.
• Secure access to shared files, photos, music, video, printers, and network storage.
• Suitable for users who need stronger wireless reception than standard USB adapters.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-582 for desktop PC users who need a stable internal wireless upgrade with stronger reception than compact USB adapters.
• It is a strong choice for home offices, gaming PCs, and desktop workstations that require dual-band Wi-Fi performance.
• The PCI Express interface provides a cleaner and more stable installation inside the PC case, while the two external antennas help improve wireless coverage.
• With WPA/WPA2 security, WPS support, QoS, and WMM, the DWA-582 is suitable for browsing, streaming, VoIP calls, online gaming, and daily network usage.
• This adapter is recommended when the customer needs reliable Wireless AC performance for a desktop computer without relying on external USB Wi-Fi dongles.
