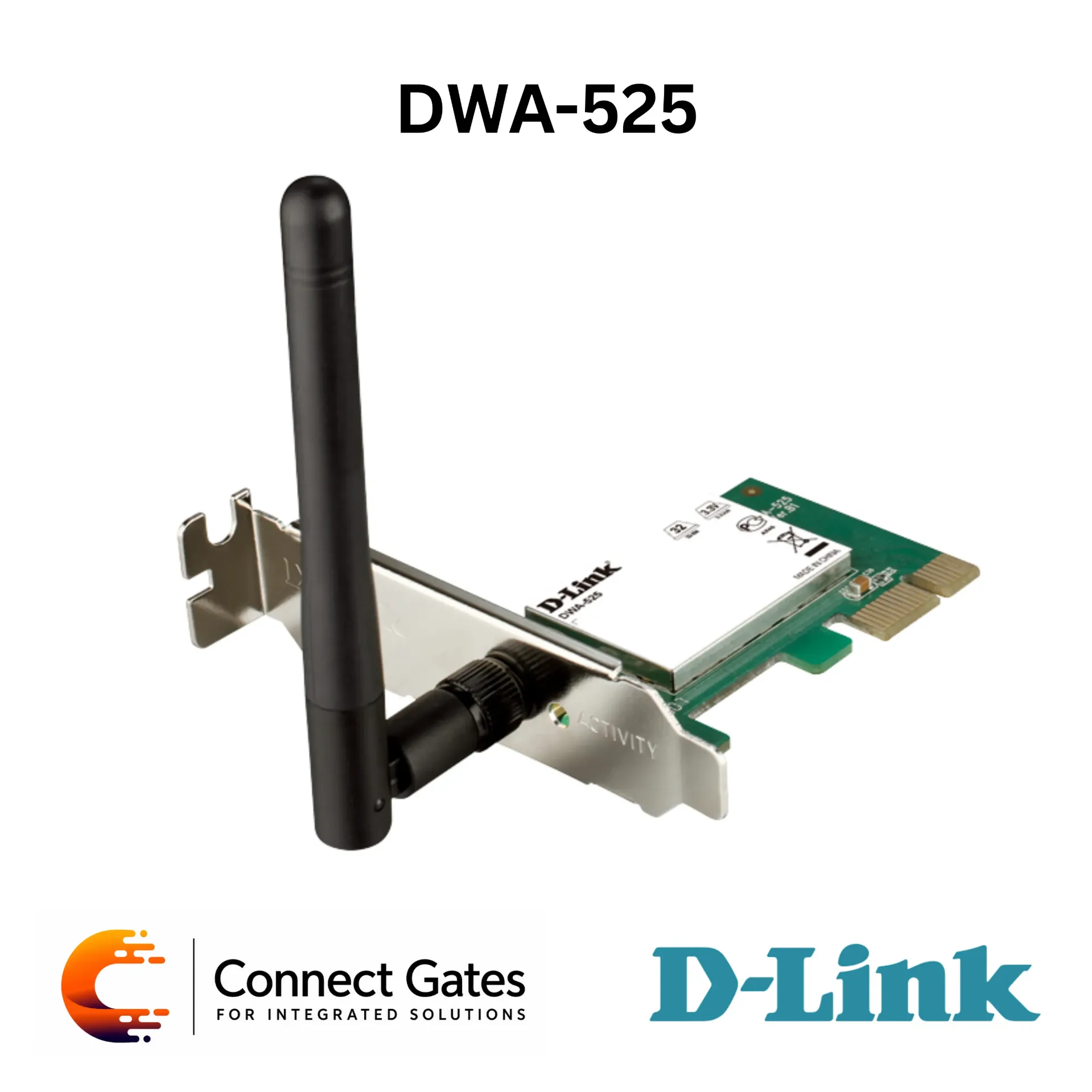

D-Link DWA-525 – Wireless N 150 PCI Desktop Adapter with 2dBi Detachable Antenna, WPS, WPA/WPA2 Security & 2.4GHz Wi-Fi Connectivity
Overview:
• The D-Link DWA-525 is a Wireless N 150 Desktop Adapter designed to connect a desktop PC to a wireless home or small office network.
• It uses Wireless N 150 technology to provide improved wireless speed and range compared with older 802.11g/b wireless standards.
• The adapter supports wireless data rates up to 150Mbps on the 2.4GHz band, making it suitable for internet browsing, email, online chatting, file sharing, and daily network access.
• It is backward compatible with IEEE 802.11g and IEEE 802.11b wireless networks, allowing it to work with a wide range of routers and access points.
• The DWA-525 includes a detachable 2dBi dipole antenna to help provide stable wireless reception for desktop computers.
• Security features include WEP, WPA, WPA2-PSK, WPA/WPA2-EAP, and Wi-Fi Protected Setup WPS for easier secure connection to wireless networks.
• The Quick Setup Wizard helps simplify installation and configuration, while the Link/Activity LED provides basic connection status indication.
• The datasheet network setup diagram on page 2 shows the DWA-525 installed inside a desktop PC and connected wirelessly to a router for internet and network access.
Key Features:
• Wireless N 150 Desktop Adapter
• PCI Desktop Wireless Adapter
• Wireless Speed up to 150Mbps
• IEEE 802.11n Wireless Standard
• Backward Compatible with IEEE 802.11g/b
• 2.4GHz Wireless Connectivity
• Detachable 2dBi Dipole Antenna
• WEP Security Support
• WPA/WPA2-PSK Security Support
• WPA/WPA2-EAP Security Support
• Wi-Fi Protected Setup WPS
• Quick Setup Wizard
• Link/Activity Diagnostic LED
• Compatible with Wi-Fi Certified Devices
• Suitable for Desktop PC Wireless Upgrade
• Supports Windows XP, Windows Vista and Windows 7
• CE, FCC Class B, C-Tick, IC, Wi-Fi and WPS Certified
Technical Specifications:
• Product Type: Wireless N 150 Desktop Adapter
• Brand: D-Link
• Model: DWA-525
• Wireless Standard: IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
• Wireless Speed: Up to 150Mbps
• Frequency Range: 2.4GHz to 2.4835GHz
• Maximum Output Power EIRP: 18.8dBm
• Antenna Type: Detachable 2dBi Dipole Antenna
• Security: 64/128-bit WEP Data Encryption
• WPA Security: WPA/WPA2-PSK, WPA/WPA2-EAP
• WPS Support: Wi-Fi Protected Setup WPS
• Operating Voltage: 5V DC ± 5%
• 802.11n Data Rate: Up to 150Mbps
• 802.11g Data Rates: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54Mbps
• 802.11b Data Rates: 1 / 2 / 5.5 / 11Mbps
• Operating System Support: Windows XP / Vista / Windows 7
• Additional System Support: Windows 2000 SP4, Windows XP SP2, Windows Vista 32/64-bit or higher
• System Requirements: Computer with CD-ROM Drive, 20MB Hard Disk Space, Available USB Port as listed in the datasheet
• Diagnostic LED: Link/Activity
• Dimensions: 122 × 120 × 22 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC Class B, C-Tick, IC, Wi-Fi, WPS Certified
• Ordering Information: DWA-525 – Wireless N 150 Desktop Adapter
Applications:
• Desktop PC wireless network connection
• Home Wi-Fi network access
• Small office wireless connectivity
• Internet browsing
• Email and online chatting
• File sharing across local network
• Accessing shared documents, music, and photos
• Connecting an older desktop computer to Wi-Fi
• Wireless upgrade for PCs without built-in Wi-Fi
• Secure Wi-Fi connection using WPA/WPA2 and WPS
Connect Gates Recommendation:
• Recommended for desktop PCs that need basic wireless connectivity through a PCI wireless adapter.
• Suitable for simple home and small office usage such as browsing, email, chatting, and light network access.
• For higher speed networks, HD streaming, or modern operating systems, Connect Gates recommends checking driver compatibility first and considering newer AC or AX wireless adapters when required.
