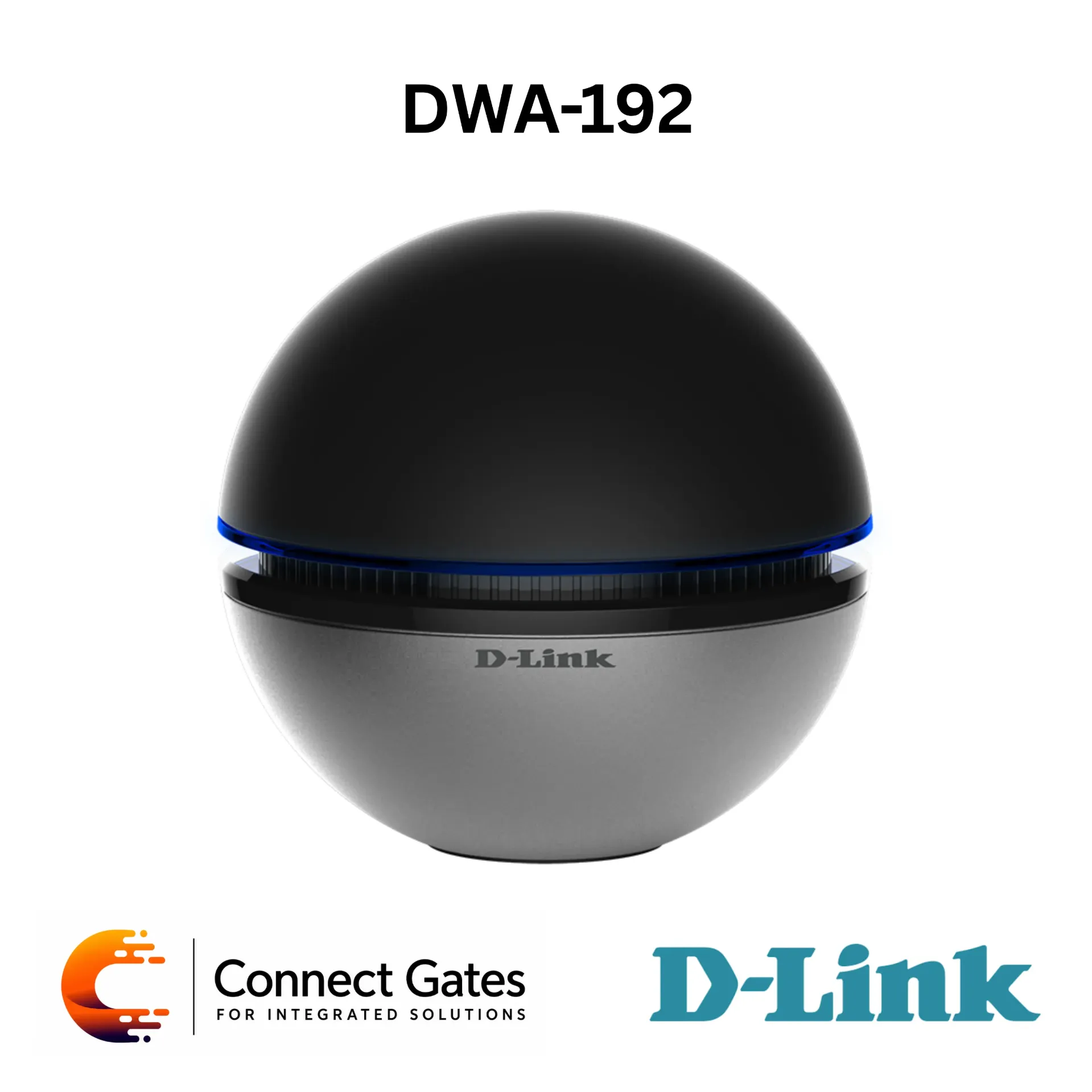

D-Link DWA-192 – AC1900 Wi-Fi USB 3.0 Adapter with Dual-Band Wireless AC, Advanced AC SmartBeam, Integrated Antenna, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-192 is an AC1900 Wi-Fi USB 3.0 Adapter designed to add high-performance Wireless AC connectivity to desktop and notebook computers.
• It delivers combined wireless speeds up to 1900Mbps, with up to 600Mbps on the 2.4GHz band and up to 1300Mbps on the 5GHz band.
• Dual-band Wi-Fi allows users to browse, check e-mail, and use everyday internet services on 2.4GHz, while using the cleaner 5GHz band for HD streaming, online gaming, VoIP calls, and high-bandwidth applications.
• Advanced AC SmartBeam technology helps improve wireless speed and coverage for a stronger and more efficient network connection.
• USB 3.0 support provides maximum throughput for desktop and notebook computers, helping users get the best performance from Wireless AC connectivity.
• The adapter supports WPS push-button setup for quick and secure wireless connection.
Key Features:
• AC1900 Wireless Performance: Provides combined wireless speeds up to 1900Mbps.
• Dual-Band Wi-Fi: Supports 2.4GHz and 5GHz bands for flexible and efficient connectivity.
• Wireless AC Technology: Delivers high-speed 802.11ac connectivity for demanding network usage.
• Advanced AC SmartBeam: Helps enhance wireless speed and coverage.
• USB 3.0 Interface: Provides high-throughput connection to desktop PCs and laptops.
• WPS Push-Button Setup: Allows quick and secure wireless connection setup.
• Integrated Antenna: Built-in antenna design for stable wireless connectivity.
• Wide Compatibility: Backward compatible with IEEE 802.11a/b/g/n wireless standards.
• Status LED: Includes status LED with LED On/Off button.
Technical Specifications:
• Product Type: AC1900 Wi-Fi USB Adapter
• Model: DWA-192
• Wireless Technology: Wireless AC1900
• Interface: Micro-USB 3.0 Port
• Wireless Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
• Wireless Bands: Dual-Band 2.4GHz and 5GHz
• Maximum Wireless Speed: Up to 1900Mbps
• 2.4GHz Speed: Up to 600Mbps
• 5GHz Speed: Up to 1300Mbps
• Antenna Type: Integrated Antenna
• Security: WPA, WPA2
• WPS: Supported – PBC
• Buttons: WPS Button, LED On/Off Button
• LED Indicator: Status LED
• Operating System: Windows 8.1, Windows 8, Windows 7
• Required Interface: Available USB Port
• Operating Voltage: 5.0V DC ±10%
• Current Consumption: 880mA
• Dimensions: 79.92 × 79.92 × 77 mm
• Weight: 167g ±10%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 75°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Certifications: FCC Class B, IC, CE, Wi-Fi Protected Setup, Wi-Fi Certified, RoHS, RCM
• Order Information: DWA-192 – AC1900 Wi-Fi USB 3.0 Adapter
Applications:
• Upgrading desktop PCs and laptops to high-speed Wireless AC connectivity.
• HD video streaming over the 5GHz wireless band.
• Online gaming and VoIP calls with improved wireless performance.
• Dual-band home and office wireless networking.
• High-bandwidth internet access and file sharing.
• Suitable for users who need stronger Wi-Fi speed and performance than standard USB adapters.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-192 for users who need premium wireless performance for desktop PCs or laptops.
• It is a strong choice for high-speed internet usage, HD streaming, online gaming, VoIP calls, and heavy wireless network activity.
• The AC1900 dual-band performance makes it more suitable than basic N150 adapters when speed, stability, and 5GHz connectivity are required.
• USB 3.0 support helps deliver better throughput, especially when connected to a compatible USB 3.0 port.
• This adapter is recommended for home offices, advanced users, and customers who want a high-performance Wi-Fi upgrade without installing an internal network card.
