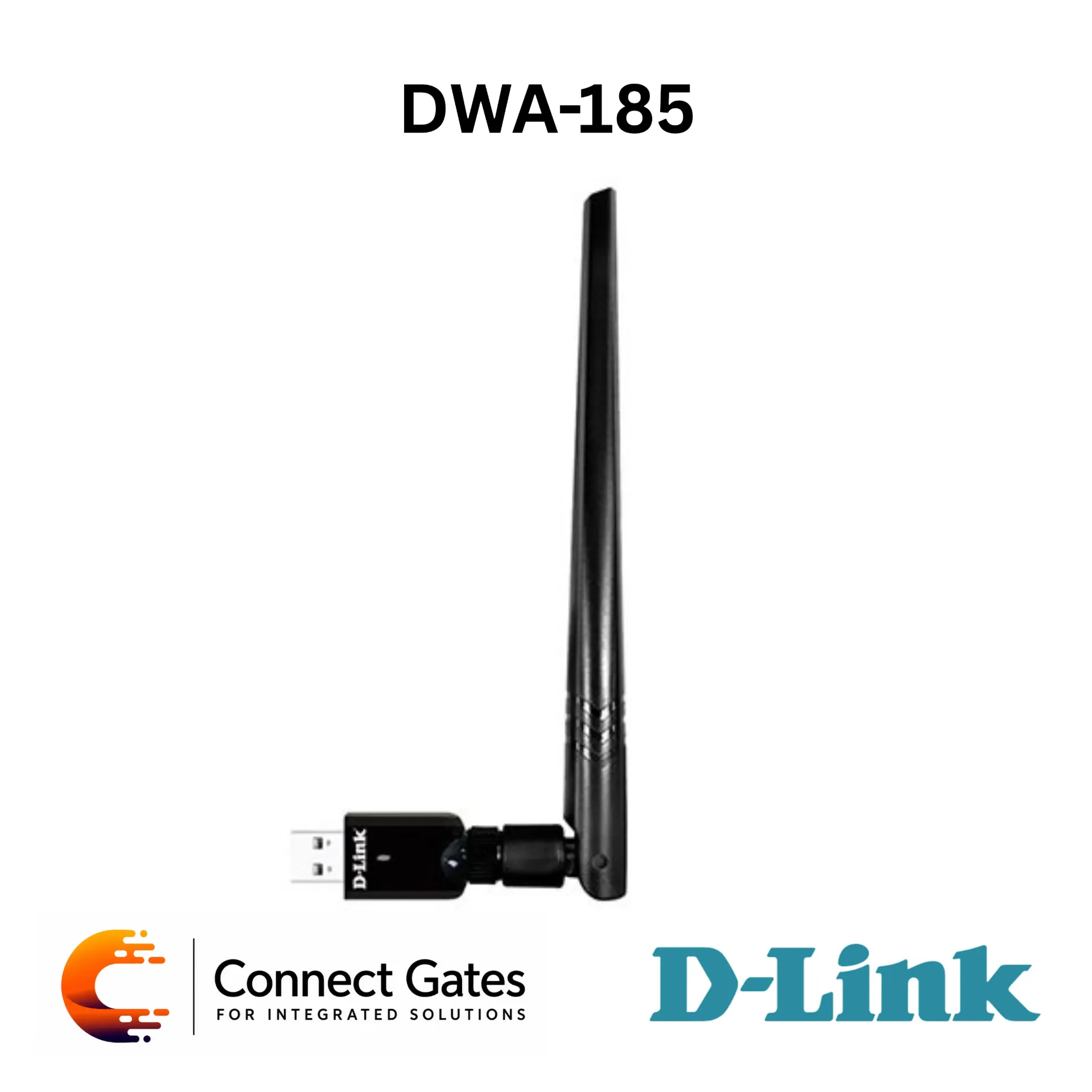

D-Link DWA-185 – Wireless AC1200 Dual Band USB 3.0 Adapter with External Detachable 5dBi Antenna, MU-MIMO, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-185 is a Wireless AC1200 Dual Band USB 3.0 Adapter designed to add high-speed Wireless AC connectivity to desktop and notebook computers.
• It supports AC Wave 2 technology with MU-MIMO, allowing better wireless efficiency when used with compatible Wireless AC Wave 2 routers.
• The adapter provides dual-band connectivity with up to 300Mbps on the 2.4GHz band and up to 867Mbps on the 5GHz band.
• The 2.4GHz band is suitable for browsing, e-mail, and daily internet use, while the 5GHz band is ideal for HD streaming, online gaming, VoIP calls, and high-bandwidth applications.
• The detachable omni-directional 5dBi antenna helps extend wireless range and improve signal reception in hard-to-reach areas.
• USB 3.0 support helps maximize data transfer speeds when connected to compatible devices, especially when using the 5GHz band.
Key Features:
• Wireless AC1200 Wave 2 Technology: Delivers fast dual-band wireless performance with MU-MIMO support.
• MU-MIMO Support: Helps improve overall Wi-Fi throughput when used with compatible Wireless AC Wave 2 routers.
• Dual-Band Wi-Fi: Supports 2.4GHz and 5GHz bands for flexible wireless connectivity.
• USB 3.0 Interface: Maximizes data transfer speeds for compatible PCs and laptops.
• External Detachable Antenna: 5dBi omni-directional antenna improves signal reception and wireless range.
• Integrated Antenna: Includes an additional integrated 2dBi antenna.
• WPA/WPA2 Security: Provides secure wireless network access and data protection.
• WPS Support: Allows easy secure connection setup through the connection utility.
• Backward Compatibility: Compatible with IEEE 802.11a/b/g/n/ac wireless standards.
Technical Specifications:
• Product Type: Wireless AC Dual Band USB Adapter
• Model: DWA-185
• Wireless Technology: Wireless AC1200 Wave 2
• Interface: USB 3.0
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Wireless Bands: Dual-Band 2.4GHz and 5GHz
• 2.4GHz Wireless Speed: Up to 300Mbps
• 5GHz Wireless Speed: Up to 867Mbps
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.30GHz
• Maximum Output Power EIRP: 2.4GHz: 18.9dBm, 5GHz: 21dBm
• Antenna: Detachable Omni-Directional 5dBi Antenna, Integrated 2dBi Antenna
• Wireless Security: Wi-Fi Protected Setup, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK TKIP/AES
• LED Indicator: Status LED
• Operating System: Windows 7/8/10, Linux, Mac OS
• Required Interface: USB Port
• Wireless Speed: IEEE 802.11a up to 54Mbps, IEEE 802.11b up to 11Mbps, IEEE 802.11g up to 54Mbps, IEEE 802.11n from 6.5 to 300Mbps, IEEE 802.11ac from 58.5 to 867Mbps
• Dimensions: 47 × 20.5 × 12 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Order Information: DWA-185 – Wireless AC1200 Dual Band USB 3.0 Adapter with External Detachable Antenna
Applications:
• Upgrading desktop PCs and laptops to Wireless AC1200 dual-band connectivity.
• Improving Wi-Fi coverage in areas with weak wireless signal.
• HD video streaming over the 5GHz band.
• Online gaming, VoIP calls, and high-bandwidth internet usage.
• Daily browsing, e-mail, chatting, and file sharing.
• Suitable for home users, small offices, and users who need stronger Wi-Fi reception with USB 3.0 performance.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-185 for users who need a powerful USB Wi-Fi adapter with stronger range than compact wireless dongles.
• It is a strong choice for desktop PCs and laptops that require AC1200 dual-band performance with better signal reception through the detachable 5dBi antenna.
• MU-MIMO support makes it more suitable for modern Wireless AC Wave 2 networks, especially when multiple compatible devices are connected.
• USB 3.0 support helps users get better performance from high-speed Wireless AC connectivity compared to USB 2.0 adapters.
• This adapter is recommended for customers who need reliable wireless coverage, 5GHz performance, streaming, gaming, VoIP calls, and general high-speed network access.
